Axis Camera Station S22 Appliance Series - Rear side components

AXISCameraStationS22ApplianceSeries
Productoverview

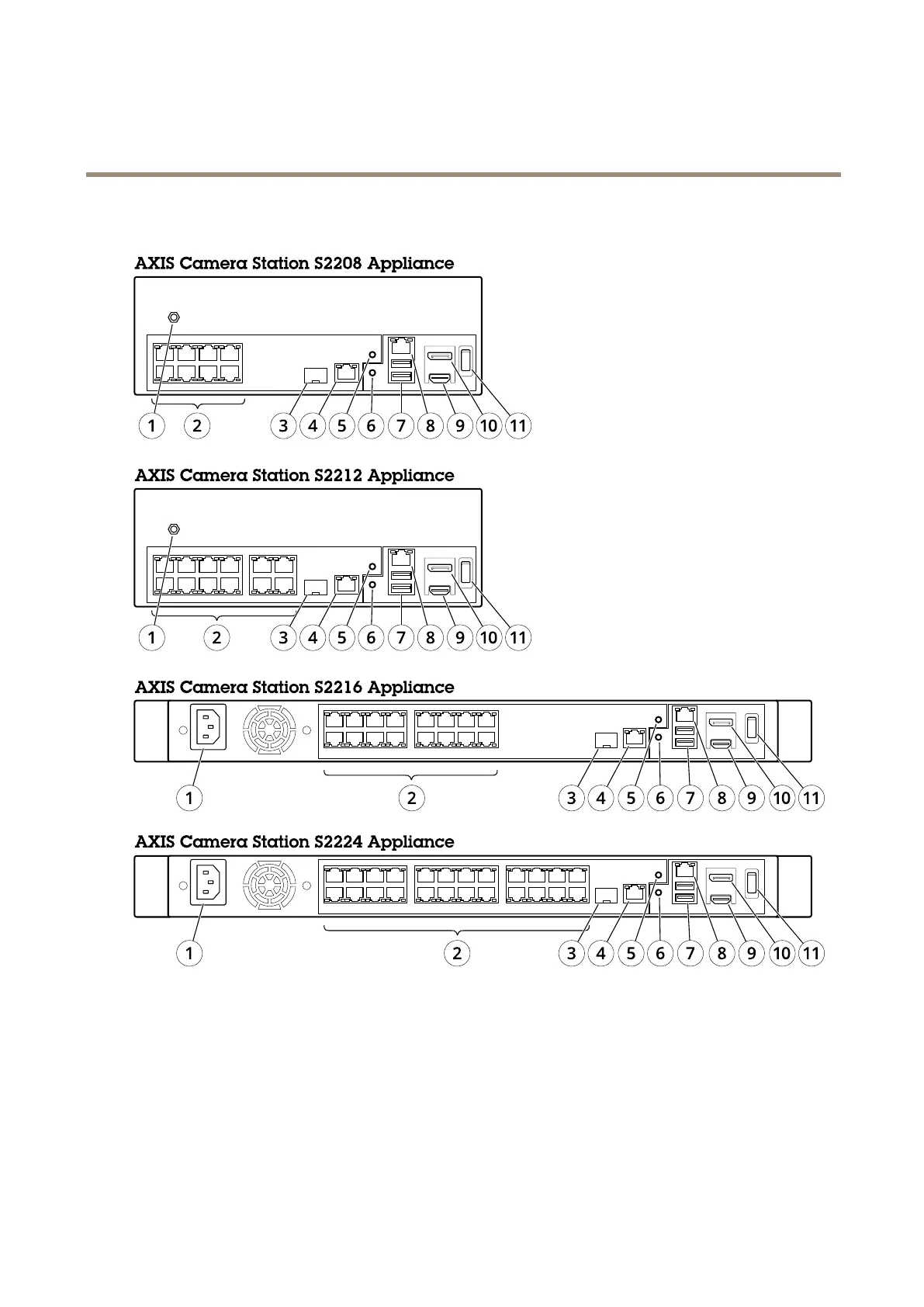

Rearside
1 3 5 7
2 4 6 8
1 3 5 7
2 4 6 8
9 11 13 15
10 12 14 16
1 3 5 7
2 4 6 8
9 11
10 12
1 3 5 7
2 4 6 8
9 11 13 15
10 12 14 16
17 19 21 23
18 20 22 24
1
Powerconnector
2
PoEports
3
Switchuplink,SFP
4
Switchuplink,RJ45
5
Switchresetbutton
6
Serverresetbutton
7
USB2.0x2
8
Servernetwork,RJ45
9
HDMIport
10
Displayport
11
Powerbutton
