AXISM7016VideoEncoder

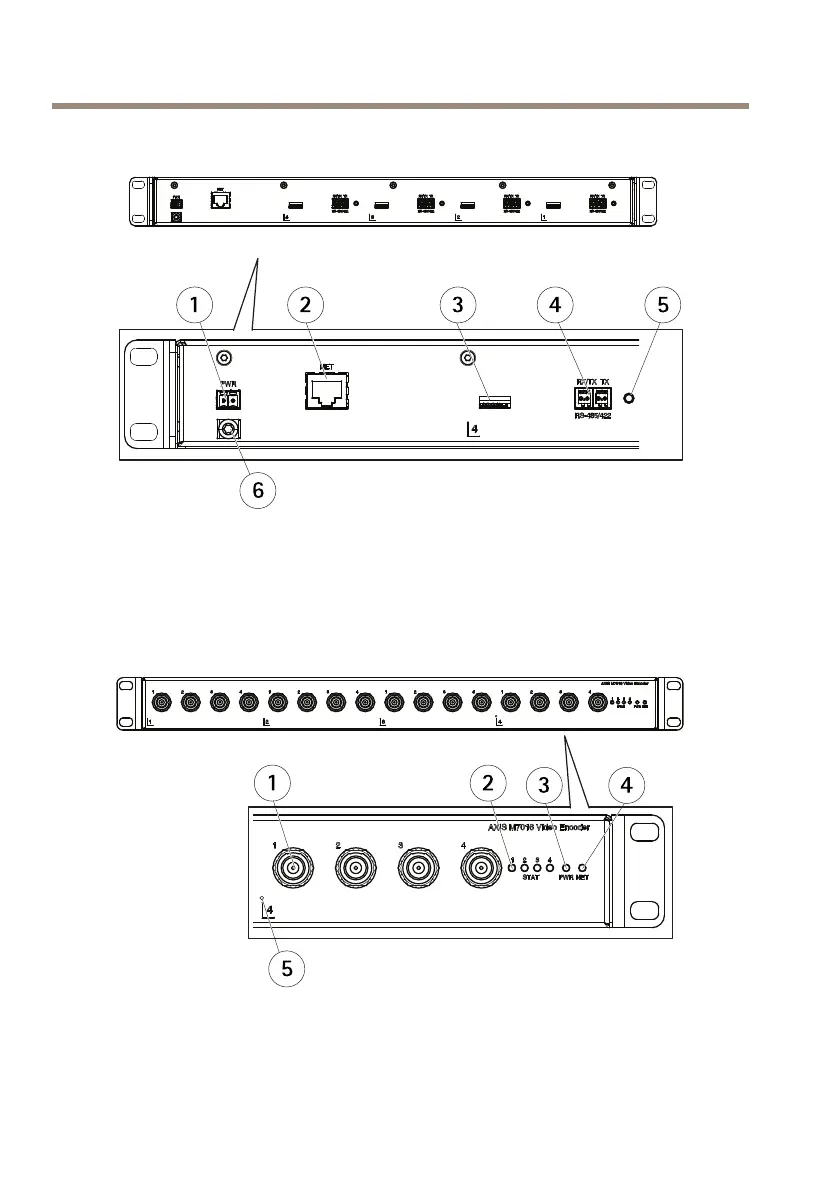

Panoramicadell'hardware
1
Connettoredialimentazione
2
ConnettoredireteRJ45
3
SlotperschedamicroSDx4
4
ConnettoreRS485/422x4
5
Pulsantedicomandox4
6
Terradiprotezione
1
ConnettoreBNCingressovideox16
2
LEDdistato1–4
3
LEDdialimentazione
4
LEDdiattivitàdireteRJ45
46
