Repainttheproduct

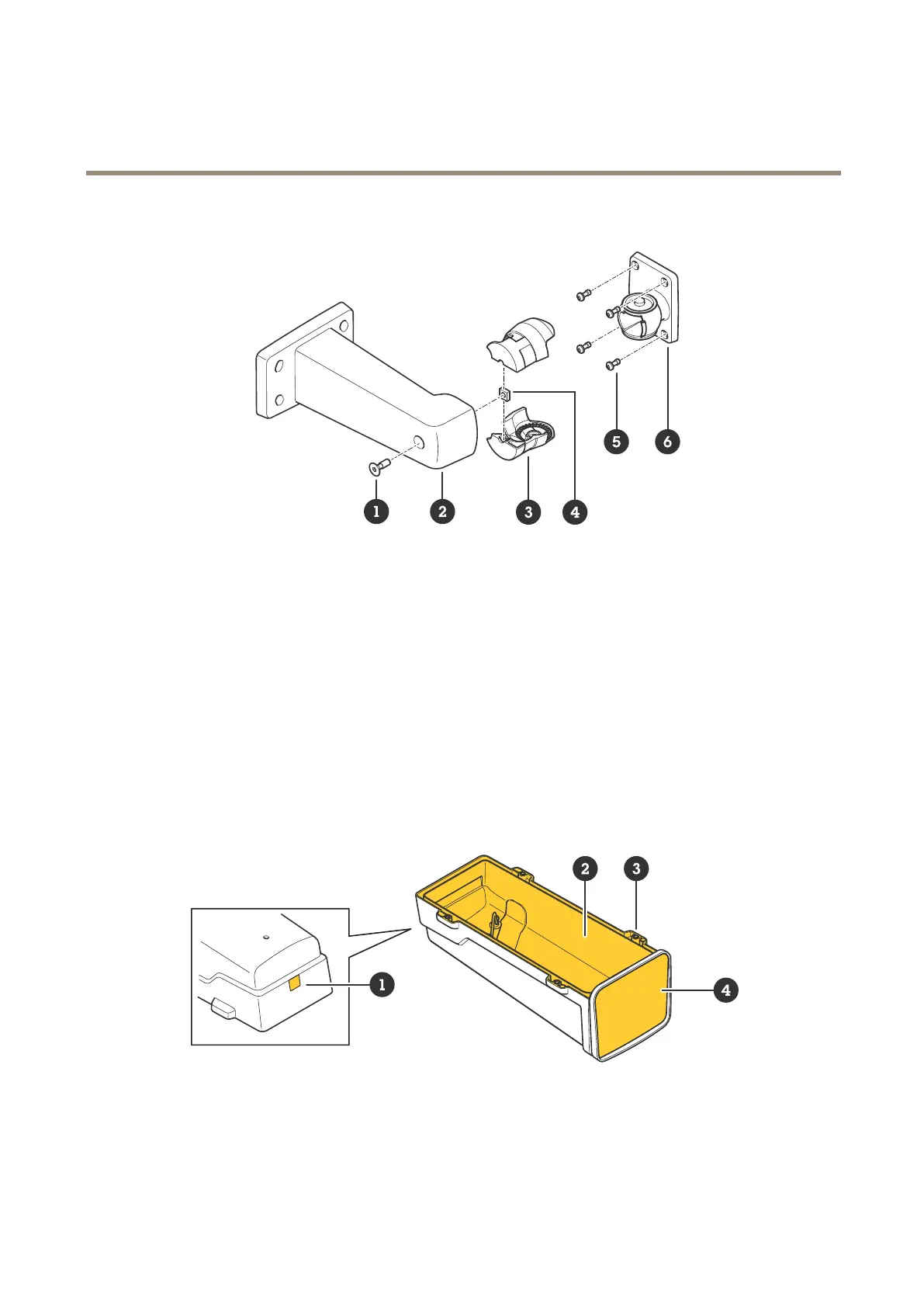

Disassemblethewallmountbracket
1
ScrewT30
2
Arm
3
Socket
4
Squarenut
5
ScrewT20(4x)
6
Balljoint
1.RemovetheT30screwatthebottomofthearm.
2.Separatethesocketandthesquarenutandremovetheballjoint.
3.Removethe4xscrewsfromtheballjoint.
Masking
Maskingthetopcover
1
Label
2
Inside
3
Screwholes(4x)
4
Frontwindow
5
