Axis Q1615 - Hardware Overview; Component Identification

AXISQ1615NetworkCamera

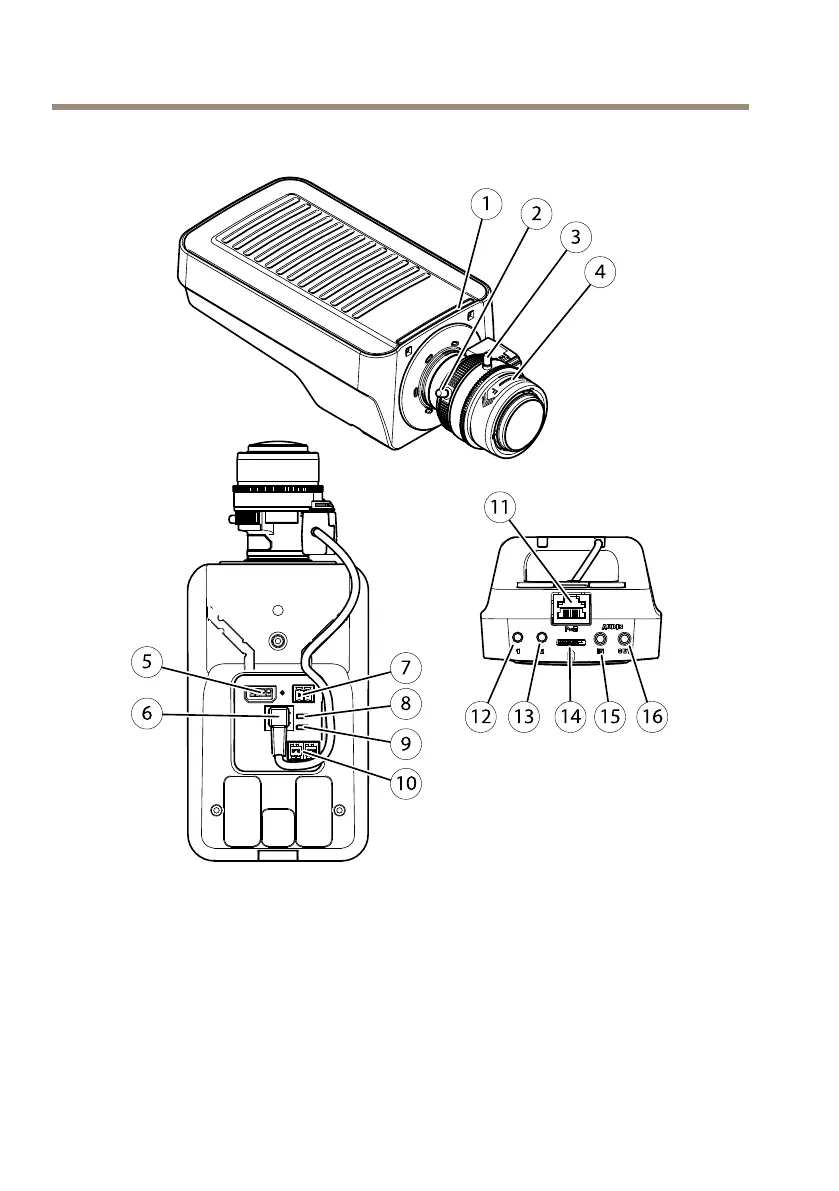

HardwareOverview
1
2
3
4
5
6
7
8
9
10
11
12 13 14 15 16
1.
StatusLEDindicator
2.
Zoompuller
3.
Lockscrewforfocusring
4.
Focusring
5.
I/Oconnector
6.
Irisconnector
7.
Powerconnector
8.
PowerLEDindicator
9.
NetworkLEDindicator
10
