Axis Q1615 User Manual

AXISQ1615NetworkCamera

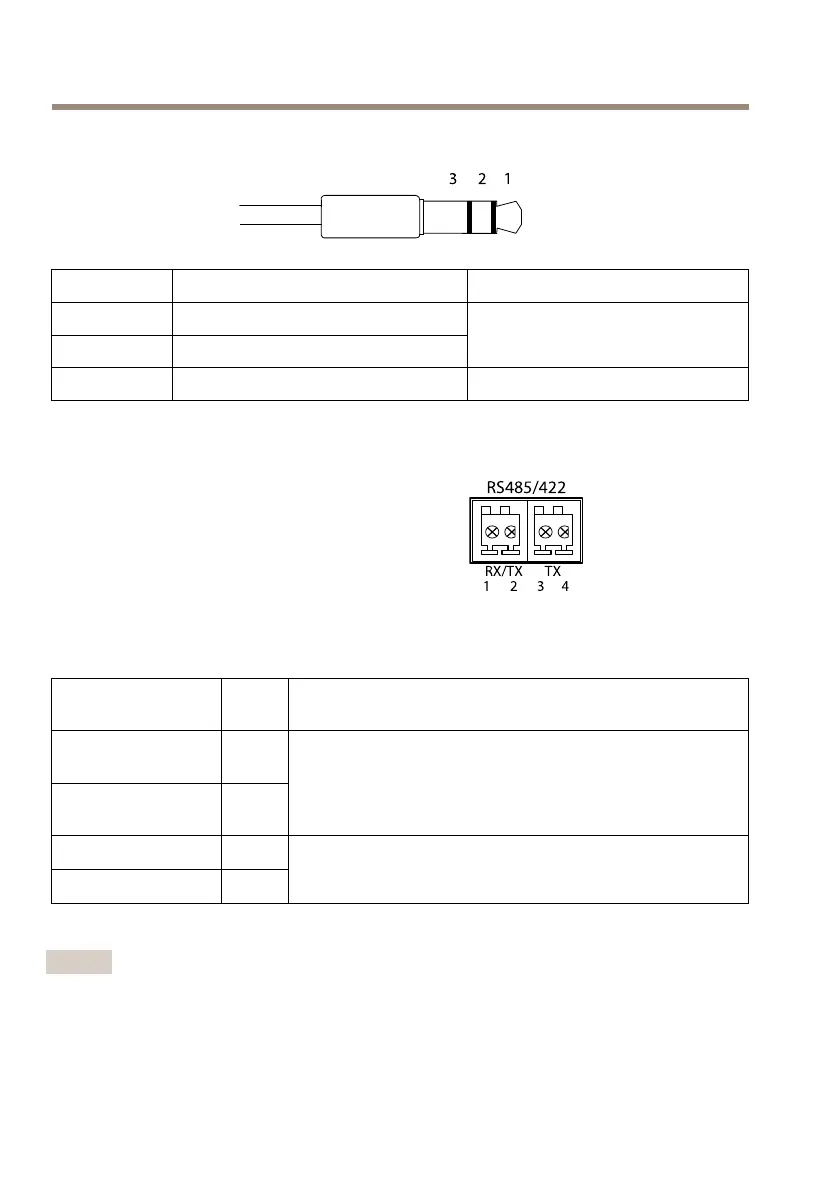

Audioanschlüsse
3,5-mm-
Audioanschlüsse
(stereo)
123
AudioeingangAudioausgang
1Spitze
Mikrofon-/Leitungseingang
2Ring
Leitungsausgang(mono)
3Schaft
MasseMasse
RS485/422-Anschluss
Zwei2-poligeAnschlussblöckefürserielleSchnittstellen
vomTypRS485/RS422.DerserielleAnschlusskannin
denfolgendenAnschlussmodikonguriertwerden:
•zweiadrigerRS485-Halbduplex-Anschluss
•vieradrigerRS485-Vollduplex-Anschluss
•zweiadrigerRS422-Simplex-Anschluss
•vieradrigerRS422-Vollduplex-Anschluss
(Punkt-zu-Punkt-Verbindung)
RS485/422
1 2
RX/TX TX
3 4
FunktionKon-
takt
Hinweise
RS485Balt
RS485/422RX(B)
1
RS485Aalt
RS485/422RX(A)
2
RX-PaarfüralleModi(kombinierterRX/TXfürRS485mit2
Leitern)
RS485/RS422TX(B)
3
RS485/RS422TX(A)
4
TX-PaarfürRS422undRS485mit4Leitern
Wichtig
DieempfohlenemaximaleKabellängebeträgt30m(98,4ft).
56

Axis Q1615 Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Form factor	Box
Product color	Black
Housing material	Aluminium, Metal
International Protection (IP) code	IP66
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Video formats supported	H.264, M-JPEG, MPEG4
Camera shutter speed	1/143000 - 2 s
Minimum illumination	0.18 lx
Sensor type	CMOS
Optical sensor size	1/2.8 \
Optical zoom	- x
Zoom capability	-
Focus adjustment	1.3
Focal length range	2.8 - 8 mm
Password protection type	User
Built-in HDD	No
Flash memory	256 MB
Internal memory	512 MB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/v6, HTTP, HTTPS b, SSL/TLS b, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP ™, SNMPv1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Ethernet LAN (RJ-45) ports	1
Sample rate	32 kHz
Audio system	2-way
Audio formats supported	AAC, ADPCM, PCM
Power source type	PoE
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	404 mm
Width	140 mm
Height	58 mm
Weight	914 g
