Technical specications – AXIS Q6032-E PTZ Dome Network Camera
www.axis.com
©2013 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ARTPEC and VAPIX are registered trademarks or trademark applications of Axis AB in
various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right to
introduce modications without notice.
50012/EN/R1/1301
Camera
Models AXIS Q6032-E 60 Hz; AXIS Q6032-E 50 Hz
Image sensor ¼” ExView HAD progressive scan CCD
Lens f=3.3 – 119 mm, F1.4 – 4.2, autofocus, automatic day/night
Horizontal angle of view: 57.2° - 1.7°
Minimum
illumination
Color: 0.5 lux at 30 IRE F1.4
B/W: 0.008 lux at 30 IRE F1.4
Shutter time 1/30000 s to 0.5 s (60 Hz), 1/30000 s to 1.5 s (50 Hz)
Pan/tilt/zoom E-flip, 100 preset positions
Pan: 360° endless, 0.05° – 450°/s
Tilt: 220°, 0.05° – 450°/s
36x optical zoom and 12x digital zoom, total 432x zoom
Pan/tilt/zoom
functionalities
Tour recording
Guard tour
Control queue
On-screen directional indicator
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC)
Motion JPEG
Resolutions Extended D1 752x480 to 176x120 (60 Hz)
Extended D1 736x576 to 176x144 (50 Hz)
Frame rate
H.264
H.264: Up to 30/25 fps (60/50 Hz) in all resolutions
Motion JPEG: Up to 30/25 fps (60/50 Hz) in all resolutions
Video streaming Multiple, individually configurable streams in H.264 and
Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Image settings Wide dynamic range (WDR), electronic image stabilization (EIS),
manual shutter time, compression, color, brightness, sharpness,
white balance, exposure control, exposure zones, backlight
compensation, fine tuning of behavior at low light, rotation,
text and image overlay, 32 individual 3D privacy masks, image
freeze on PTZ
Network
Security Password protection, IP address filtering, HTTPS encryption*,
IEEE 802.1X network access control*, digest authentication,
user access log
Supported
protocols
IPv4/v6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP,
CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II),
DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP,
DHCP, ARP, SO CK S
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform from Axis Communications;
specifications available at www.axis.com
ONVIF, specification available at www.onvif.org
AXIS Video Hosting System (AVHS) with One-Click Camera
Connection
Intelligent video Video motion detection, autotracking, Active Gatekeeper,
AXIS Camera Application Platform
Event triggers Video motion detection, autotracking, AXIS Camera Application
Platform, PTZ preset, temperature, memory card full
Event actions File upload: FTP, HTTP, network share and email
Notification: email, HTTP and TCP
PTZ preset, guard tour, video recording to edge storage,
autotracking, day/night mode
Pre- and post-alarm video buffering
Data streaming Event data
Installation aid Pixel counter
General
Casing IP66-, NEMA 4X- and IK10-rated, metal casing (aluminum),
polycarbonate (PC) clear dome, sunshield (PC/ASA)
Memory 256 MB RAM, 128 MB Flash
Power High Power over Ethernet (High PoE), max. 60 W
AXIS T8124 High PoE Midspan 1-port: 100-240 V AC, max. 74 W
Connectors RJ45 for 10BASE-T/100BASE-TX PoE
RJ45 IP66-rated Push-pull Connector included
Edge storage SD/SDHC/SDXC slot supporting memory card up to 64 GB (card
not included); support for recording to network share (network-
attached storage or file server)
Operating
conditions
-40 °C to 50 °C (-40 °F to 122 °F)
Arctic Temperature Control enables camera start-up at
temperatures as low as -40 °C (-40 °F); humidity 15 - 100% RH
(condensing)
Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3,
EN 61000-6-1, EN 61000-6-2, EN 55024,
FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B,
C-tick AS/NZS CISPR 22 Class B, KCC Class B
IEC 60529 IP66, NEMA 250 Type 4X, IEC 62262 IK10
IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC 60068-2-1,
IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14,
IEC 60068-2-30, IEC 60068-2-6, IEC 60068-2-27,
IEC 60068-2-60, ISO 4892-2
Midspan: EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB, KCC, UL-AR
Weight 3.5 kg (7.7 lb.)
Included
accessories
AXIS T8124 High PoE Midspan 1-port, RJ45 IP66-rated Push-
pull Connector, sunshield, Installation Guide, Installation and
Management Software CD, Windows decoder 1-user license
More information is available at www.axis.com
* This product includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit. (www.openssl.org)

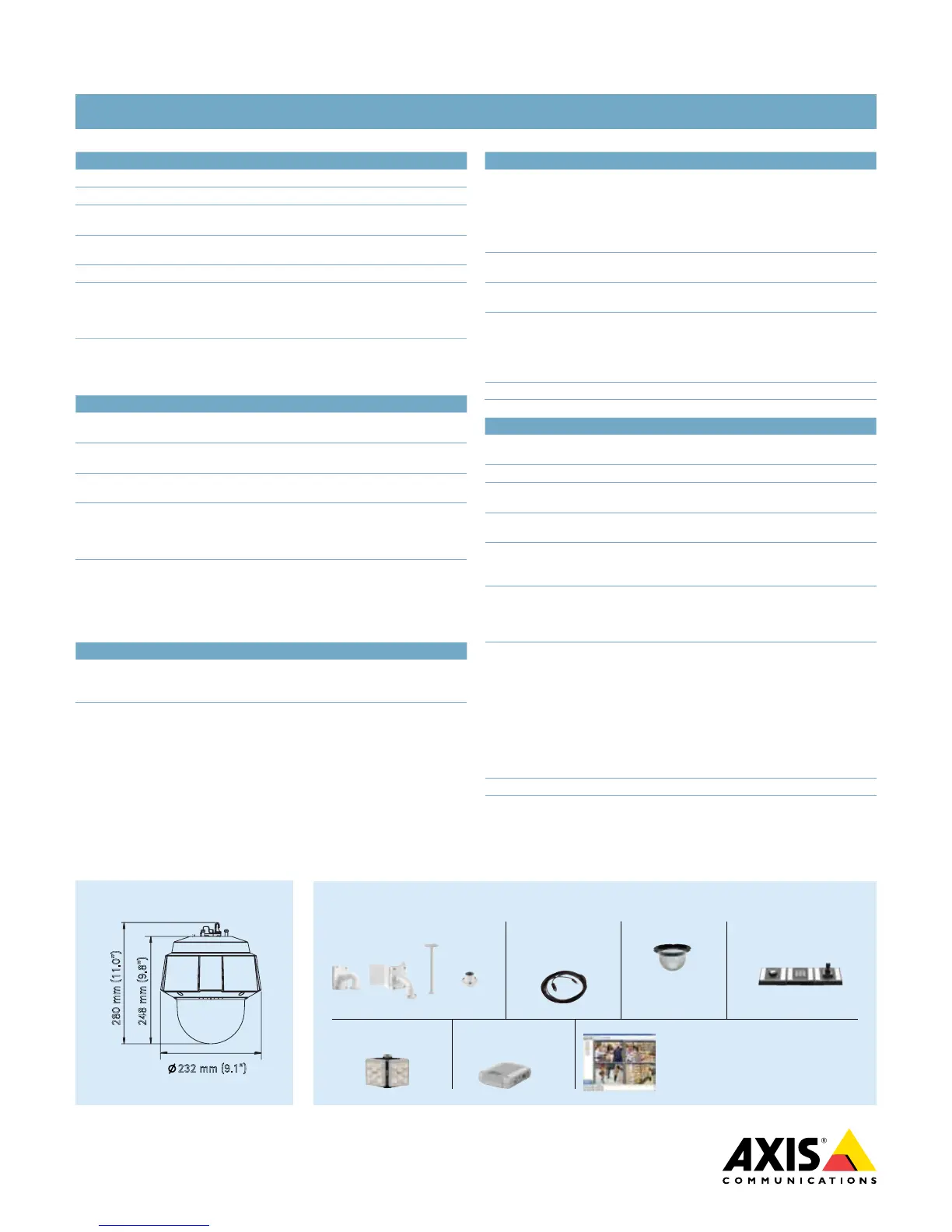

Dimensions
280 mm (11.0”) 248 mm (9.8”)
232 mm (9.1”)
Corner
Optional accessories
AXIS T90A Illuminators
Axis mounting accessories
Wall
Corner
Ceiling
Pendant kit
AXIS Camera Companion (included),
AXIS Camera Station and video management
software from Axis’ Application Development
Partners (not included). See
www.axis.com/products/video/software/
AXIS T8310 Video
Surveillance Control Board
AXIS P8221 Network
I/O Audio Module
Smoked dome
Free of charge when
ordered together with
the camera
RJ45 IP66-rated
cable with
premounted
connector (Cat-6)
5 m
