AXISQ8685-EPTZNetworkCamera

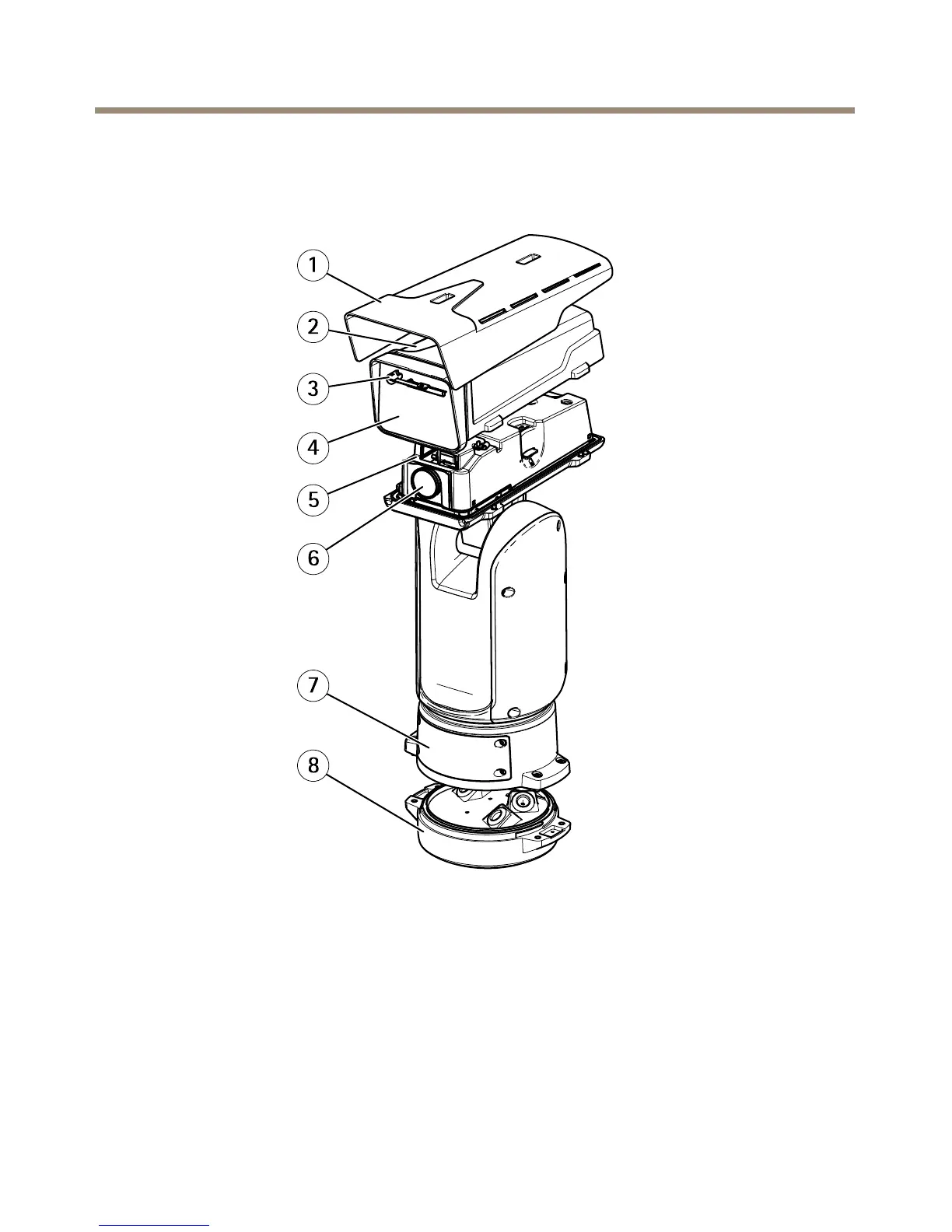

Hardwareoverview
Forspecicationsofthehardwarecomponents,seeSpecicationsonpage26.
1
Sunshield
2
Topcover
3
Wiper
4
Frontwindow
5
Innercover
6
Lens
7
Lid
8
Baseunit
10

Other manuals for Axis Q8685-LE

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Axis Q8685-LE and is the answer not in the manual?

Axis Q8685-LE Specifications

General IconGeneral
ModelAxis Q8685-LE
TypeNetwork camera
Image Sensor1/2.8" progressive scan CMOS
Video compressionH.264, H.265, Motion JPEG
Ethernet Ports1
IP RatingIP66
NEMA RatingNEMA 4X
Vandal ResistanceIK10
Weather ResistanceYes
Zoom30x optical zoom
Frame rateUp to 60 fps
Audio compressionAAC-LC, G.711, G.726
Min. IlluminationColor: 0.15 lux, B/W: 0.03 lux
Infrared IlluminationYes
Day/NightYes
Wide Dynamic RangeYes
Power24 V AC, 12 V DC
Power over EthernetIEEE 802.3at
Resolution3840 x 2160 (4K UHD)
Operating conditions-40 °C to 60 °C
