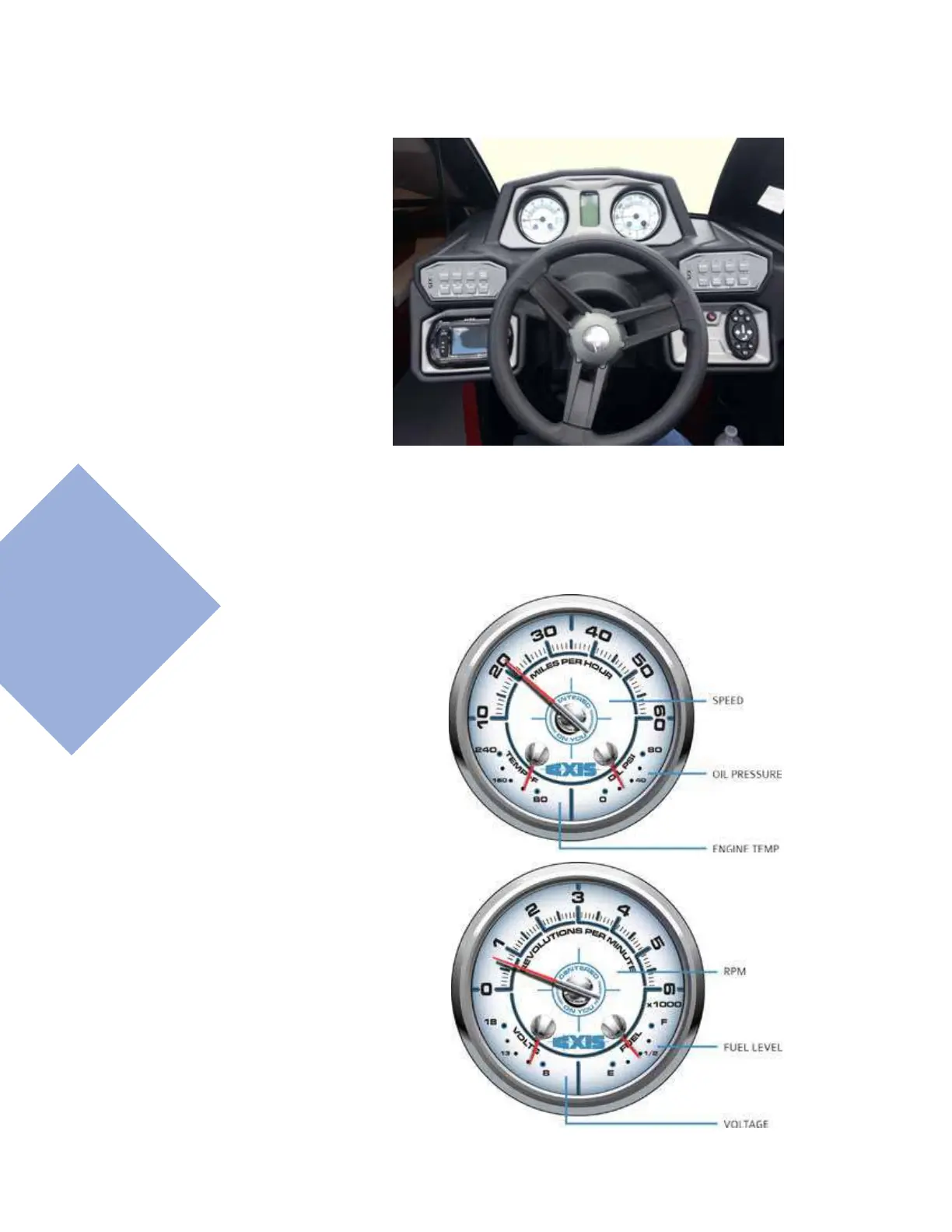

The Axis instrument panel
dash features include:
• Speedometer/oil pressure/
engine temperature
• Tachometer/fuel level/voltage
• Accessory switches
• Media controls
• Key ON-OFF ignition
Functionality is explained
in this section. Additional
information about certain aspects
of the controls is also discussed
in further detail in other sections
of the Owner’s Manual. Be sure
to read the entire manual before
attempting to operate the
controls.
The Axis instrument panel features two (2) ve-inch (5”) gauges, which provide
real-time information about important drive train functions.
The top of the left gauge is
the Axis speedometer, which
shows the boat’s speed as
determined by the paddlewheel
under the hull. The speed reads
in miles per hour (mph).
The lower left of the gauge
is the engine temperature
reading. If the temperature sensor
notes a reading above the programmed,
acceptable level an alarm will sound. More
information about alarms follows in this
section of the Owner’s Manual.
The lower right of the gauge is the
engine oil pressure reading. If the oil
pressure sensor notes a reading above the
programmed, acceptable level an alarm
will sound. More information about alarms
follows in this section of the Owner’s
Manual.
The right side gauge is the tachometer/
voltage/fuel level display. The tachometer,
which is the upper half of the gauge, shows
the engine revolutions per minute (rpm)
numerically-times-1,000.
The lower left portion of the gauge
shows the electrical voltage at the
alternator output. The desired range
the axis instrument panel
gauges
Axis
Owners
Manual
2019
Page 64
