Installationsanleitung AXIbox 11K
EN211103 10
6.3 Electrical installation
The electrical supply to the wallbox is three-phase, a cable with 3 conductor phases, a neutral conductor
and a PE conductor is required.
Feed the cable through the left-hand opening at the bottom of the AXIbox housing. Clamp the wires of the
cable into the terminals provided. Use the wire end ferrules supplied and fix the cable inside the AXIbox
with the sleeve.

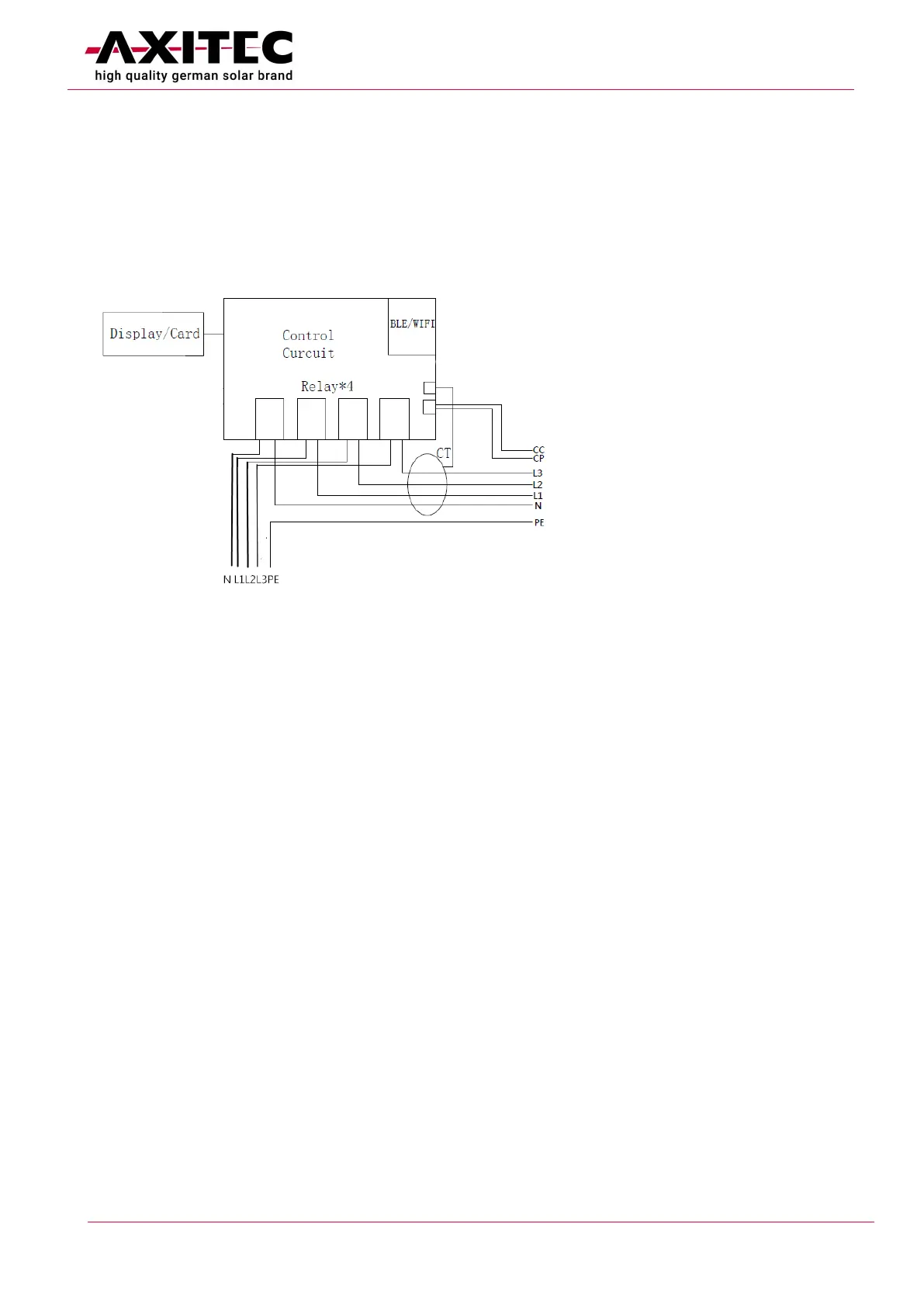

Schematic representation of the wiring
6.4 Final work
Put the housing cover back on the base and close the housing again with the two screws. The AXIbox is now
ready for use as soon as the power supply is switched on.
Before commissioning, check the following:
• Der gewählte Standort gewährleistet eine einfache Bedienung und Reparatur
• Die Ladestation wurde ordnungsgemäß installiert
• Die Schutzschalter der Zuleitung sind angemessen
• Es liegen keine Geräte und Gegenstände auf der Ladestation
