Installationsanleitung AXIbox 11K
EN211103 7
5 Requirements
5.1 Electrical requirements
When making the electrical connection, the country-specific regulations, standards and application rules
must be observed.
5.1.1 Supply cable
The power supply of the wallbox must be three-phase (3P + N + PE; min. 5 x 2,5 mm
2
, depending on the
locally applicable regulations, environmental conditions and installation type). The required conductor
voltage is 400 V AC and a current of 16 A per phase with 50 Hz mains frequency.
5.1.2 Protection devices
The phases of the supply line must each be protected with miniature circuit breakers and residual current
devices. The national regulations must be observed when dimensioning the miniature circuit breakers and
residual current devices.
The AXIbox 11K has residual current monitoring for currents >6 mA DC. Therefore, the charging station
must be fused with an RCD with at least type A. No other circuits may be connected to the residual current
circuit breaker.

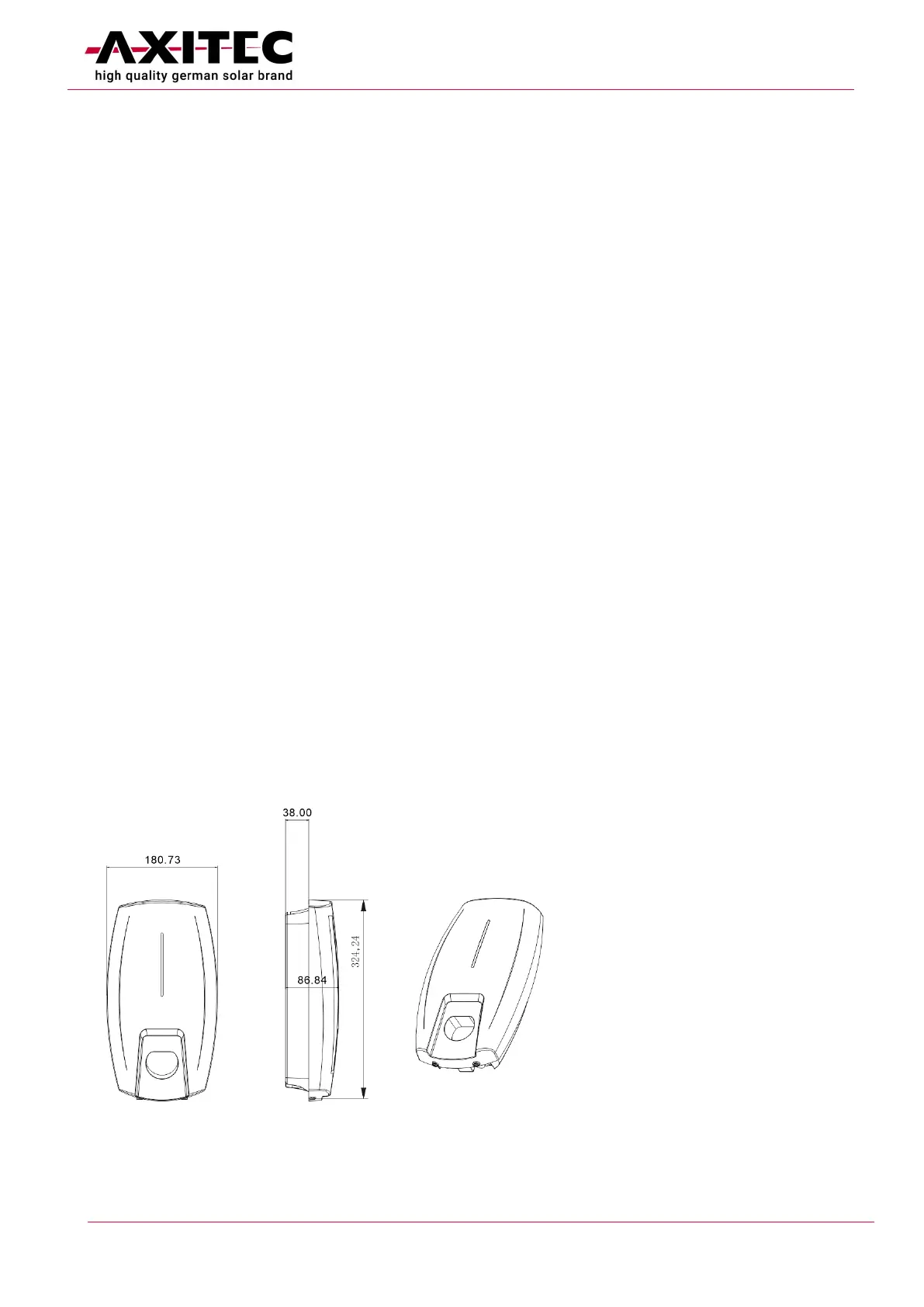

5.2 Requirements for the installation site
To control the AXIbox with the app, a W-Lan connection with 2.4 GHz is required at the installation site.
The AXIbox may only be mounted and operated vertically.
Mounting is permitted up to a maximum altitude of 2000 m above sea level.
The ambient temperature must not fall below -30°C and must not exceed 50°C.
The humidity must be in the range between 5% and 95%.
Do not install the charging station near explosive or flammable substances.
