Assembly Configurations...

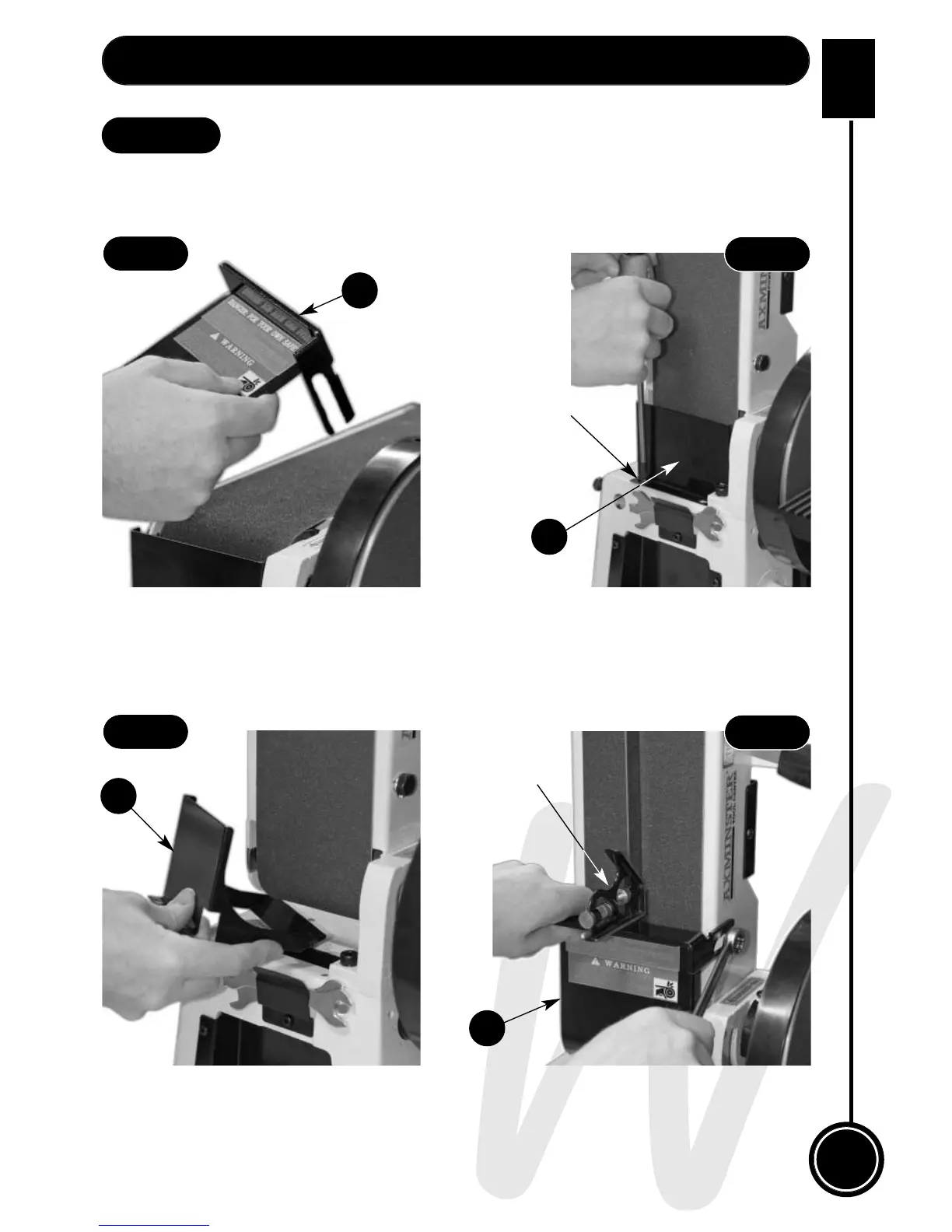

Workstop Plate Linisher Assembly
Option 2
Fig 43
Fig 44
Fig 45
Fig 46
The workstop plate (H) can be used as a miniature table when the linisher is in the up-right
position, see instruction below.
Remove the workstop plate (H), see fig 43 (refer to step 4) & raise the linisher as before.
Remove the dust deflector (a) by removing the two phillips screws & place safely aside
(See figs 44 & 45). Put to hand the workstop plate (H) you removed earlier, offer up
bracket, see fig 43, to the threaded hole in the linisher & clamp in place using the M10 bolt,
spring washer & 14mm spanner (See fig 46).
Place a 90˚ degree square onto the workstop plate (H) & check it is perpendicular to the
belt. If it requires adjustment, loosen the M10 bolt & adjust until correct, re-tighten the bolt.
(See fig 46)
H
H
a
a
Removing
90˚ degree
square
