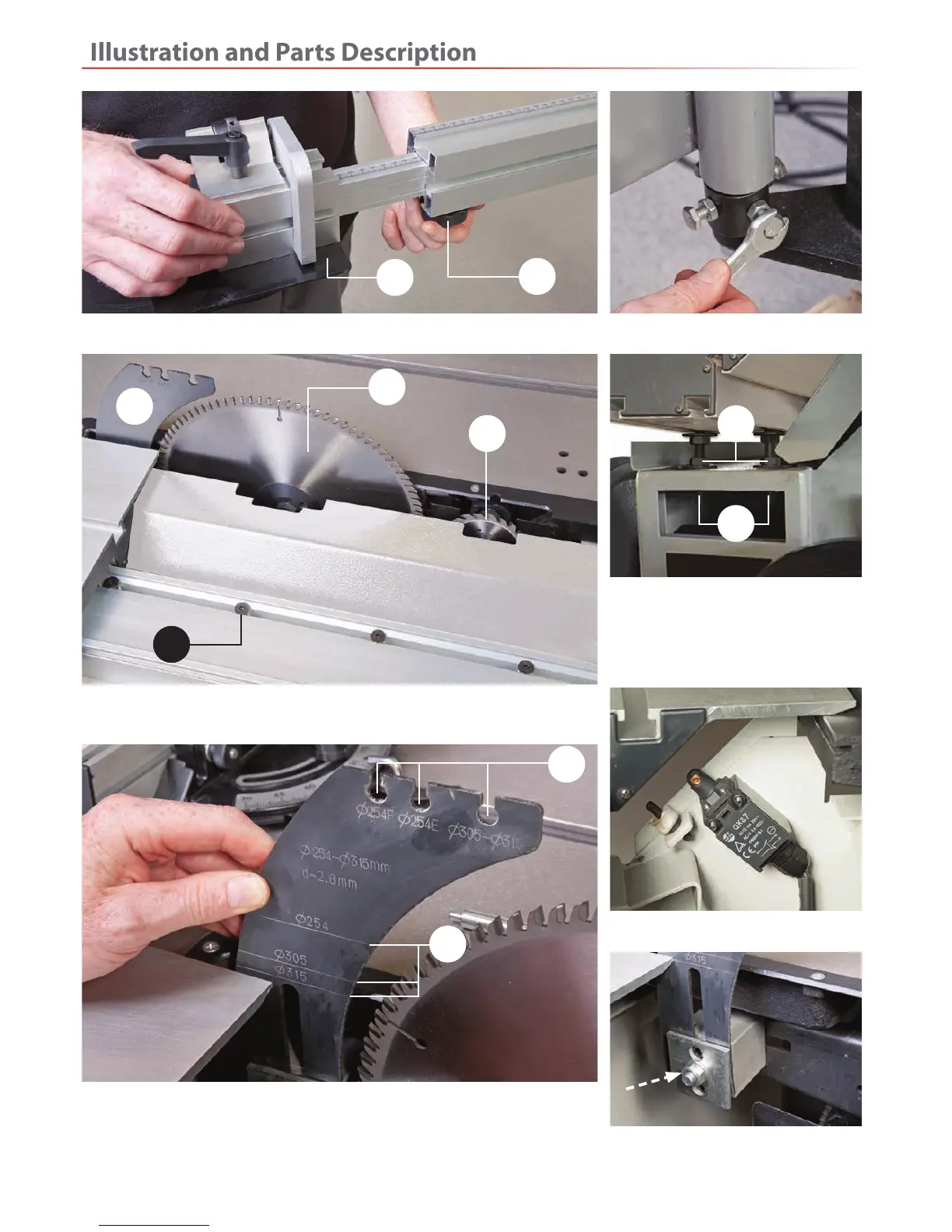

Illustration and Parts Description
24
Telescopic fence extension, (A) and clamping knob, (B)
Riving knife (A), Saw blade (B), Scoring blade, (C) Countersink hex screws, (D)
to tighten the sliding table if slide play movement is apparent
Riving knife clamping nut
Riving knife assembly
Crown guard mounting slots, (A) graduation lines,
(B) for the size of blade fitted
Extension table angle adjusting bolts
Height adjusting bolts for
sliding table assembly
• Depth stop nuts (A)
• Rise and fall locking nuts (B)
Inner cover micro switch
