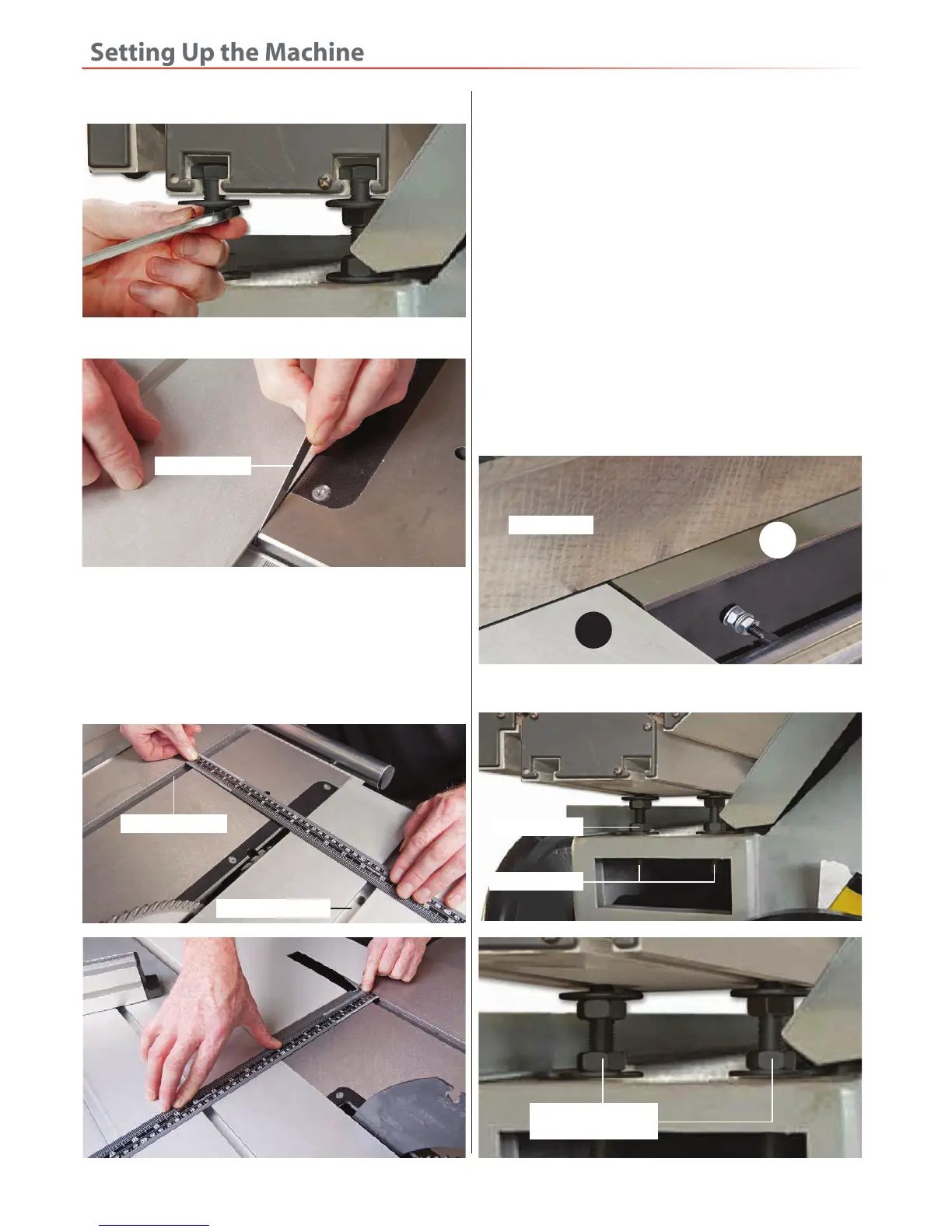

3. Place a rule across both tables and measure the
distance between both ‘T’ slots, do the same to the
opposite end and check the distances are the same,
see fig 106-107. If there is any deviation between the
‘T’ slots repeat step 2 and check again.
Fig 106-107
Sliding table ‘T’ slot
Main table ‘T’ slot
Fig 104
Fig 105
Feeler gauge
4. Once correct tighten nuts on the supporting brackets
to the underside of the sliding table to lock the setting,
see fig 104.
Sliding Table Height
Place a straight edge across both tables, see fig 108.
Loosen the two locking nuts that secures the sliding
tables mounting bolts inside the main saw tables (0)
frame, see fig 109. Adjust the the depth stop nuts until
the sliding table (19) is level with the main saw table
(0), see fig 110. Once level re-tighten the locking nuts to
secure in position.
NOTE: Check that the sliding table is still level with
the main table as it may have shifted when tightening
up the nuts.
Fig 108
Fig 109-110
Depth stop nuts for
adjusting the height
Locking nuts
Depth stop nut
19
0
Straight edge
