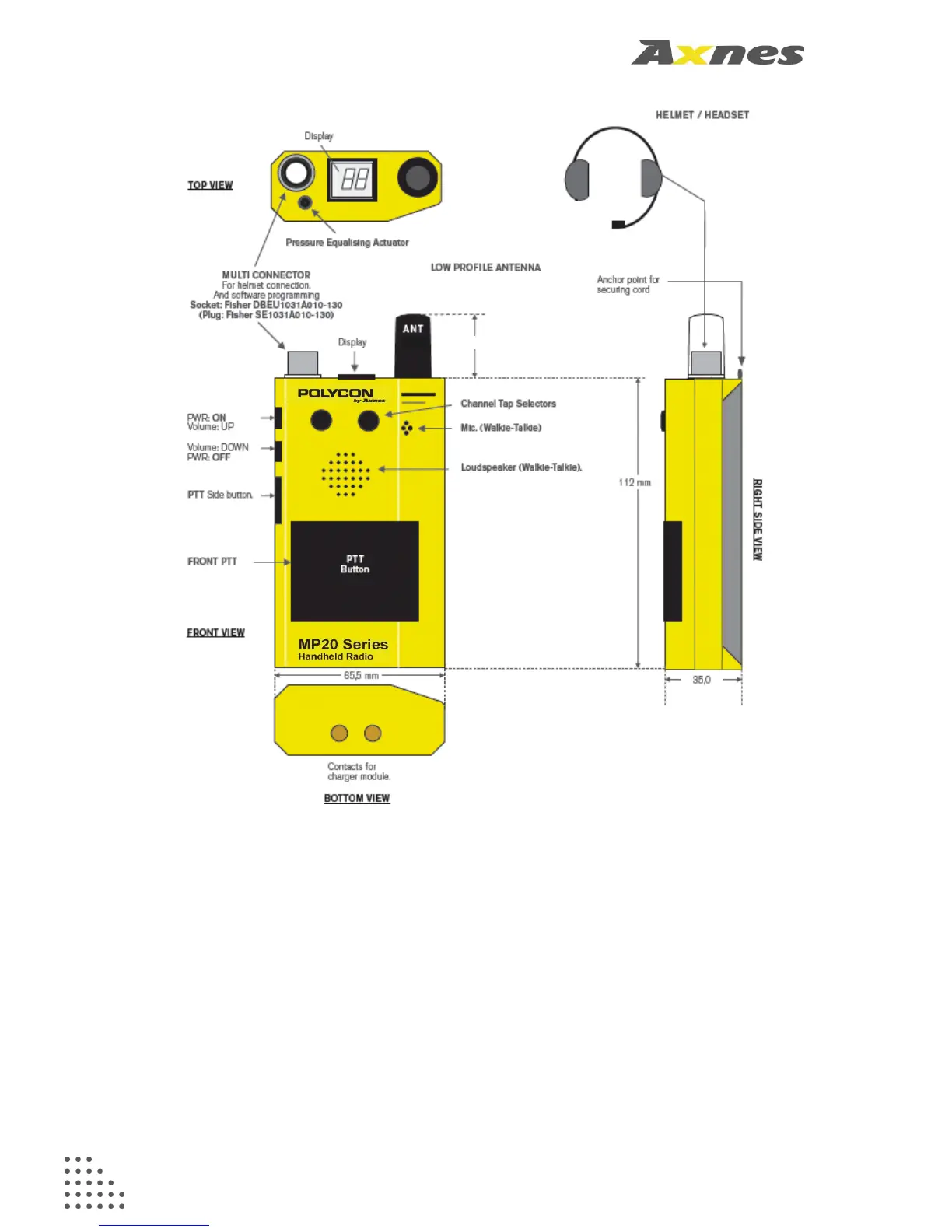

Figure 1-1: MP20 outline
1.3 Connectors and Control Functions
Electrical connections to the MP20 are located on the top and bottom of the MP20. The
electrical connections consist of:
 Waterproof 10 pin Fisher connector for helmet/headset connection.
 Plate connector for charging
21/41 mm
