Axon Fleet Camera System Quick Start Guide

English (U.S./Canada/Australia/U.K.)

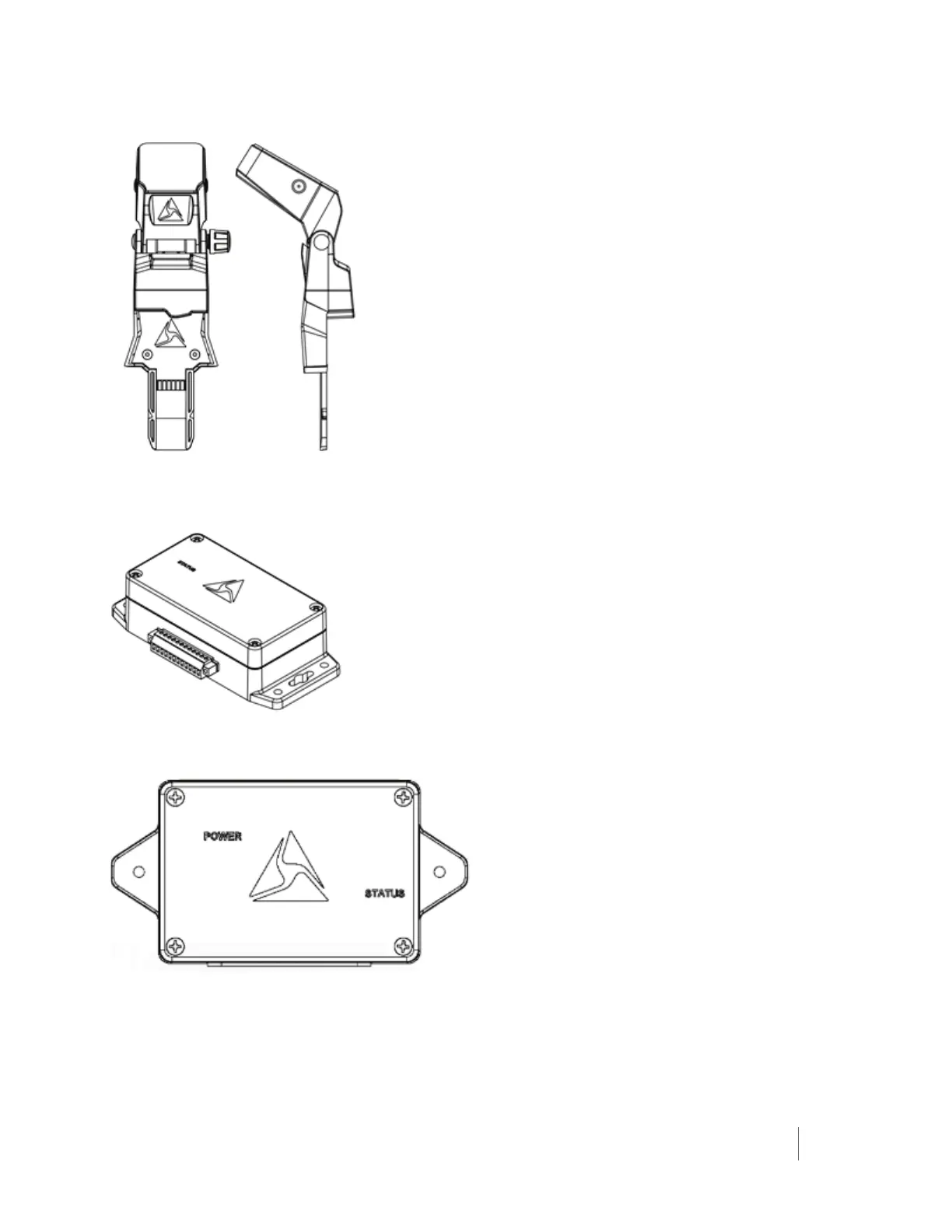

Axon Fleet power unit

10°

90°

A A

B B

C C

D D

E E

F F

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:2

SHEET 1 OF 1

WEIGHT:

instructional assembly

WARNING! FOLLOW SAFETY INSTRUCTIONS

Read, understand, and follow all current instructions, warnings, and relevant Axon training materials before using any Axon system. The

most up-to-date warnings and instructions are available at www.axon.com.

Recording

The Axon Fleet camera system has 2 operating modes. The default

mode, or BUFFERING mode, provides pre-event buering to cap-

ture activities that occur before you activate the EVENT (recording)

mode.

Note: The Axon Fleet camera will not operate outside of its mount.

1 Turn the system on. Move the ON/OFF switch to the ON position.

• The camera takes a few seconds to boot up and be ready to

record (the red area under the switch will be exposed with the

switch moved to the ON position).

• The operation LED will be solid red and then transition to

blinking green when the system goes into BUFFERING mode.

Solid Red

Boot up mode

Blinking Green

BUFFERING mode

Axon Fleet Features

1. Camera lens

2. Power switch (red = On/BUFFERING mode)

3. Speaker

4. Battery LED (green = 41–100%; yellow = 20–40%; red = less than

20%)

5. Microphone

6. EVENT button (press = start recording; hold 3 seconds = stop re-

cording)

7. Battery status button: (push to show status of battery)

8. Operation LED

9. Function LED

10. Dataport (data transfer through PC or Axon Dock)

11. Upload status LED

12. Carriage bolt (allows tilting the camera to the desired angle, and

then ﬁxing the camera in place)

camera front

camera back

camera top

camera bottom

mount without camera

front

mount and camera

front

mount and camera

back

Axon Fleet Hardware

The camera can be tilted 90 degrees in 10-degree increments

Note: Move the ON/OFF switch to the OFF position before

removing the camera from the mount.

Axon Fleet - Page 6
