Axopar 28 - General Layout AC

8
9

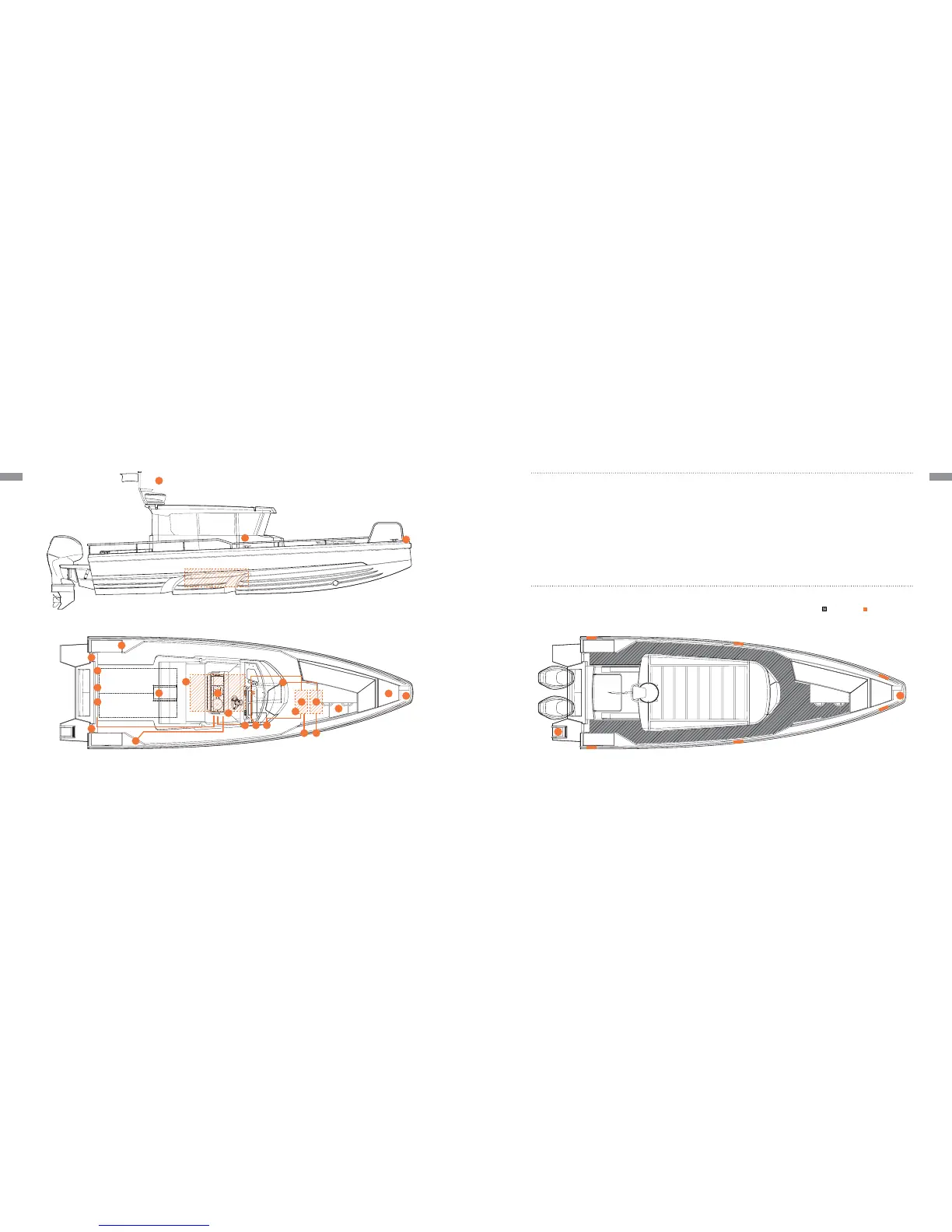

GENERAL LAYOUT AC
1
1
6
5
14
11
9
9
3
15
2
2
21
16
18
20 19
4
7
12 13
10
8
8
14
17
01 Mast light
02 Running lights 112.5° red
112.5° green output 10W
03 Dry powder extinguisher 2kg output
13A89BC
04 Fuel tank
05 Bilge pump
06 Manual bilge pump
07 Service hatch for fuel tank
08 Breather valve for fuel tank
09 Deck drain aps
10 Fuel inlet pipe
11 Fuel lter / - water separator
12 Septic tank
13 Water tank
14 Flushing water cock for toilet
15 Septic tank cock
16 Service hatch for bow thruster
17 Septic tank deck drain
18 Inlet pipe for water tank
19 Breather valve for water tank
20 SBreather valve for septic tank
21 Liqueed petroleum gas container
WORK DECKS AND SWIM LADDERS AC 01 Swim ladders 02 Trailer eyelet
Work deck Attaching points
1
2
