AXTON C109 - Connecting Diagram C509 4-Channel Operation; Minimum Speaker Impedance Note; Main Fuse Installation Requirement

35
CONNECTING DIAGRAM 3 C509
Please note!
● Min. speaker impedance all
channels 2 Ohms!
● A main fuse (not included) of
appropriate amperage must be
installed within 30 cm of
the car battery!

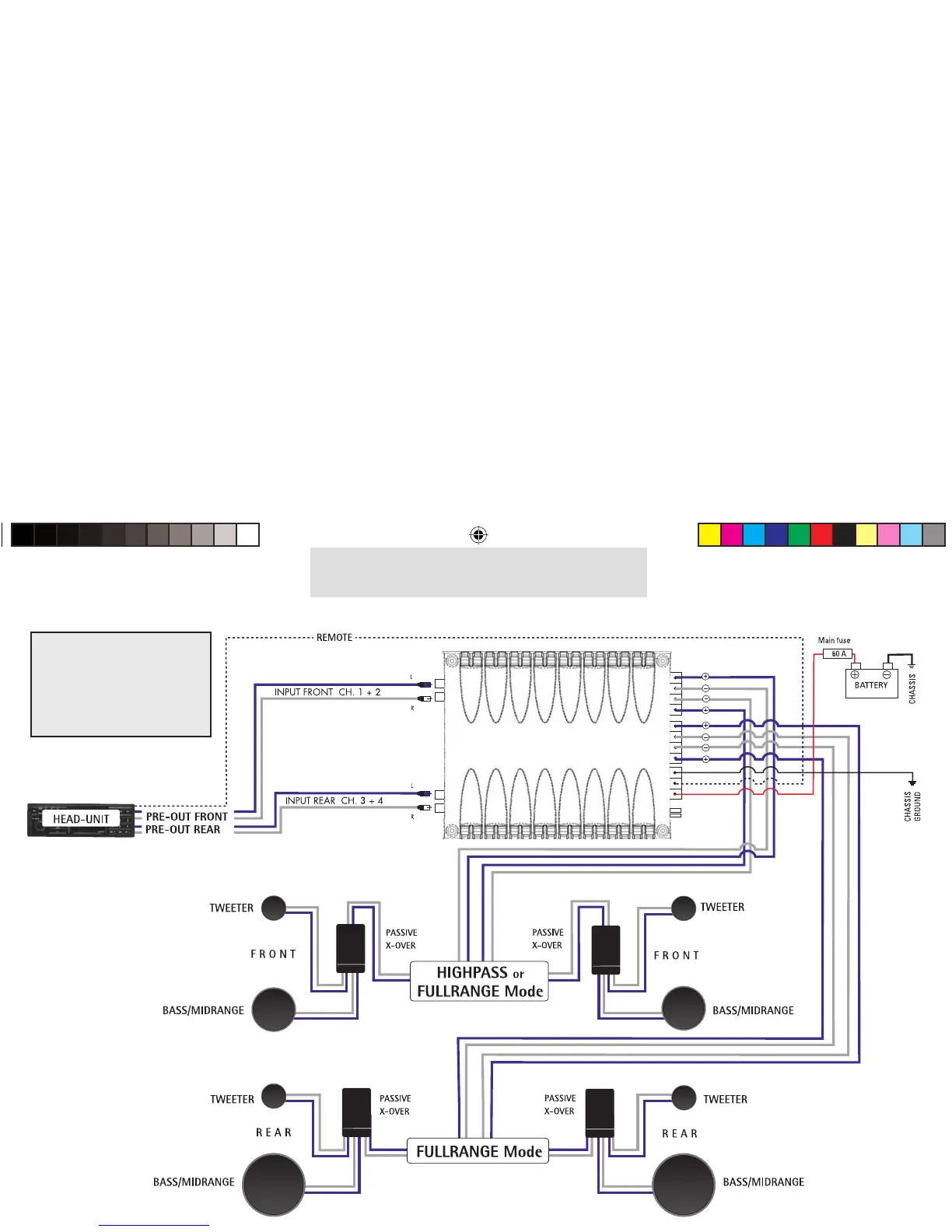

2 Pre-Out 4-Channel Operation
C509
