AXTON C109 - Connecting Diagram C509 + C109 Multi-Amp Operation; C509 Minimum Impedance Note; Main Fuse Installation Requirement

37
100 A

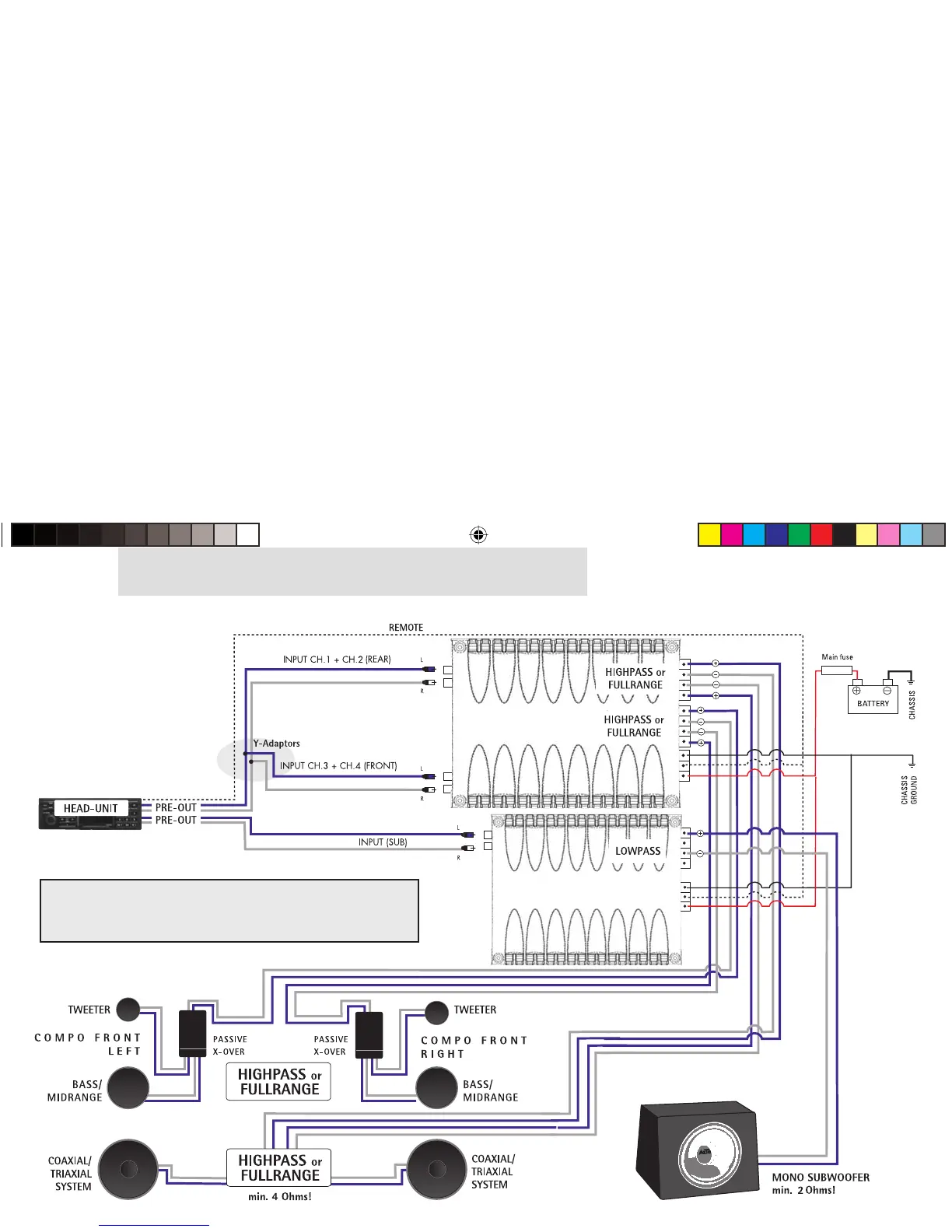

CONNECTING DIAGRAM 6 C509 + C109
Multi-Amp Multi-Channel Operation
Please note!
● C509 any operating mode: min. impedance 2 Ohms!
● A main fuse (not included) of appropriate amperage must be installed
within 30 cm of the car battery!
C509
C109
