GMOS-05 INSTRUCTIONS
1-800-221-0932
REV. 08/19/08 © COPYRIGHT 2004-2008 METRA ELECTRONICS CORPORATION INSTGMOS-05
www
.axx
essinterface.com

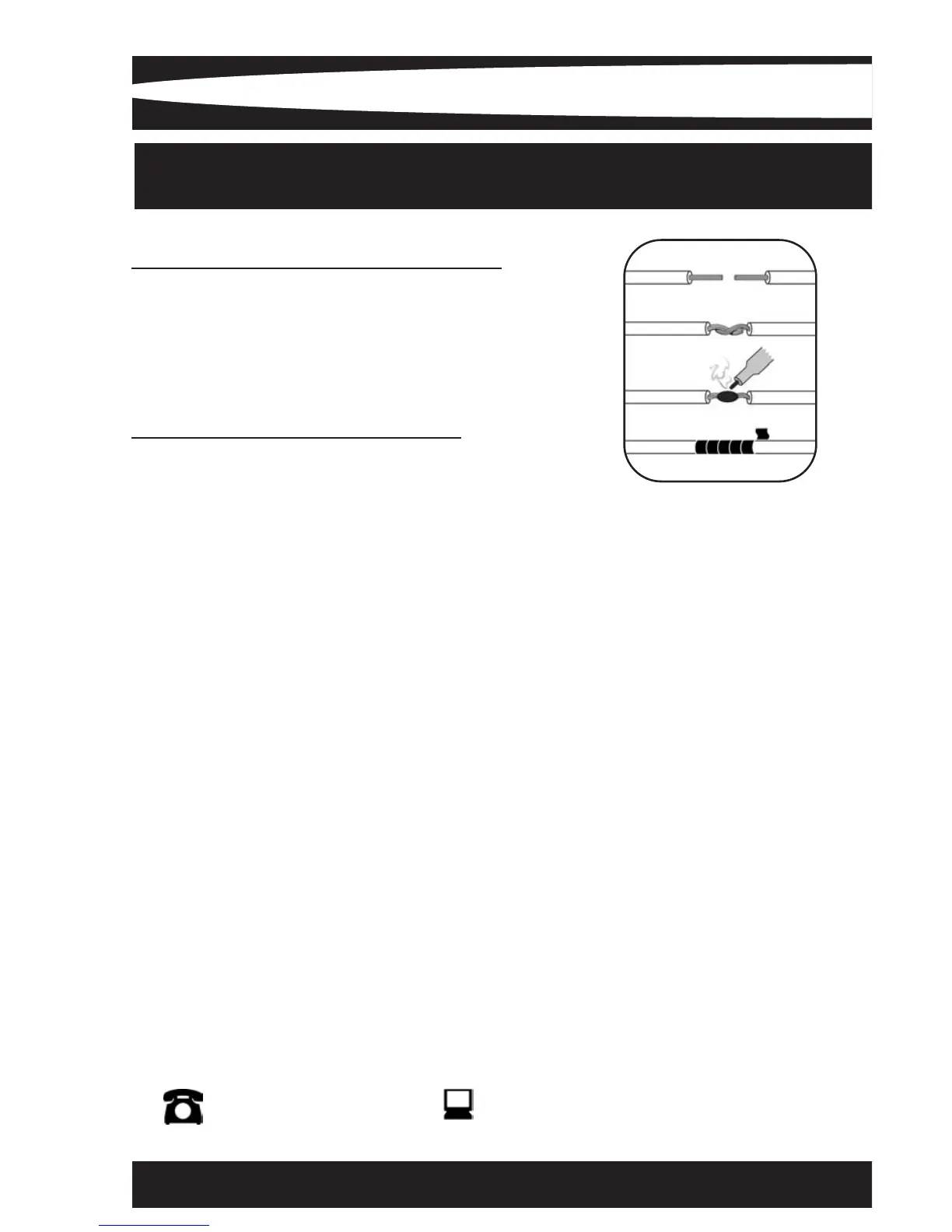

FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the
instructions included with the head unit. Metra recommends making connec-
tions as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape
off ends of any unused wires to prevent electrical short circuit.
METRA/EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray / Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
STRIP
SPLICE
SOLDER
TAPE
