AZ-Delivery TXS0108E - The Pinout

The pinout

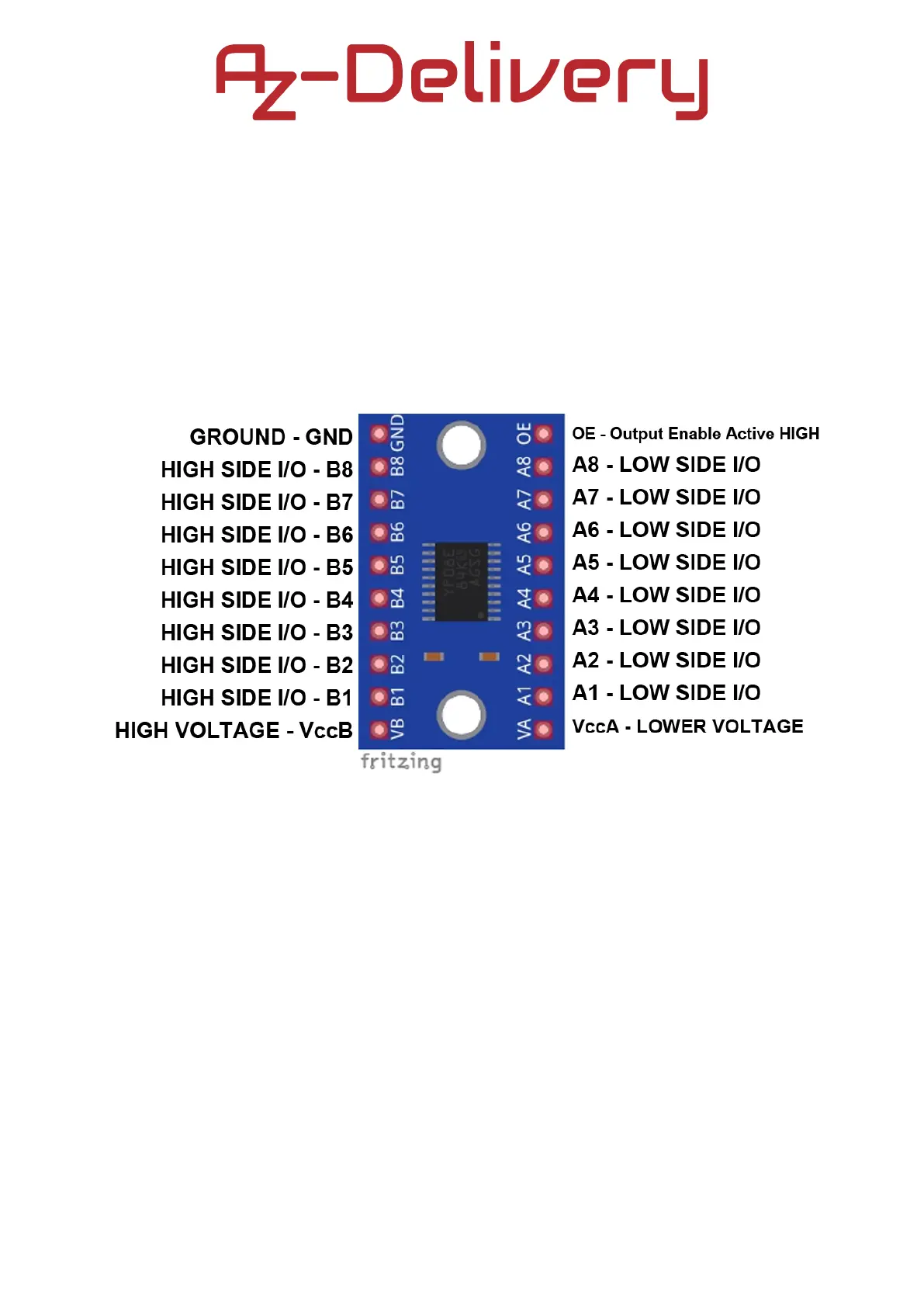

The Logic Level Converter TXS0108E has 20 pins. The pinout is shown in
the following image:
The VCCA pin receives any supply voltage between 1.4 V and 3.6 V. The A
port tracks the VCCA pin supply voltage. The VCCB pin receives any supply
voltage between 1.65 V and 5.5 V. The B port tracks the VCCB pin supply
voltage. Two 0.1mF capacitors are recommended between the VCC
connectors and GROUND.
