7
AB-6600

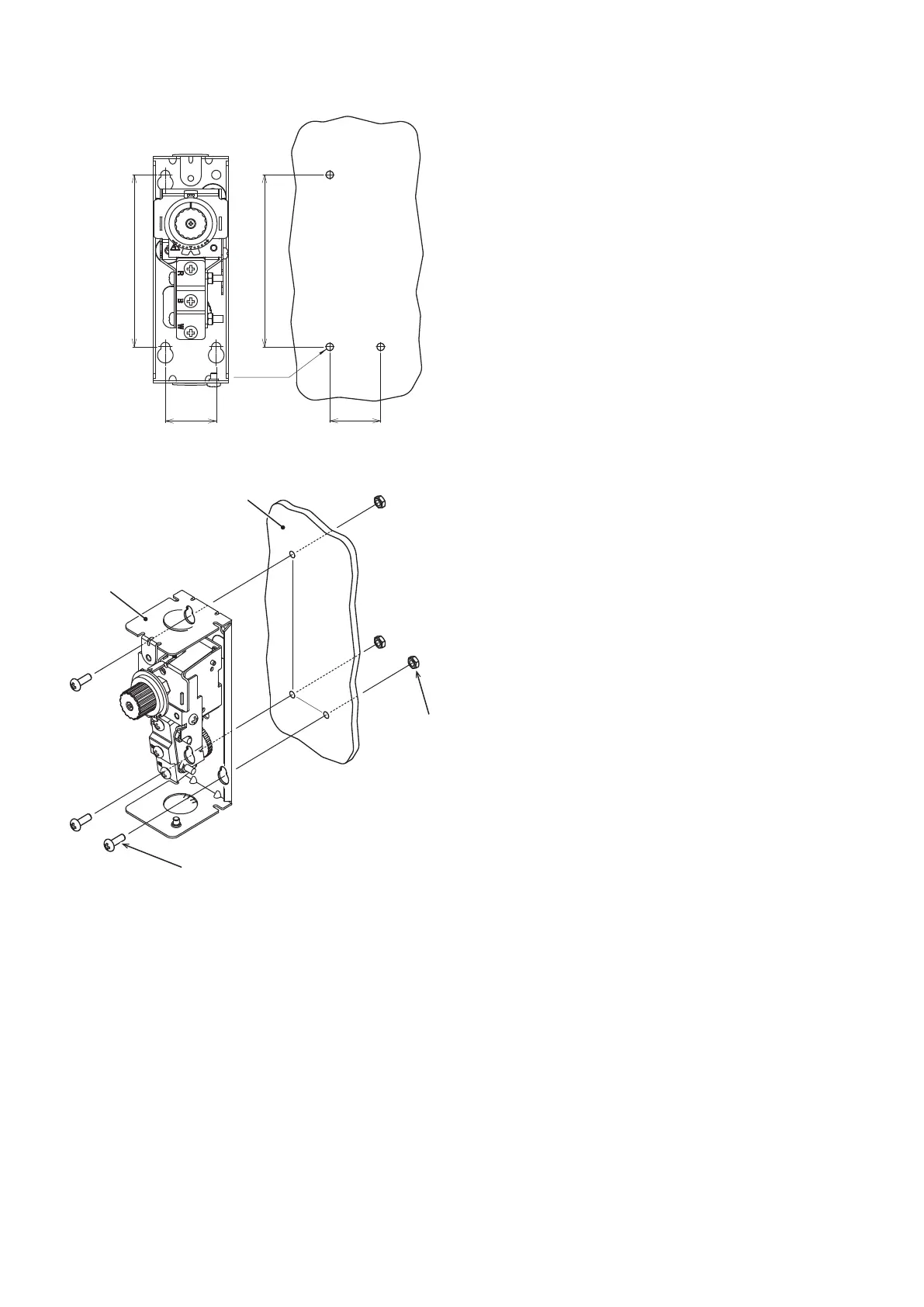

Figure 7. Mounting wall/panel dimensions (mm)
Figure 8. Installation procedure
31
106.4 106.4
31
4.5 Hole
(Wall or panel)
Mounting nuts (x3)
Accessories: M4
Mounting screws (x3, accessories)
M4, L=12
Wall plate
t1.6
～
3.2
Main unit
