1ª 10155 ES 9 - 2009
26

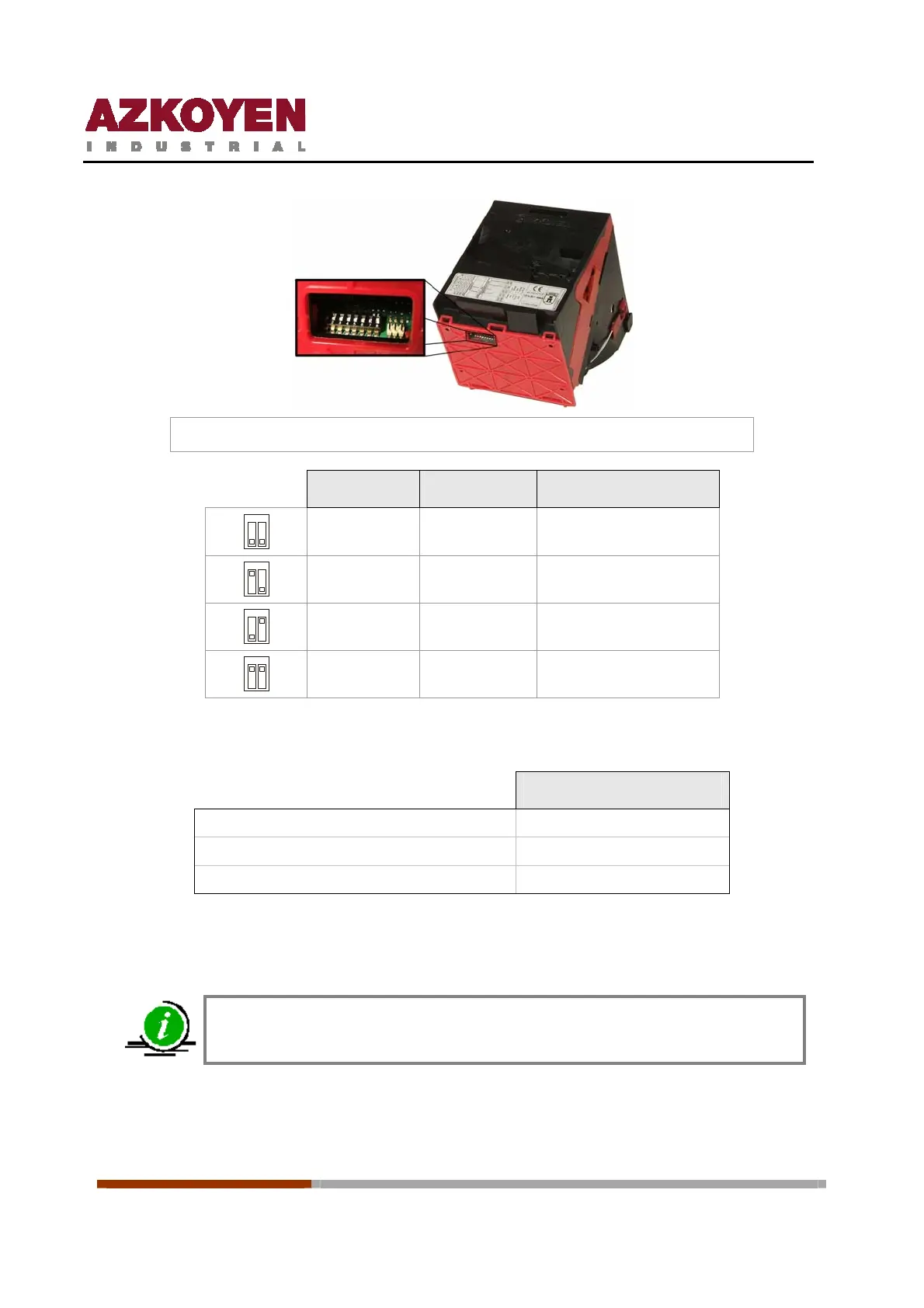

Location of the microswitches
SW1 SW2 Hopper A, B, C
ON
OFF OFF
Hopper A
Top position
ON
ON OFF
Hopper B
Centre position
ON
OFF ON
Hopper C
Bottom position
ON
ON ON Address 4
The current draw of the Hopper U is:
12Vdc – 24Vdc (±10%)
Starting 3 TO ±20%
Standby 50 mA ±5%
Payout of coins 450 mA ±20%
The default change coins are 0.05 – 0.10 and 0.50 €. The value of the coin that paid
out by each Hopper U-II is identified on a sticker on each one of them.
For more technical information see the technical manual of the Hopper U-II
G7 "V" escrow: is a device that holds on to the coins until the user chooses a product; then it
sends them to the cash box or to the refund tray (if no sale has been made).
G8 Refund coin chute.
