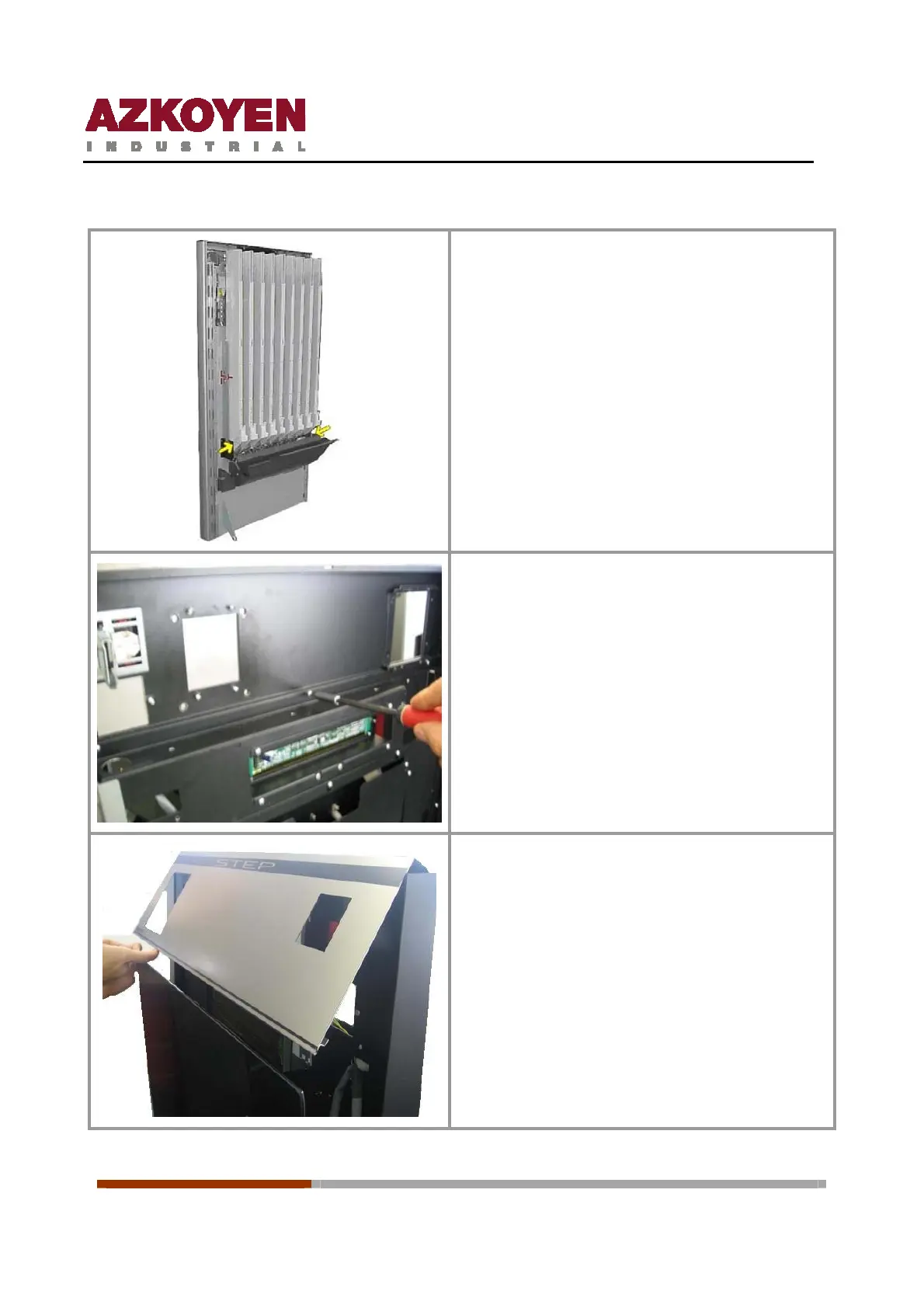

Installation of a Note reader
1. With a Phillips screwdriver, remove the
transport protection screws that are indicated
with the yellow arrows in the figure on the left
and tilt down the grid of channels in the door.
2. With a Phillips screwdriver, remove the
screws of the front panel.
3. The front panel is fixed with three tabs in
three slots in the door
4. Lift panel free of the three fixings.
5. Remove the glass backwards and lift it out of
its fixings.
