B-52 Matrix 1500 - Cables and Connectors

13
6SHFL¿FDWLRQV
&DEOHVDQG&RQQHFWRrV

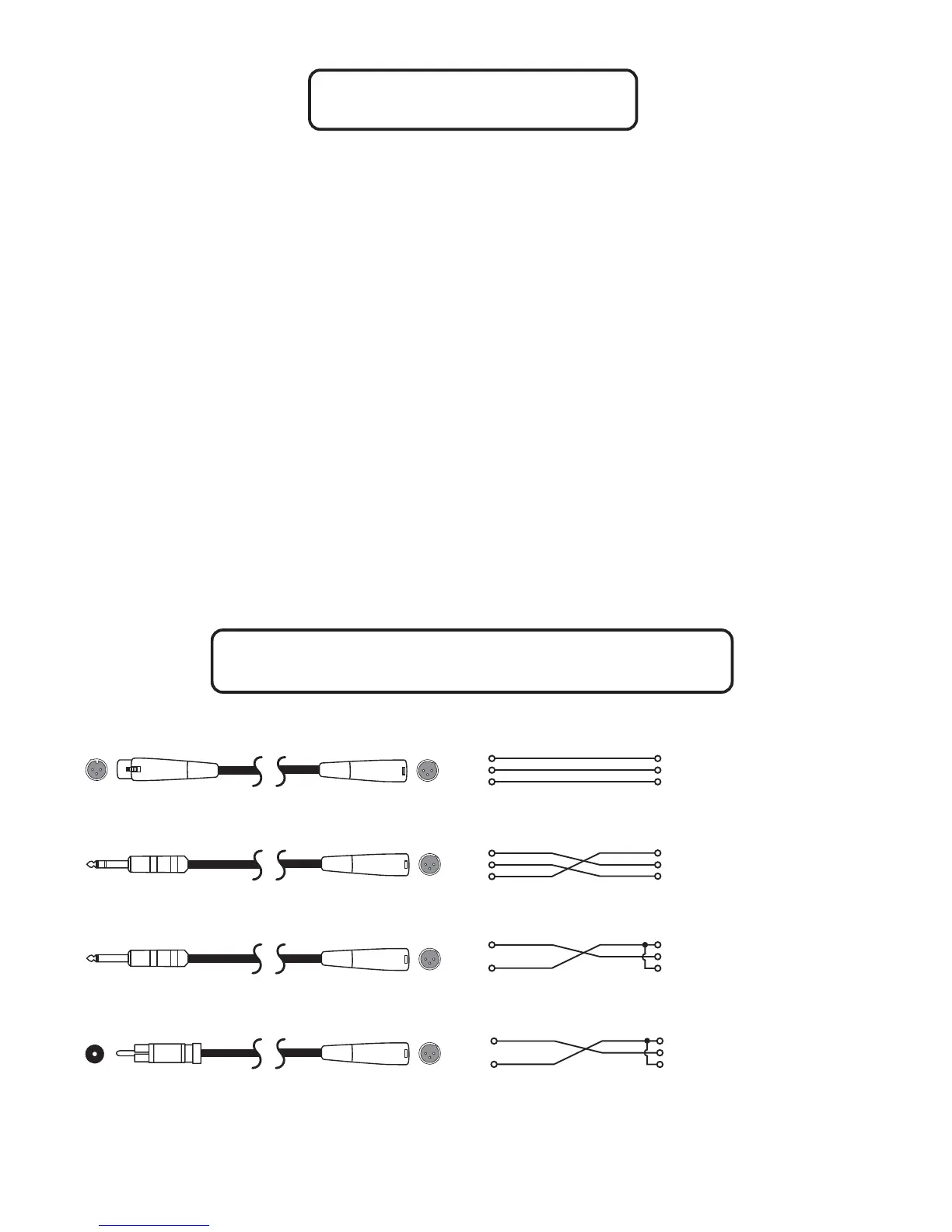

XLR/F to XLR/M balanced cable
1
1 (shield)
2
2
3
3
Balanced XLR mixer
output to MATRIX-1500
speaker
TRS (balanced) ¼" phone jack to XLR/M
Tip
1 (shield)
Ring
2
Sleeve
3
Balanced ¼" mixer
output to MATRIX-1500
speaker
TS (unbalanced) ¼" phone jack to XLR/M
Tip
1 (shield)
2
Sleeve
3
Unbalanced ¼" mixer
output to MATRIX-1500
speaker
XLR/M to RCA (phono) cable
1
Center
2
3
Shield
Unbalanced RCA mixer
output to MATRIX-1500
speaker
B-52 ACTPRO-HD ACTPRO-1515 HD
Power Consumption
(1/8 power pink noise)
5A
Connectors
Input Sensitivity (3) 775mV (0dBu)
Enclosure Black painted birch plywood
Metal handles
Rubber feet
Pole Mounting Cup on Satellite Speakers
Hardware
Grille Powder coated 16 gauge steel
Balanced female XLR inputs
Balanced male XLR link output
RCA Inputs
Casters Heavy Duty 3” Casters
