B-52 US-3000 - Wiring Guides

B-52 US Series Professional Power Amplifiers - Instruction Manual
THE BEAUTY OF POWER
US SERIES AMPLIFIERS

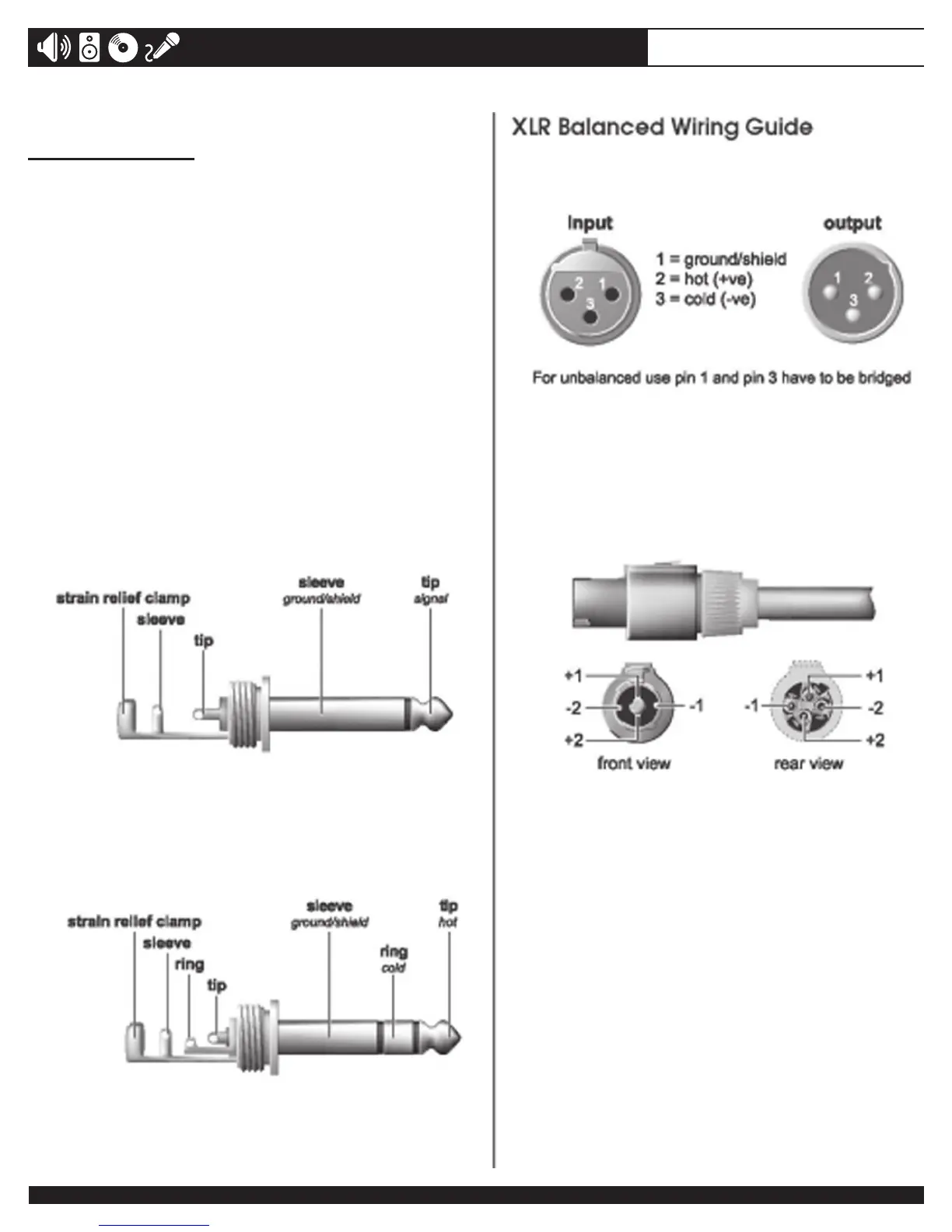

WIRING
There are multiple ways to connect a US-Series ampli-
fier to other audio equipment. The US-Series features
balanced inputs and link outputs, which allows you to
connect both balanced and unbalanced signals.
For speaker connections, you can use either binding
postsorSpeakon™connectors.
NOTE: Use speaker wires with the lowest
gauge available. The thicker the speaker wires
are, the less output signal you will lose.
19
UNBALANCED 1/4” CONNECTOR
BALANCED 1/4” CONNECTOR
SPEAKON
TM
OUTPUT CONNECTOR
NOTE: For connections of unbalanced sources
viabalancedcables/plugs,theringand
sleeve have to be bridged at the TRS plug.
