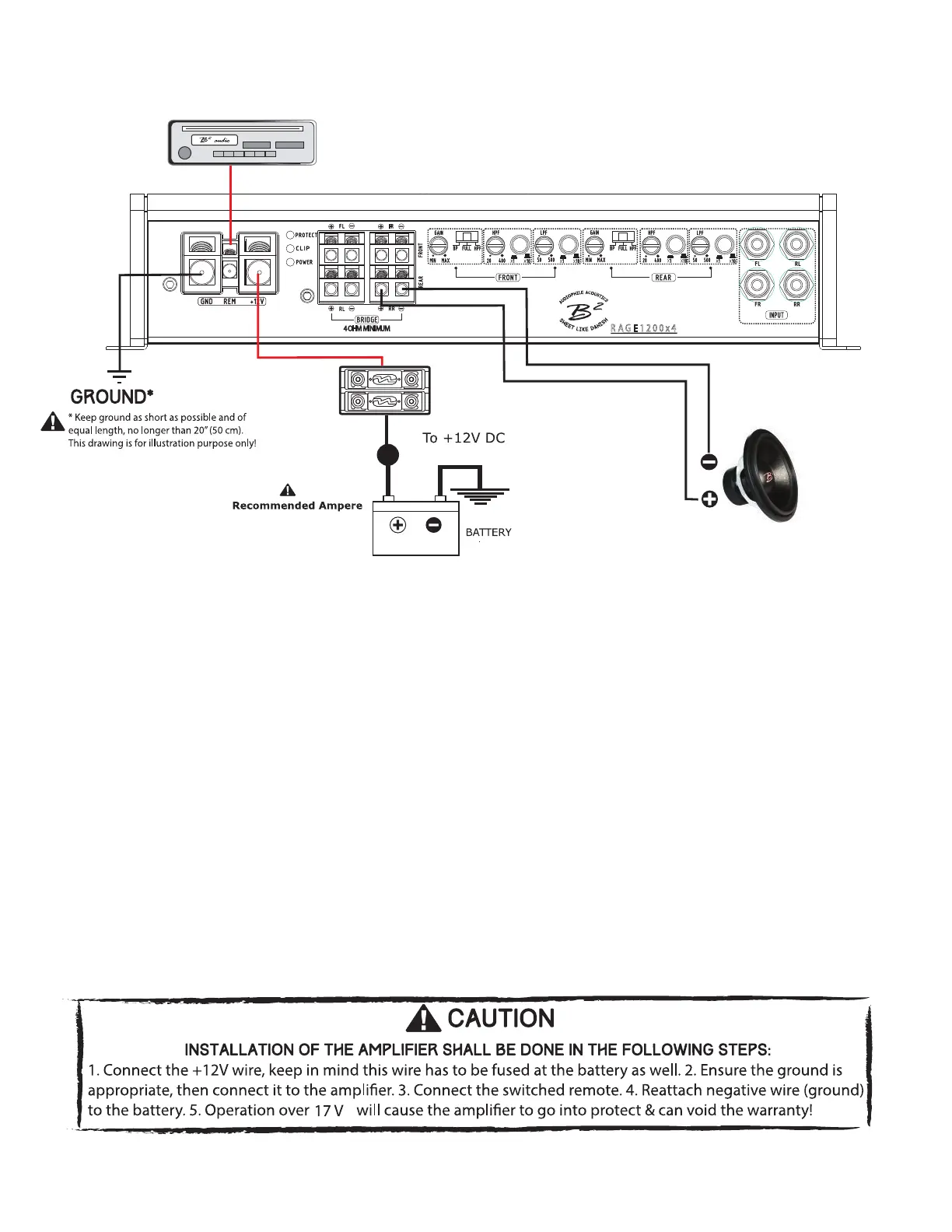

Power / speaker connection
Rage 1200.4
speaker output
8 pin layout speaker terminal. Do not attempt to bridge
externally. The minimum load is 2 Ω stereo or 4 Ω bridged!
Any connection below 2 Ω is not warranted. The amp can’t be
strapped or bridged with another amp in any way either.
For any connections or changes in conguration,
do measure if voltage is still present on terminals prior to doing so. This
will avoid potential shorted circuits.
7
FR
R A G E 1 2 0 0 x 4
x4CH
4OHM MINIMUM
100 A (External fuse)
