5
CAUTION
Panel layout
sld5k
GND (GROUND CONNECTION) + 12V (POWER CONNECTION)
Connects to the vehicle’s chassis. Connects to the positive terminal of the battery.
Keep as short as possible (< 20” / 50 cm) For specied performance 0 Ga cable is required.
Use minimum 0 Ga cable for optimal conditions. Fuses shall be placed within 8” / 20 cm of the battery.
The HI-EF class D design allows for higher output
REM (REMOTE) power, even at low voltage applications.
Connects to switched +12V from the headunit. This sets high requirements to the battery system.
Choose batteries with high CCA ratio.
speaker (speaker output)
Connects to the speaker(s) leads. Ensure polarity is correct
on the speaker and connect to the corresponding
output. NOTE, terminal is internally bridged and minimum
impedance is 1 ohm.
In STRAPPED mode, minimum load is 2 ohm.
Use high quality cable of at least 12 Ga.

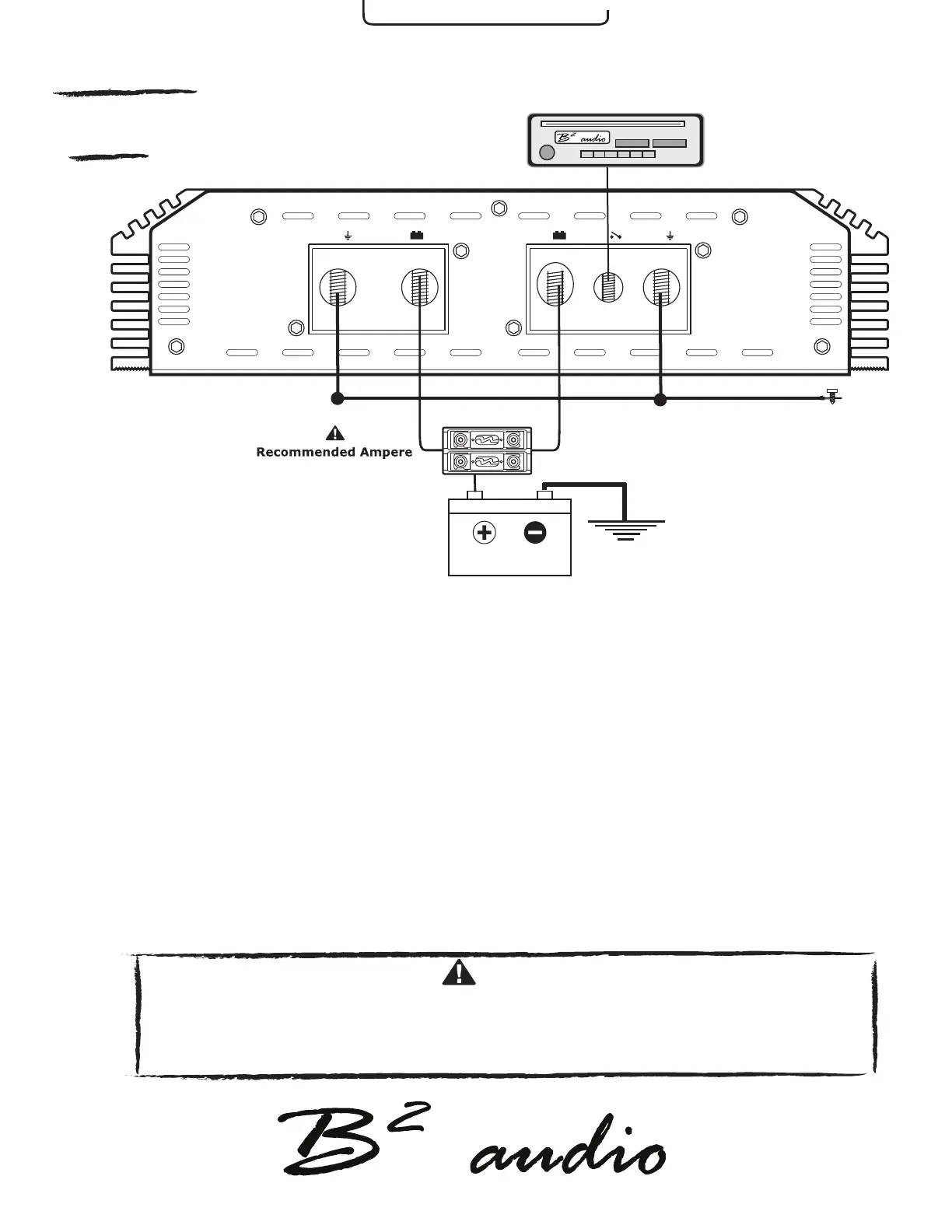

Installation of the amplifier shall be done in the following steps:
1. Connect the +12V wire, keep in mind this wire has to be fused at the battery as well. 2. Ensure the ground is
appropriate, then connect it to the amplier. 3. Connect the switched remote. 4. Reattach negative wire (ground)
to the battery. 5. Operation over 18 V will cause the amplier to go into protect & can void the warranty!
BATTERY
Head unit
* Keep ground as short as possible, no longer
than 20” (50 cm).
500A (External fuse)
POWERPOWER
GND
B+ B+
REM
GND
GROUND*
