B2 Audio SLD5K - Page 9

9
SLD5k

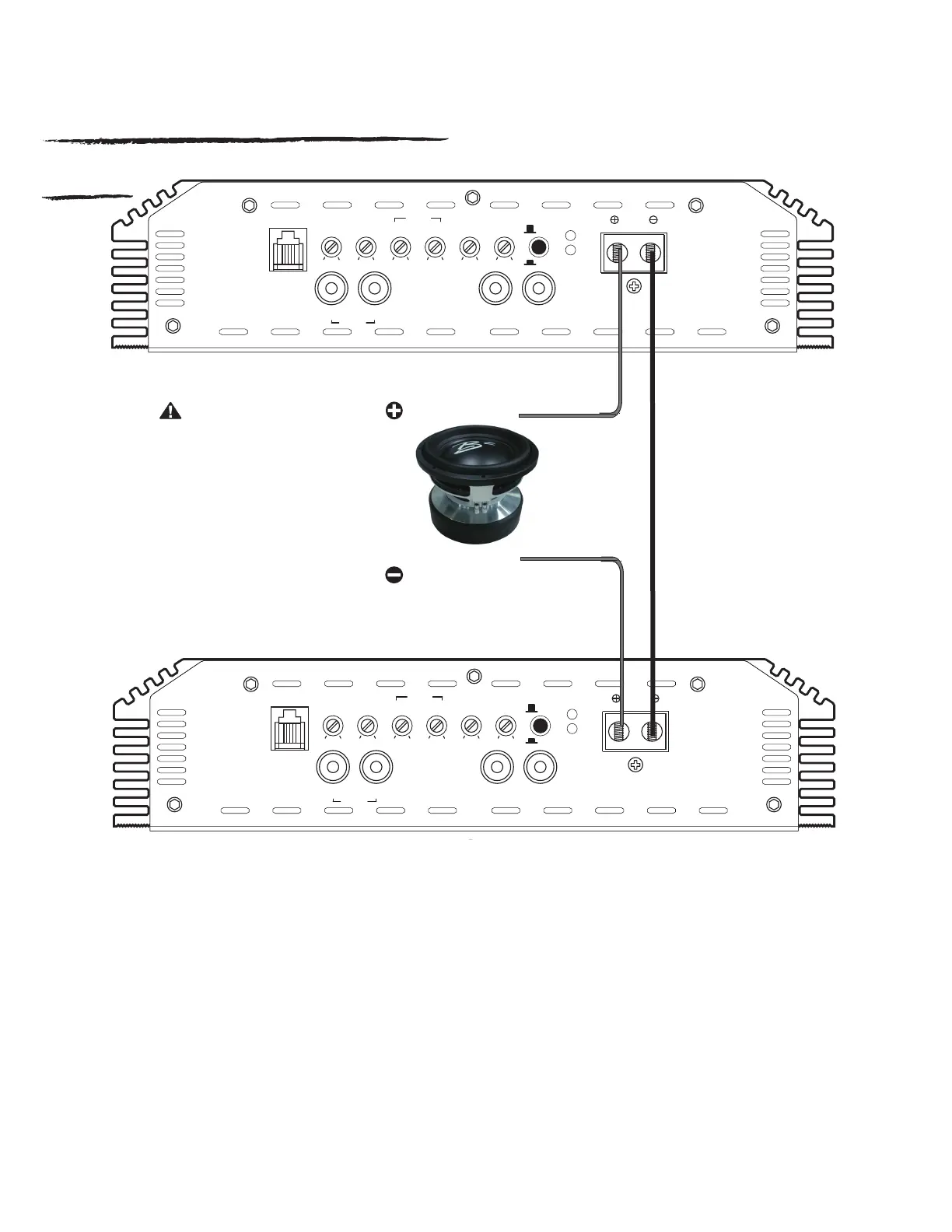

strapped Speaker Wiring Diagram
*Leave Master unpressed
PROTECT
POWER
REMOTE
BOOST
FREQ.
LPF PHASESUBSONICGAIN
BASS
SLAVE
OUTPUT
MASTER
INPUT
SLAVE
INPUT
R
L
0.2V
6V
10Hz 50Hz 0dB
9dB
30Hz 90Hz 35Hz 250Hz 0 180
MASTER
SPEAKER
PROTECT
POWER
REMOTE
BOOST
FREQ.
LPF PHASESUBSONICGAIN
BASS
SLAVE
OUTPUT
MASTER
INPUT
SLAVE
INPUT
R
L
0.2V
6V
10Hz 50Hz 0dB
9dB
30Hz 90Hz 35Hz 250Hz 0 180
MASTER
SPEAKER
Speaker Impedance 2~ 16 ohm
Linking or strapping makes 2 ampliers work as a single amplier.
This conguration will near double the rated output power.
Follow the instructions carefully as it can cause harm to your system if done incorrect.
Speaker impedance 2 Ohm ~ 16 Ohm
Loads under what is specied will cause excessive heat & the amplier
will reach thermal at a faster rate & will eventually go into protect.
Strapped impedance load under 2 ohm is not warranted!
slave
To link the master and slave amplier speaker connection follow the steps below.
step 1.
Run the
positive (+) speaker cable from the master amplier’s speaker output to the
positive terminal (+) of the subwoofer.
step 2.
Run the positive (+) speaker cable from the slave amplier’s speaker output to the
negative terminal (-) of the subwoofer.
Step 3.
Connect both ampliers together by running a cable from negative speaker output on master amplier
to negative speaker output on slave amplier. Use minimum 8 GA cable for connecting the ampliers.
*Press the switch on the slave for
strapped mode
master
