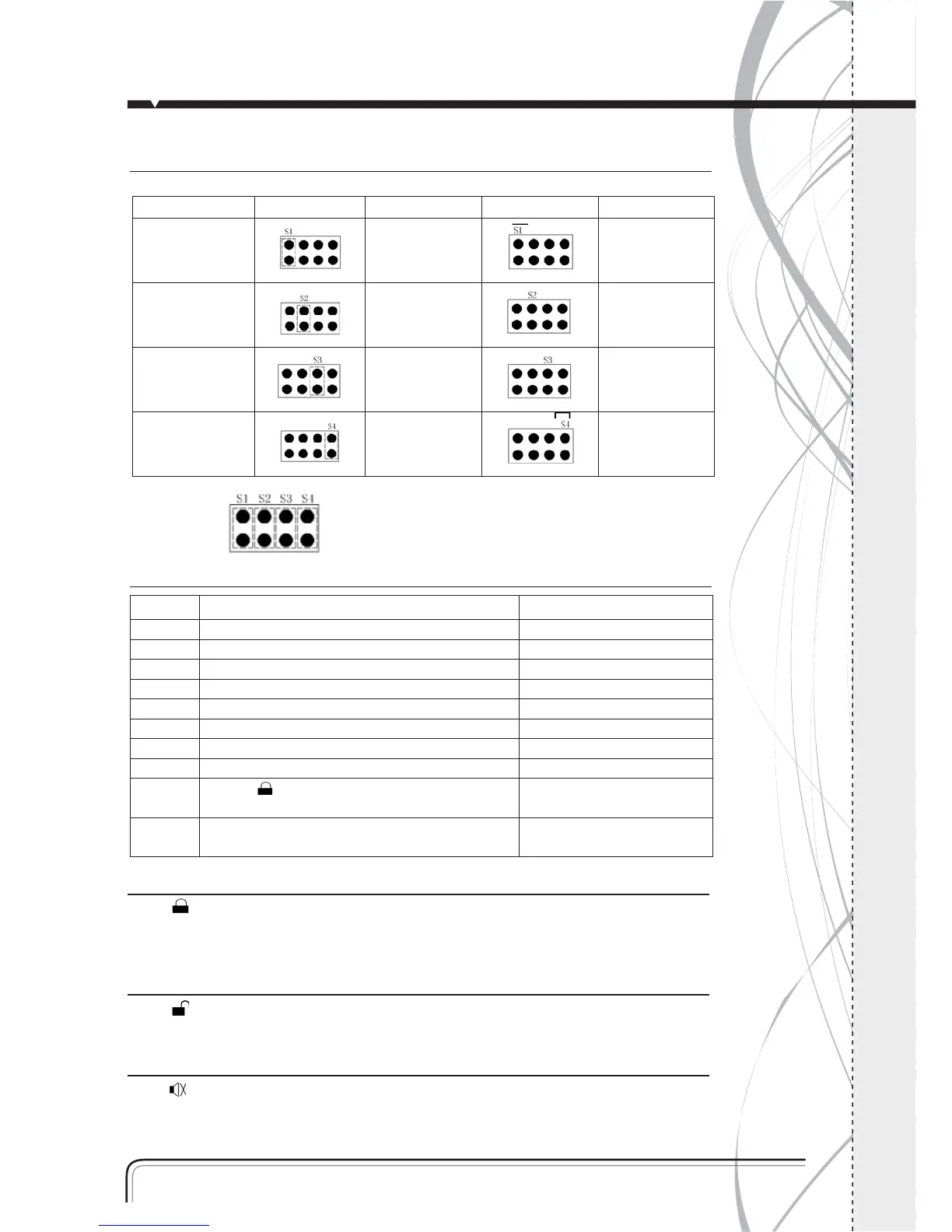

CHOICES OF JUMPER FUNCTION:
ITEM JUMPER FUNCTION JUMPER FUNCTION
S1 Power Lock /
Air Lock
Power
Lock(0.5sec.)
Air Lock(4sec.)
S2 Unlock of One
Pulse or Double
Pulses
One Pulse
Double Pulses
S3 Anti-hijack
Remote
Anti-hijack
Auto Anti-hijack
S4 Siren / Horn
Siren
Horn
Notice:
With as factory setting before delivery.
LED INDICATION:
ITEN SYSTEM STATUS LED STATUS
1 Armed Flash twice each 2 sec
2 Off Disarmed
3 Auto armed Flash slowly
4 Learning code valet mode Keep lighting
5 Car be impacted (in disarmed) Flash 3 times each 2 sec
6 Car be opend (in disarmed) Flash 4 times each 2 sec
7 Car be illegally started the engine(in disarmed) Flash 5 times each 2 sec
8 Enter into auto arming Light on 2 sec then off 2 sec
9
Press
to exit anti-hijack within 15 sec. of the
function work.
Flash quickly
10
Press reset switch to exit anti-hijack only
after 15 sec.of the function work
Flash once each 2 sec
SOUND & LIGHT ARMING:
Press once, siren chirps once, parking lights flash once, central lock will lock, LED
flashes slowly,disable engine starter, meanwhile auxiliary signal outputs 12 sec (negative
trigger works), the system will enter into sound and light arming mode
.
DISARM SOUND & LIGHT ARMING:
Press once to disarm sound and light arming.Siren chirps twice,parking lights flash 3
times, central lock will unlock, LED off.
SILENT ARMING:
Press once, parking lights flash once, central lock will lock, LED flashes slowly, disable
engine starter, meanwhile auxiliary signal outputs 12 sec(negative trigger works), The
system enter into silent arming mode.
