BACA SYSTEMS Miter X - Operation; Preparation and Setup

5
V1.05 Revised 03/16/2021

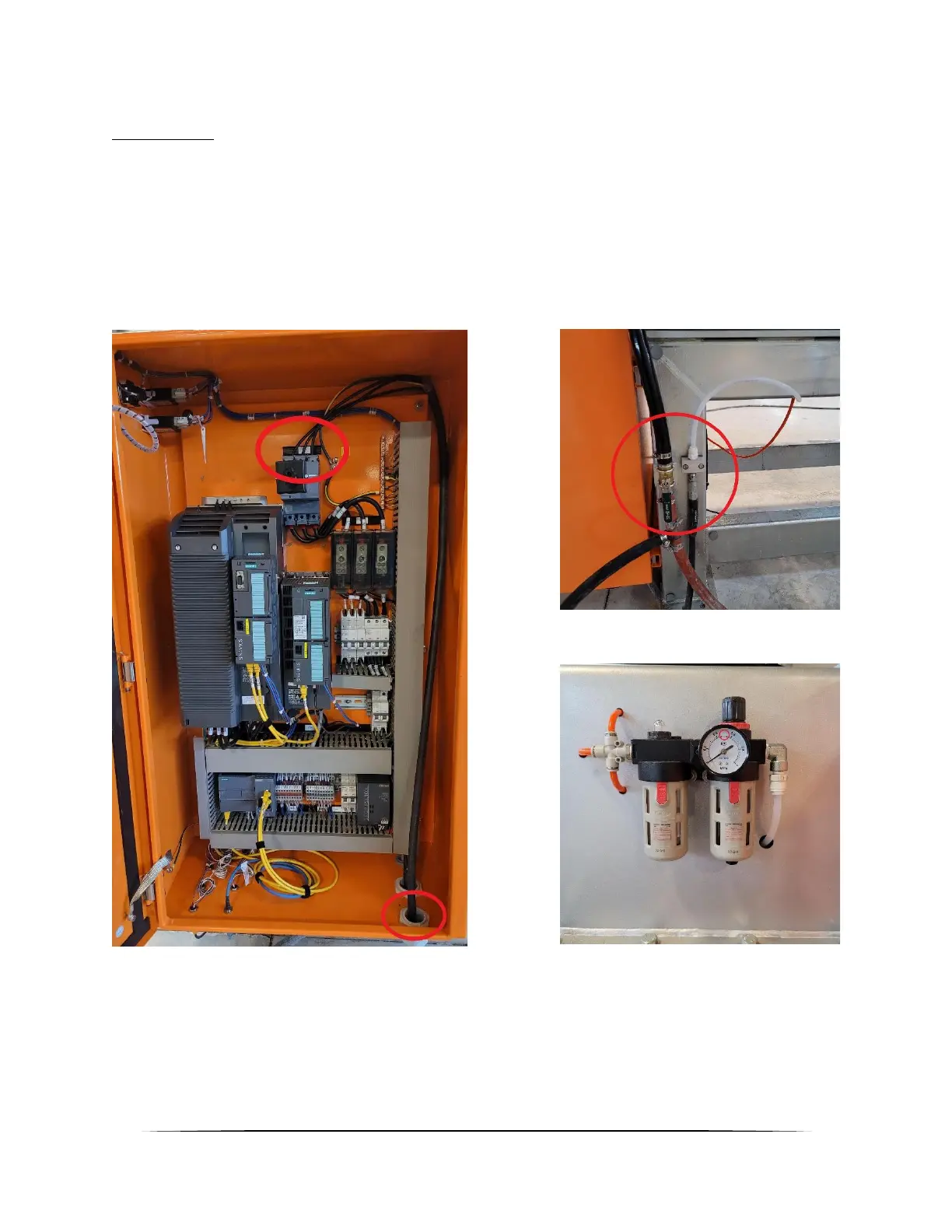

Figure 1.1.1
Figure 1.1.2
Figure 1.1.3
Operation
Preparation
- Connect 220V 3P 60Hz to main disconnect through the cord grip. Tigthen the cord grip to
ensure the cable doesn’t move. (Figure 1.1.1)
- Remove zip ties on Cat-Track and red shipping brackets.
- Connect minimum of 80PSI air connection to the regulator. Make sure the regulator is set to
80PSI to 0.5 Mpa. (Figure 1.1.2)
- Connect water connection to water connection on the back of the machine. (Figure 1.1.3)
