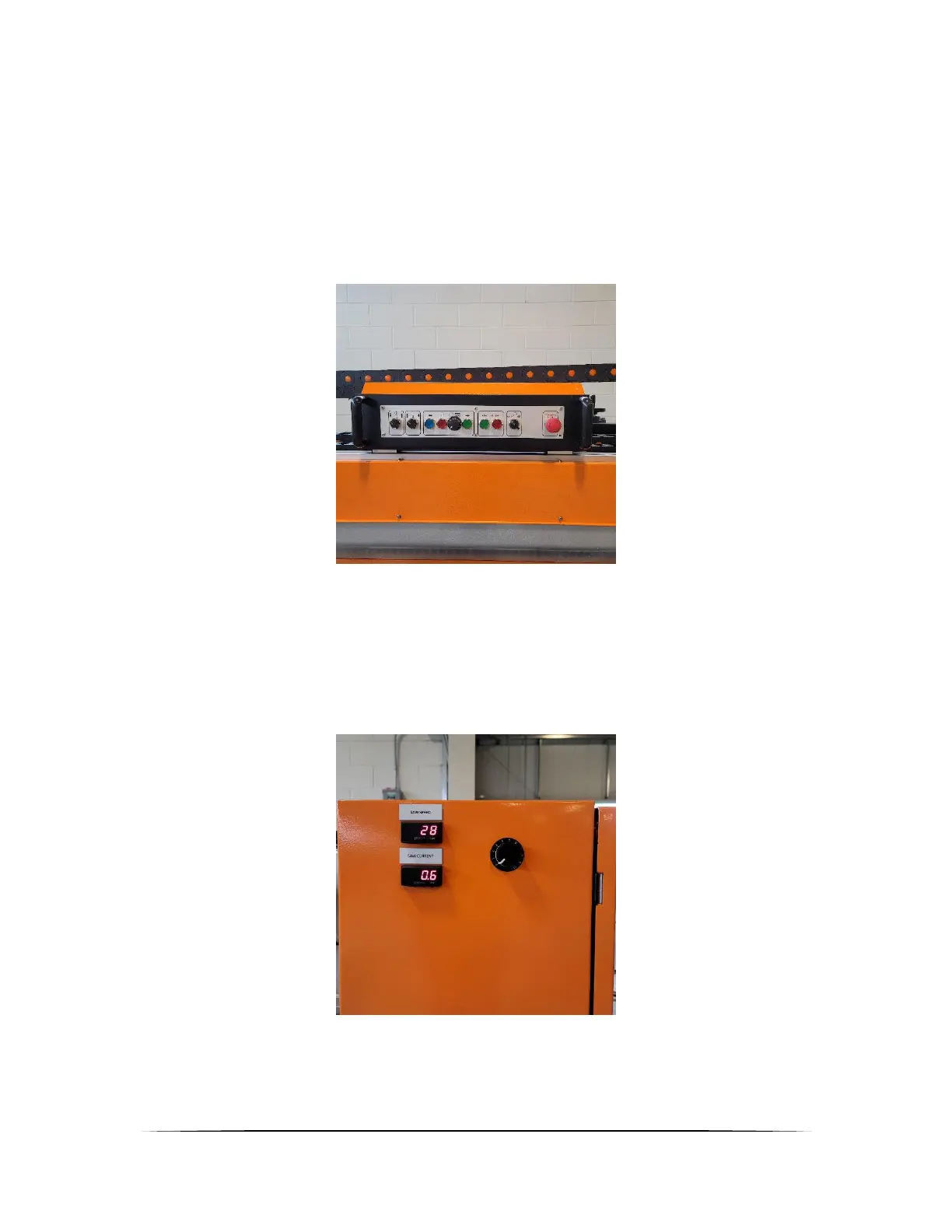

Figure 1.3.1
Figure 1.3.2
o Water valve
▪ Turn on the water valve
o E-Stop
▪ Stop the saw movement, cutting unit movement, raise of the roller and the
lowered of the clamp.
- Figure 1.3.2 represent the analog display for saw information and saw speed
adjustment. It will show you the current and the speed of the VFD.
