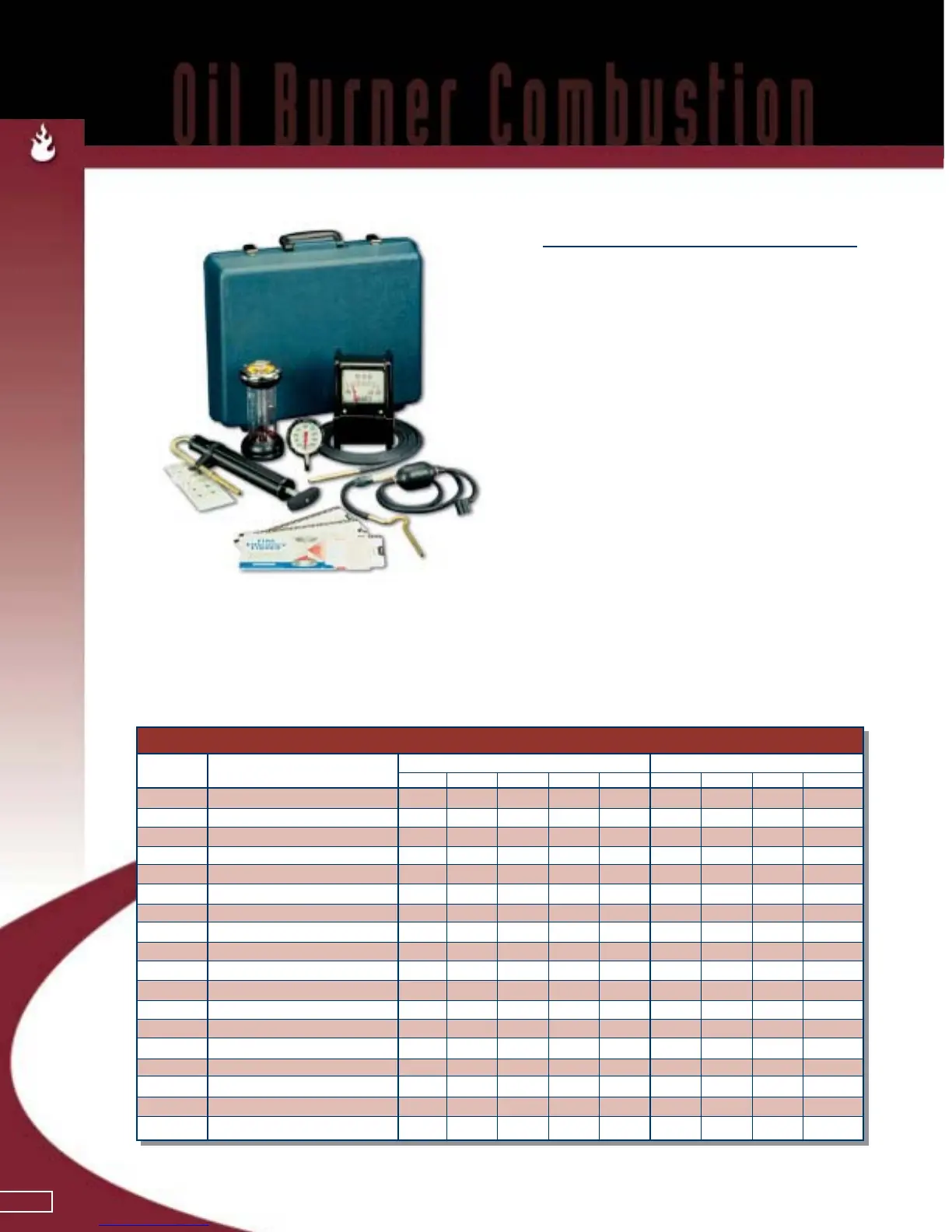

Oil Burner Combustion
Testing Kits
Combustion & Environmental Analyzers
COMPONENTS
1. Fyrite
®
CO
2
Indicator – The Fyrite
®
Carbon
Dioxide Indicator measures the percent CO
2
in a
flue gas sample.
2. True Spot
®
Smoke Tester and Oil Burner
Smoke Scale – With the True Spot
®
Smoke
Tester and Smoke Scale, you can get an accurate
indication of smoke content in flue gas.
3. Fire Efficiency Finder/Stack Loss Slide Rule
– The Fire Efficiency Slide Rule is a quick and easy
way of determining combustion efficiency and
stack loss from the results of the CO
2
and stack
temperature tests.
4. Tempoint
®
Dial Thermometer – High stack
temperatures are cause for special concern and
may indicate a serious condition.
5. Model MZF Draft Gauge – The intensity of draft
determines the rate at which combustion gases
pass through the boiler or furnace. With the MZF
Draft Gauge, you can determine if draft is
excessive or insufficient.
6. Draftrite
®
Draft Gauge – In some Bacharach
®
Oil Burner Combustion Testing Kits, the hand-held
Draftrite
®
replaces the Model MZF Draft Gauge for
measuring overfire and draft.
7. Carrying Case – Instruments for Bacharach
®
Oil
Burner Combustion Testing Kits come in a rugged,
plastic carrying case.
*Export Kits are similar to standard kits except Fyrite
®
Indicators are shipped without fluid installed. Draftrite
®
, MZF Draft Gauge,
Manometer and Tempoint are supplied metric in most instances. Fluid for export kits must be purchased separately in three bottle cartons.
Bacharach
®
Combustion Testing Kits continue to offer you the
most economical means of testing for oil burner efficiency during
installation or servicing. Each kit is designed with the service
technician in mind and contains the instruments listed in the
ordering chart.
ORDERING INFORMATION
ITEM KIT STANDARD KIT EXPORT KIT*
NO. CONTENTS
10-5014 10-5002 10-5022 10-5036 10-5050 10-5150 10-5023 10-5037 10-5051
10-5064 Fire Efficiency Finder ■■■■■■
10-0100 Carrying Case (large) ■ ■■■■■■■
11-0121 Moisture Absorb. Material ■■■■■■■■■
11-7029 Sampling Hose Assembly ■■■■■■■■■
11-7032 Fyrite
®
CO
2
20%-Filled ■■■■■
12-7014 Tempoint Therm. 1000°F (6” Stem) ■■■■ ■
13-7019 MZF Draft, +.05 to -.25”WC ■■ ■
10-0099 Carrying Case (small) ■
13-3000 Draftrite
®
, +.10 to -.14”WC ■■
21-7006 True Spot
®
Smoke Tester ■■■■■■■
12-7018 Tempoint Therm. 1000°F (12” Stem) ■
13-7021 MZF Draft, +.05 to -1.0”WC ■
10-5175 Stack Loss Calculator ■■■
11-7031 Fyrite
®
CO
2
20%-Unfilled ■■■■
12-7015 Tempoint Therm. 540°C (6” Stem) ■■
13-7020 MZF Draft, +1.0 to -2.5mmWC ■■
13-7018 MZF Draft, +1.0 to -5mmWC ■
12-7017 Tempoint Therm. 540°C (12” Stem) ■
