11. CONNECT FILTER’S “FLOW IN” SIDE: Run tubing from the “IN side” of the charcoal filter to a location that is
outside of the structure (machinery room). Locate it in an area where the line end filter (a) can be easil
y
a
ccessed for replacement, and (b) where it will remain dry and free from direct rain or excessive moisture.
This is the optimum installation scenario. See Figure 6.
If this cannot be accomplished, the end of line filter can be mounted inside (near the monitor and charcoal
filter) in an accessible area to allow easy replacement. NOTE: In the case of indoor filter installation, the
monitor must be put in service mode when refrigerant is released (e.g., during maintenance) to prevent
premature purge filter contamination. See Figure 7.

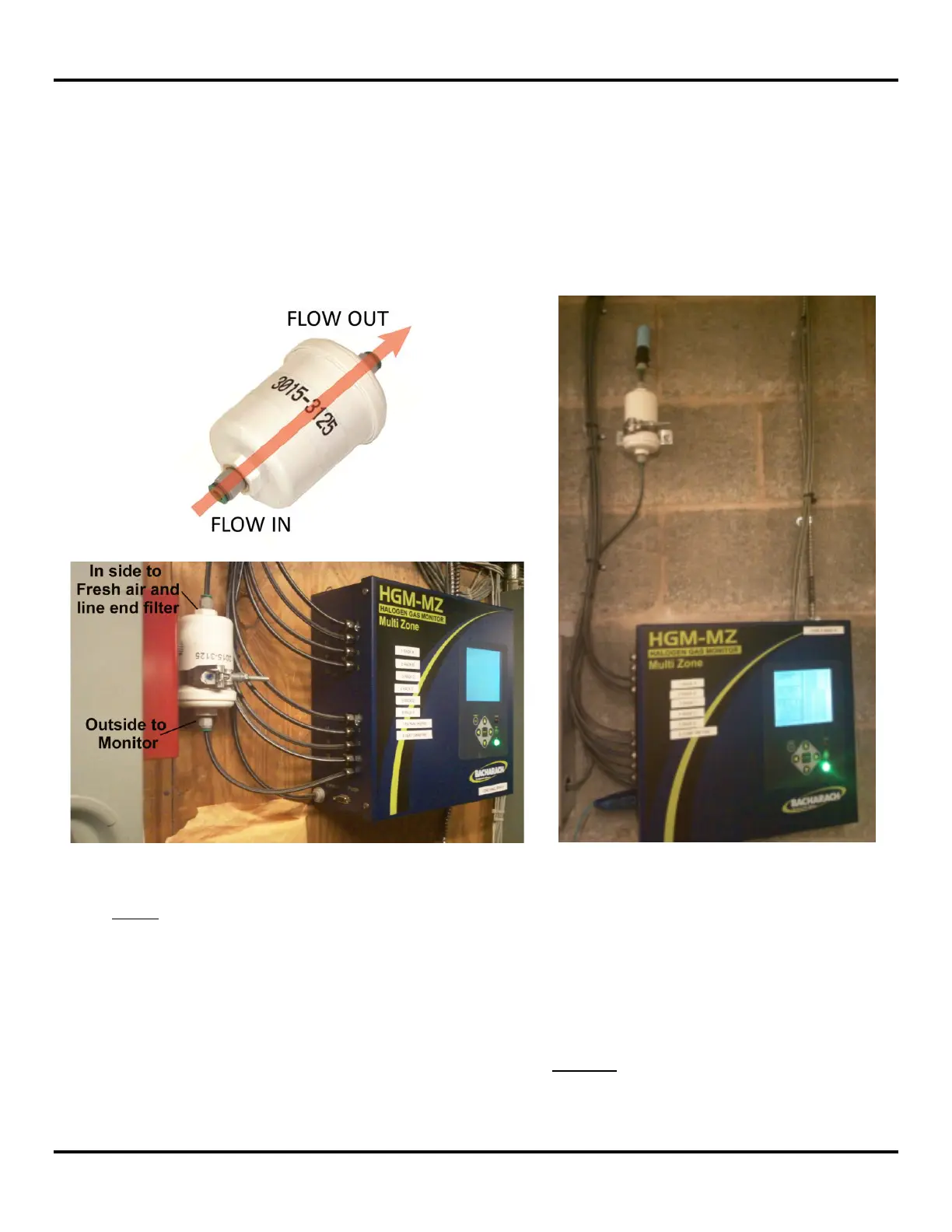

Figure 6. Outdoor Filter Mounting Example (Optimum) Figure 7. Indoor Filter Mounting Example
NOTE:
a. If you are mounting the purge pickup outside the structure, you must place the tubing in an area
away from the elements in a “secure area that is out of the reach of rain and snow” and is
accessible for filter changes.
b. In the case of the CO
2
monitor, you must mount the pickup away from CO
2
sources (i.e., gas-fired
appliance stacks, rack room, store ventilation, truck bays, etc.) which can skew the purge baseline.
c. If mounting a purge pick up inside the structure, you must not have prolonged background ambient
refrigerant contamination as this will cause the charcoal purge filter to fail prematurely (refer to
fault code 0100).
