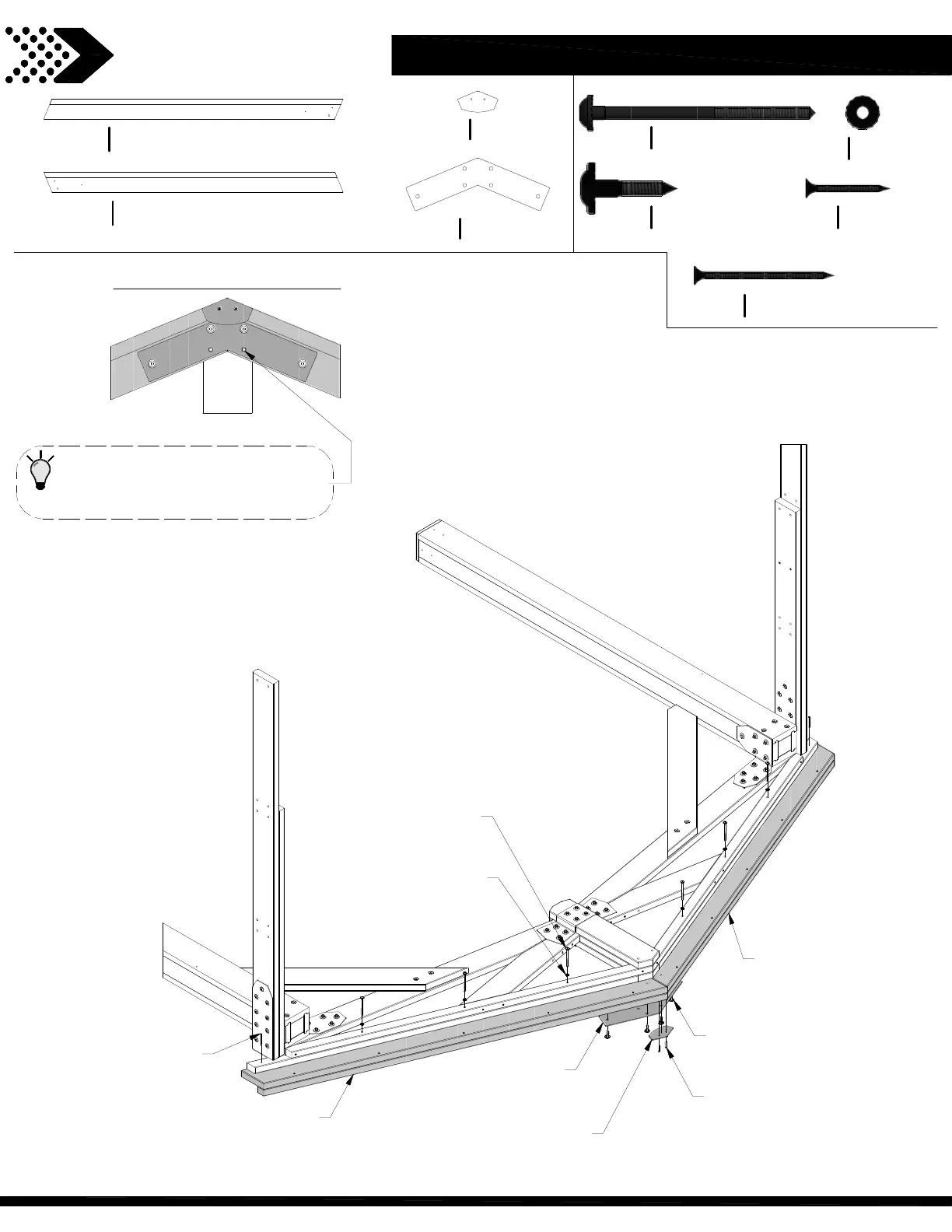

STEP 6
COMPLETE THIS STEP TWICE
LAG SCREW WH BLK
1/4x4
(x12)
H100564
LAG SCREW
WH BLK
5/16x1 1/2
(x8)
H100471
SCREW PFH BLK
8x1 1/2
(x4)
H100200
WASHER LOCK
EXT BLK
6x15
(x12)
H100405
SCREW PFH BLK
8x2-1/2
(x4)
H100201
GABLE BRACKET
(x2)
A4M01130
PEAK SEAM
BRACKET
(x2)
A4M01147
GP1
(x2)
GABLE PANEL - W2A02871
2 13/16"x5 1/4"x80 3/16" (72x134x2037)
GP2
(x2)
GABLE PANEL - W2A02872
2 13/16"x5 1/4"x80 3/16" (72x134x2037)
TEMPORARILY ADD LONG BOLTS
TO HELP ALIGN WOOD PARTS.
µƻˠ ʹɮˠʺ
µDĵrƻŗrĵ
µƻˡ ʹɮˠʺ
µDĵrƻŗrĵ
ˣ˟ˤ ʹɮ˥ʺ
ɟǢËrNJ˚˥ɮˠˤ
ˤ˥ˣ ʹɮ˥ʺ
ĵµǢNNJrɟ˚ˣ˃
ˡ˟˟ ʹɮˡʺ
ǢNNJrɟ˚ˠˠˀˡ˃
ˣ˦ˠ ʹɮˣʺ
ĵµǢNNJrɟ˚ˠˠˀˡ˃
ˡ˟ˠ ʹɮˡʺ
ǢNNJrɟ˚ˡˠˀˡ˃
ˠˢ˟ ʹɮˠʺ
µDĵrDNJNħrǻ
ˠˣ˦ ʹɮˠʺ
ƻrħǢrōDNJNħrǻ
FRONT VIEW
23
