Phase Notes
• Assemble with hardware as shown.
Frame Assembly
Phase 4

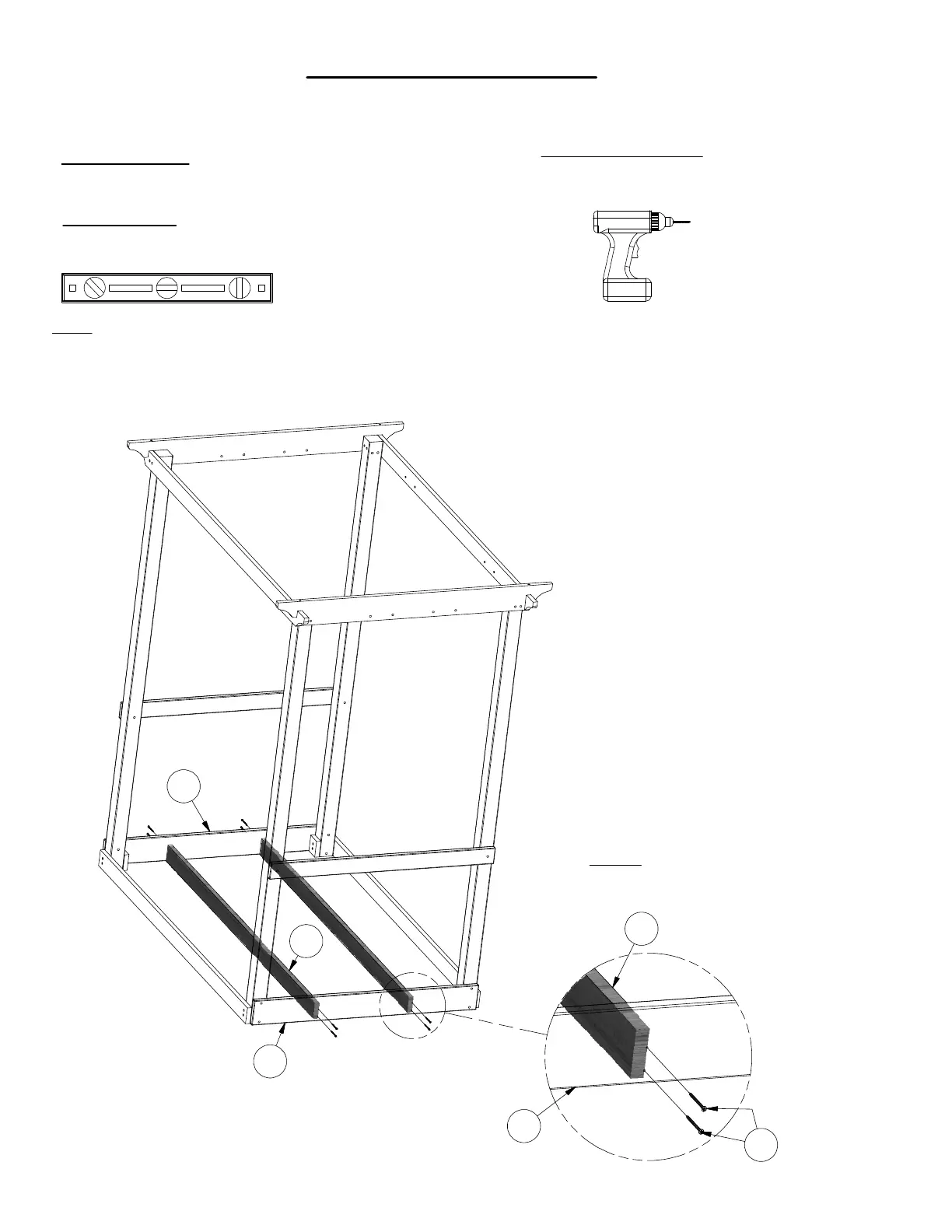

Step 1: Pre-drill & Attach 'H3' Floor
Support to 'G1' Ground Board with
screws 'BT', as shown.
Parts needed:
• (2) H3 - FLOOR SUPPORT - W101674
Hardware needed:
• (8) BT - SCREW PFH 8x2-1/2 - H100090
H3
G1
BT
H3
G1
G1
Note: It is vital that the structure
be level before and after each
phase of assembly.
To prevent board splitting, you
must pre-drill each board with
a 1/8" drill bit, before attaching.
