Frame Assembly
Phase 5
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (2) H8 - FLOOR BOARD - W101675
• (1) T1 - FLOOR BOARD - W101703
• (19) M2 - FLOOR BOARD - W101676
Hardware needed:
• (176) CK - SCREW PFH 8x2 - H100111

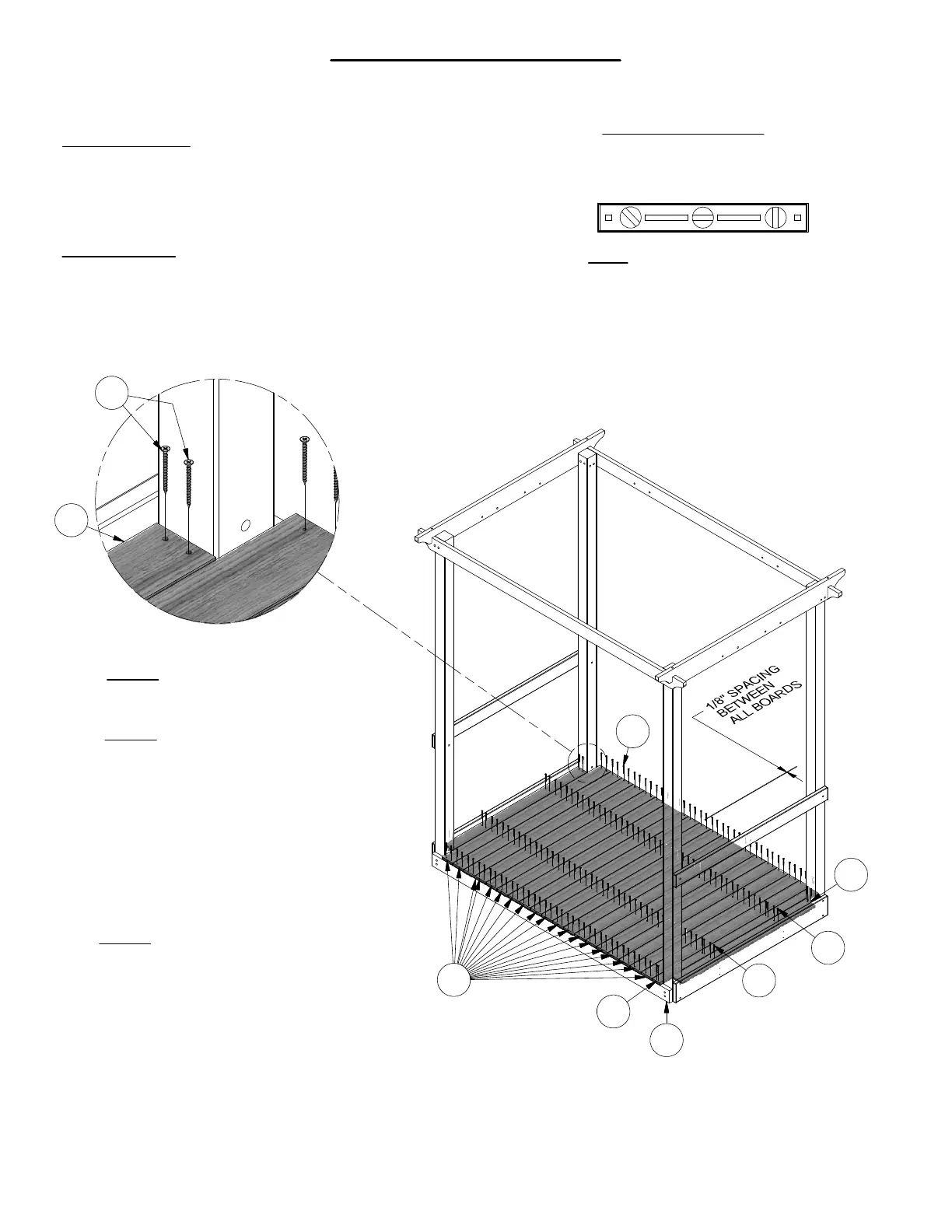

Step 1:
Attach 'H8' Floor Board to 'H14'
Floor Board Support & 'H3' Floor
Support using Screws 'CK', as shown.
H8
CK
M2
CK
CK
H8
H4
CK
Note: It is vital that the structure
be level before and after each
phase of assembly.
Step 2:
Attach 'T1' Floor Board to 'H4'
Ground Board & 'H3' Floor Support
using Screws 'CK', as shown.
Step 3: Attach 'M2' Floor Board to 'H4'
Ground Board & 'H3' Floor Support
using Screws 'CK', as shown.
T1
To Next Page
