Backyard Discovery ARLINGTON - Page 4

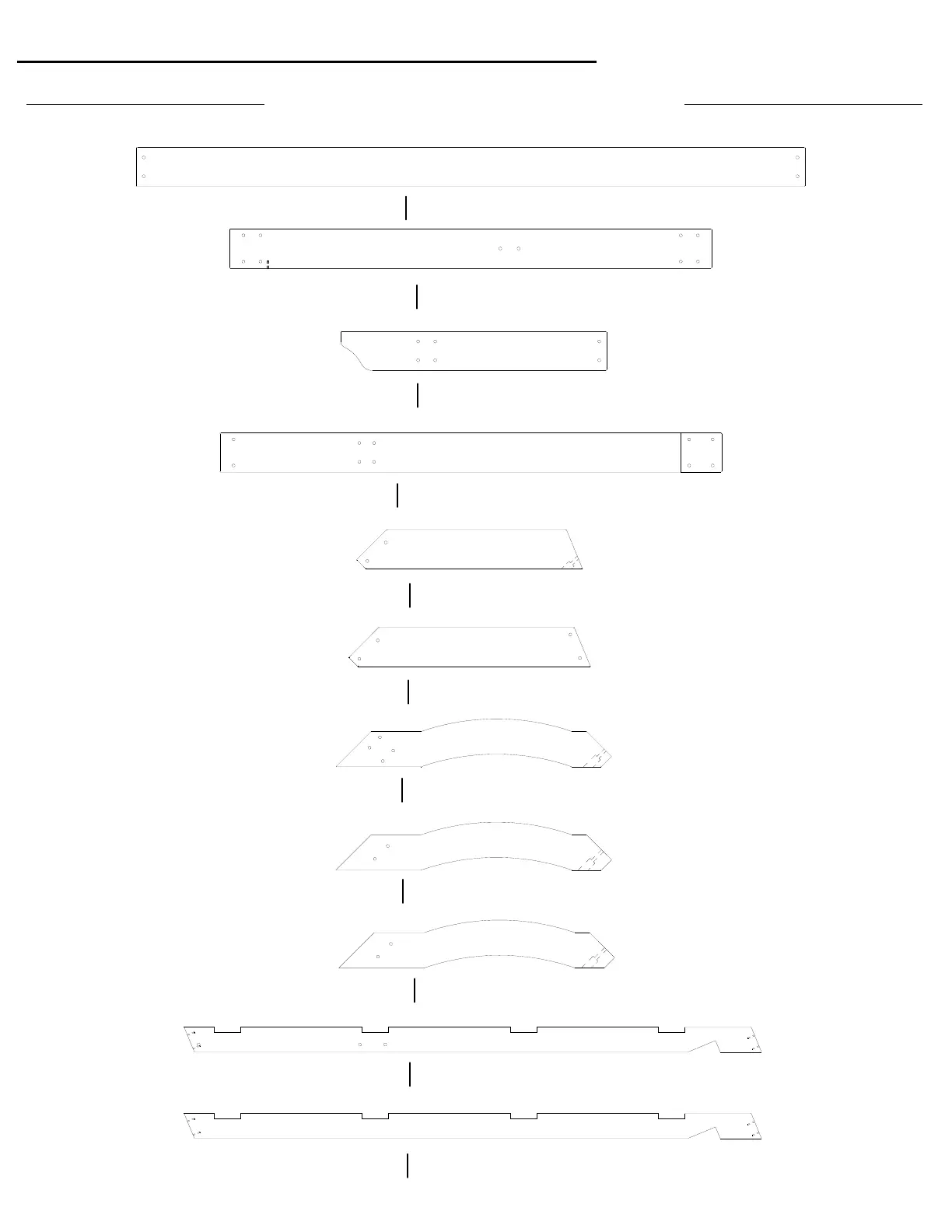

Wood Components (Not to Scale)
OWNER'S MANUAL - PARTS IDENTIFICATION
BEAM - W4L13661
1 3/8"x5 1/4"x89 1/2" (36x134x2274)
D1
(x2)
BEAM - W4L13606
1 3/8"x5 1/4"x64 5/8" (36x134x1640)
D2
(x8)
BEAM - W4L13596
1 3/8"x5 1/4"x35 5/8" (36x134x904)
D3
(x4)
BEAM - W4L13660
1 3/8"x5 1/4"x67 1/4" (36x134x1707)
D4
(x4)
ANGLE BRACE - W4L16839
1 3/8"x5 1/4"x30 1/
4" (36x134x769)
D5
(x4)
ANGLE BRACE - W4L13607
1 3/8"x5 1/4"x32 3/8" (36x134x823)
D6
(x4)
OUTSIDE RAFTER - W4L13604
1 3/8"x3 3/8"x77 3/8" (36x86x1965)
E1
(x4)
RAFTER - W4L13603
1 3/8"x3 3/8"x77 3/8" (36x86x1965)
E2
(x8)
ANGLE BRACE - W4L16840
1 3/8"x6 3/8"x36 7/8" (34x163x93
8)
D7
(x8)
ANGLE BRACE - W4L16841
1 3/8"x6 3/8"x36 7/8" (34x163x9
38)
D8
(x7)
CORBEL WITH TAG- W2A03480
1 3/8"x6 3/8"x36 7/8" (34x163x938)
CA01
(x1)
4
