Backyard Discovery ASHLAND - Page 12

PURLIN - W4L12978
1 3/8"x1 3/8"x69 5/8" (36x36x1768)
P01
(x12)
SLOTTED JOIST - W4L12976
1 3/8"x5 1/4"x114" (36x134x2896)
D13
(x8)
SHORT ANGLE BRACE - W4L12981
1 3/8"x5 1/4"x29 3/4" (36x134x755)
D12
(x4)
TABLE TOP RAIL - W4L12989
1 3/8"x2"x18 5/8" (36x50x473)
F01
(x2)
TABLE TOP TRIM - W4L12985
1"x3"x8 1/2" (24x76x216)
H01
(x4)
CORD COVER - W4L12987
1"x2 3/8"x7 7/8" (24x60x201)
J01
(x1)
LONG ANGLE BRACE - W4L12980
1 3/8"x5 1/4"x37 1/8" (36x134x942)
D11
(x8)

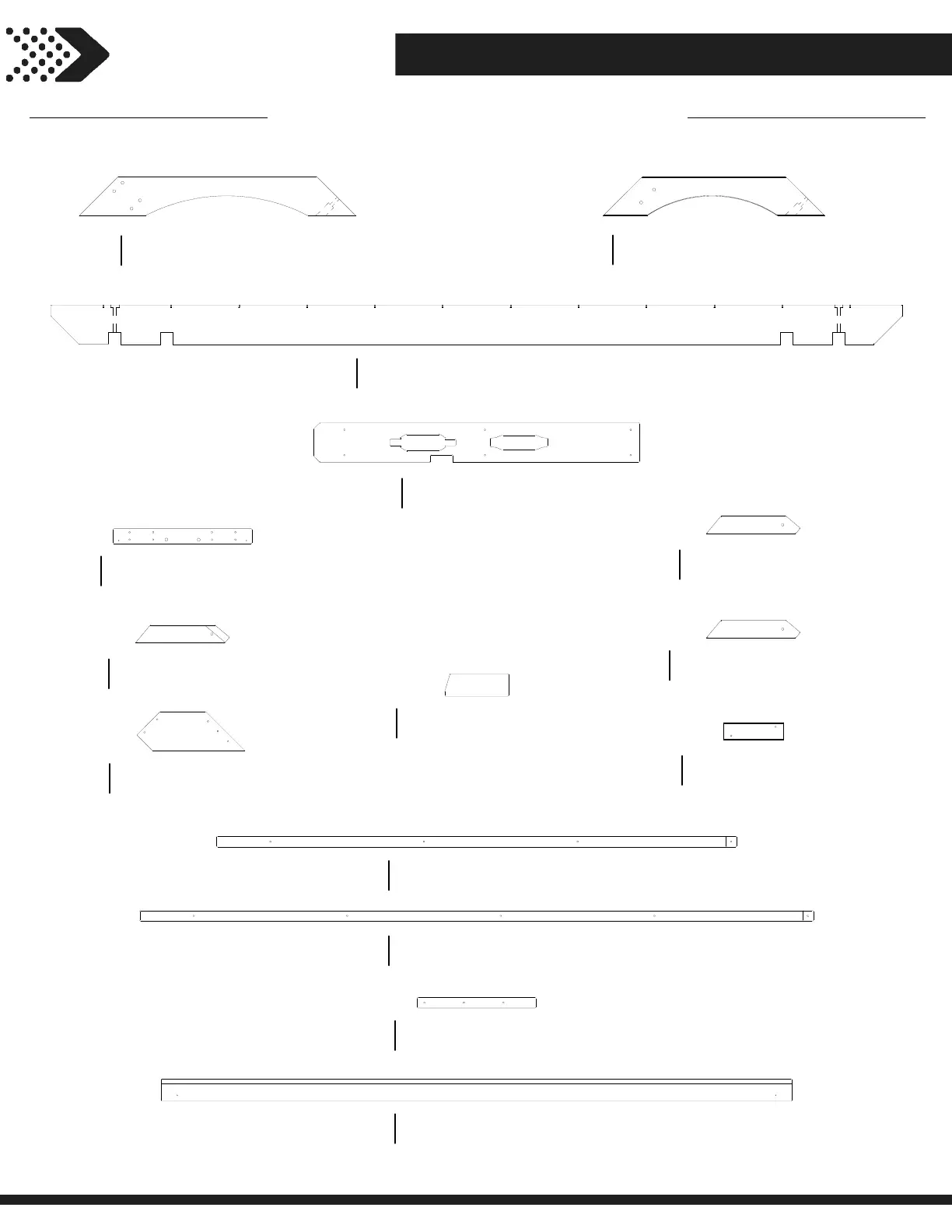

Parts Identification
Wood Components (Not to Scale)
Owner's Manual
CORD COVER - W4L12986
1"x5 1/4"x43 5/8" (24x134x1109)
D14
(x1)
ANGLE BRACE - W4L12991
1 3/8"x2 3/8"x12 5/8" (36x60x320)
F03
(x1)
ANGLE BRACE - W4L12995
1"x5 1/4"x16 5/8" (24x134x369)
G02
(x4)
CLEAT - W4L12997
1 3/8"x1 3/8"x15 7/8" (36x36x403)
P03
(x2)
TABLE TOP RAIL - W4L12984
2"x3"x84 1/2" (50x76x2146)
W01
(x2)
ANGLE BRACE - W4L12992
1 3/8"x2 3/8"x12 5/8" (36x60x320)
F04
(x2)
ANGLE BRACE - W4L12988
1 3/8"x2 3/8"x12 5/8" (36x60x320)
F02
(x1)
PURLIN - W4L12979
1 3/8"x1 3/8"x90 1/4" (36x36x2291)
P02
(x12)
