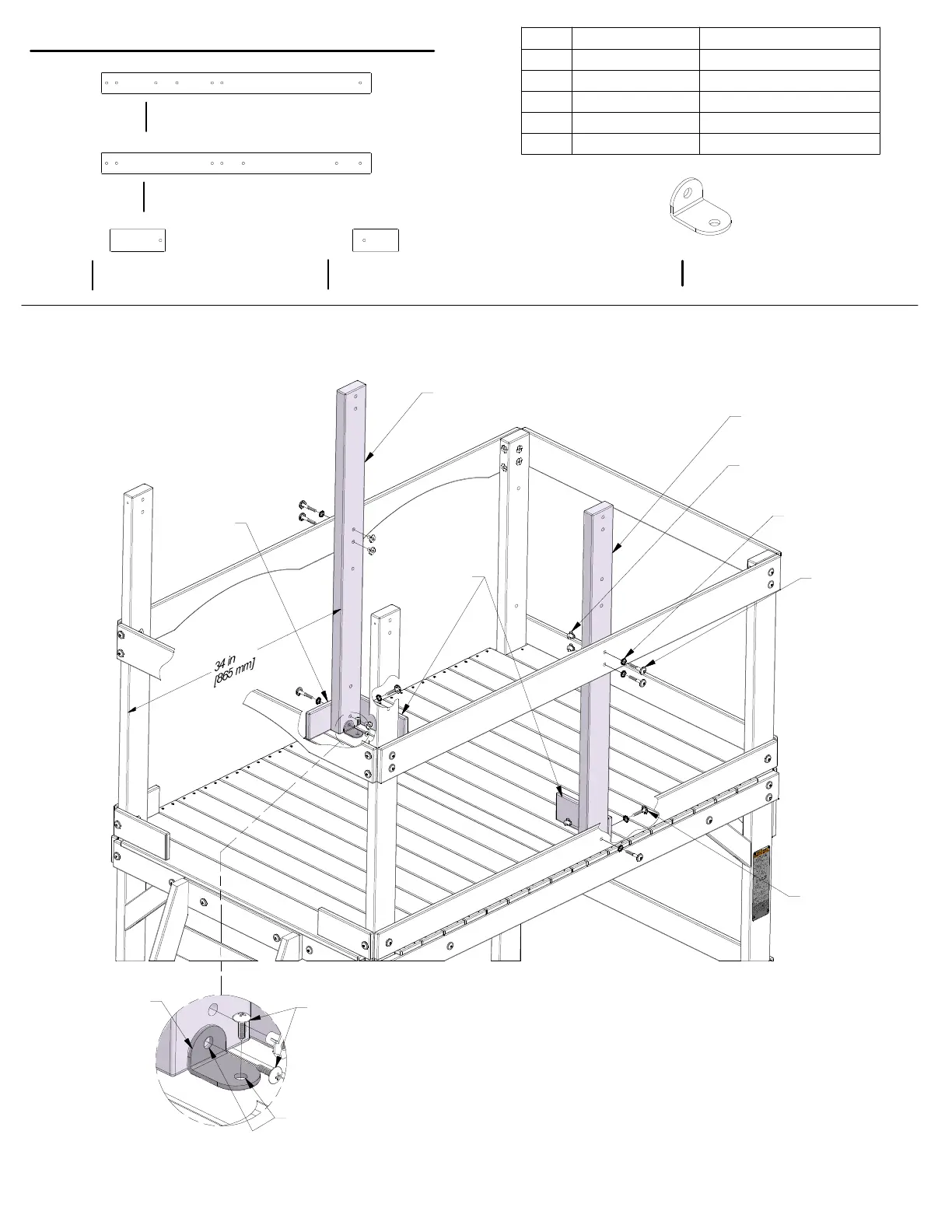

STEP 9 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
6 H100012 BOLT WH 5/16x2
2
H100027
LAG SCREW WH 5/16x2
8 H100030 WASHER LOCK EXT 8x19
6 H100074
T-NUT 5/16
2 H100083 SCREW TAPPING 14x3/4
012 (x6)
BOLT - 2"
030 (x8)
WASHER - 8x19
074 (x6)
T-NUT - 5/16"
027 (x2)
LAG SCREW - 2"
061 (x1)
L BRACKET
083 (x2)
SCREW - 14x3/4"
E4 (x1)
E5 (x1)
M14 (x1)
M13 (x2)
CLUB HOUSE LEG - W4L16771
1 3/8"x3 3/8"x43 3/8" (36x86x1102)
E5
(x1)
CLUB HOUSE LEG - W4L16772
1 3/8"x3 3/8"x43 3/8" (36x86x1102)
E4
(x1)
WALL RAIL - W100585
5/8"x3 3/8"x8 1/4" (16x86x208)
M13
(x2)
WALL RAIL - W100586
5/8"x3 3/8"x6 3/4" (16x86x172)
M14
(x1)
TIP:
INSTALL T-NUTS INTO
BOARDS BEFORE ASSEMBLY
USING BRACKET AS
A GUIDE, DRILL
1/8" (3mm) HOLES.
41
L BRACKET
GREEN 32x51
(x1)
A100061
