Backyard Discovery Aurora - Setup Dimensions and General Information; Setup Dimensions and Assembly Notes

6DIH3OD\=RQH
SAFE PLAY HEIGHT: 14'-3" [4.3 m]
MAXIMUM FALL HEIGHT: 5'-8 1/2" [1.7 m]
General Information:
<RXUVHWKDVEHHQGHVLJQHGDQGHQJLQHHUHGIRUFKLOGUHQRQO\DQGIRUUHVLGHQWLDOXVHRQO\
$PD[LPXPRIOEVSHUFKLOGLVUHFRPPHQGHGIRUSOD\DFWLYLWLHVGHVLJQHGIRULQGLYLGXDOXVH
$PD[LPXPRIOEVSHUFKLOGLVUHFRPPHQGHGIRUSOD\DFWLYLWLHVGHVLJQHGIRUPXOWLSOHFKLOGXVH
$PD[LPXPRIFKLOGUHQLVUHFRPPHQGHGIRUWKLVVZLQJVHW
Swingset Ground Dimension
8'-11 3/8" [2.7m] x 10'-2 7/8" [3.1m]
Safe Play Zone
22'-1 1/4" [6.7m] x 23'-4 7/8" [7.1m]

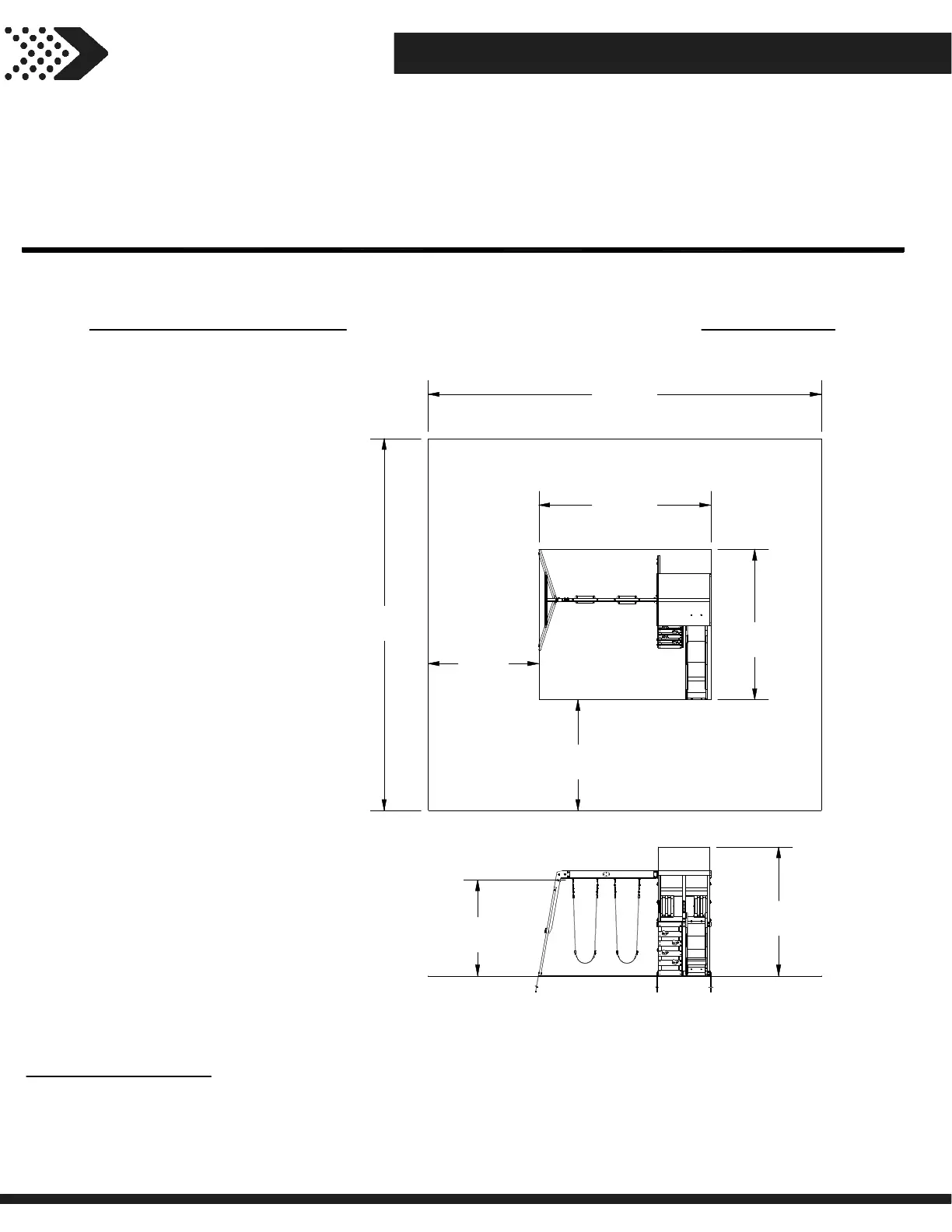

SAFE PLAY AREA DIAGRAM
Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such as a
fence, garage, house, overhanging branches, laundry lines, or electrical wires.
 While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will be difficult and
improper assembly may result. Extra care must be taken to insure the fort is square.
 The safe play area refers to a zone extending 6'-7" (2m) beyond the play product on all sides, including the space above the play product.
Owner's Manual
DǣÞOǢsǼȖƼ^ÞŎsŘǣÞŸŘǣ˓ǣǣsŎEĶɴŗŸǼsǣ
7'-8"
[2.3 m]
5'-8 1/2"
[1.7 m]
10'-2 7/8"
[3.1 m]
8'-11 3/8"
[2.7 m]
23'-4 7/8"
[7.1 m]
22'-1 1/4"
[6.7 m]
6'-7"
[2.0 m]
6'-7"
[2.0 m]
