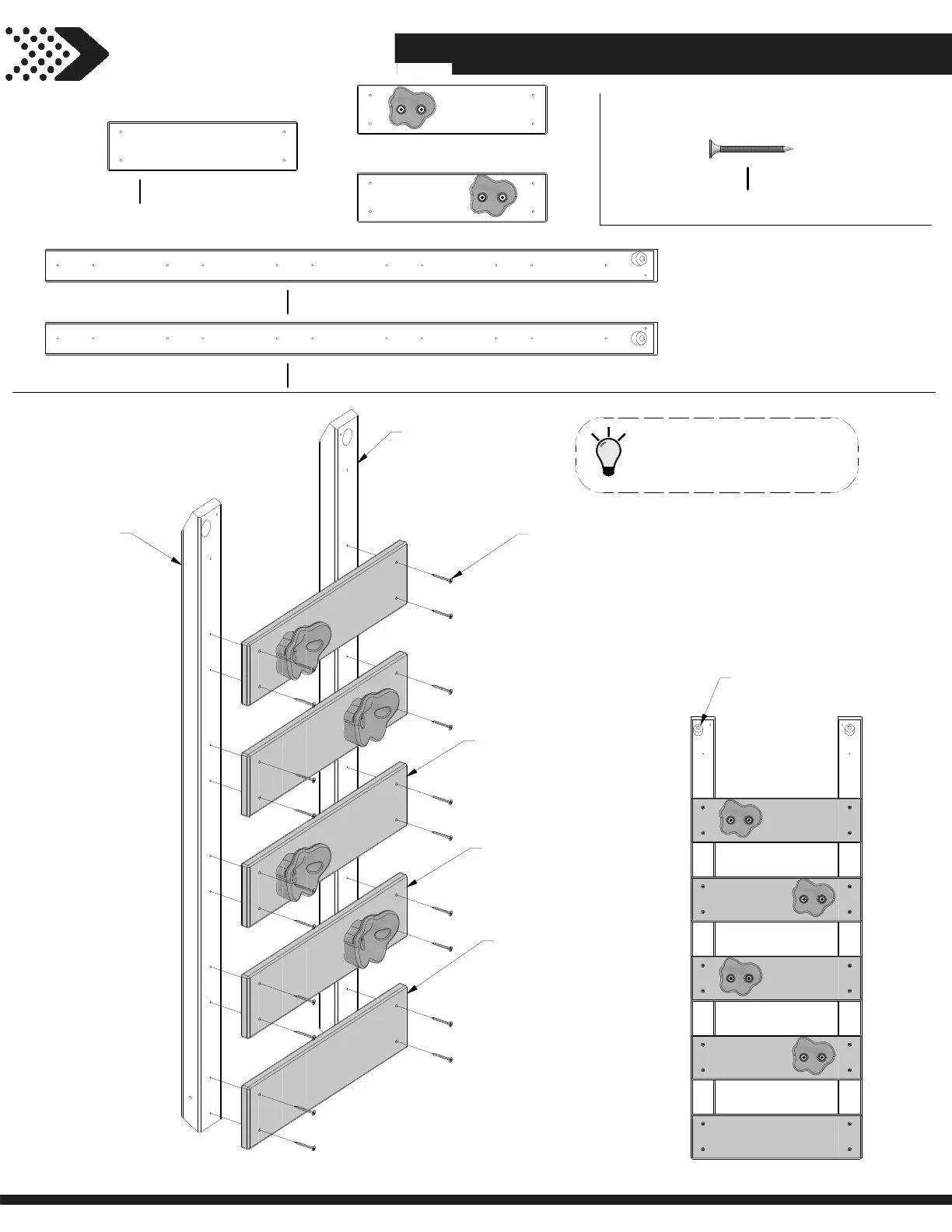

LADDER ASSEMBLY
˟˧˥ ʹɮˡ˟ʺ
ǢNNJrɟ˚ˠˠˀˡ˃
SCREW PFH
8x1 1/2
(x20)
H100086
®ˡ ʹɮˠʺ
ȕƻNJݵËǻ
®ˠ ʹɮˠʺ
ȕƻNJݵËǻ
ĵˢ ʹɮˠʺ
ĵ^^rNJNJȕŗµ
LADDER RUNG - W4L13285
5/8"x4 3/8"x16 7/8" (16x112x430)
L3
(x1)
LEFT RUNG ASSEMBLY (x2)
RIGHT RUNG ASSEMBLY (x2)
UPRIGHT - W4L13284
1 7/16"x2 3/8"x43 3/4" (36x60x1111)
F2
(x1)
UPRIGHT - W4L13283
1 7/16"x2 3/8"x43 3/4" (36x60x1111)
F1
(x1)
TIP:
ALIGN HOLES IN RUNGS
WITH HOLES IN UPRIGHTS.
NOTE HOLE LOCATION
RIGHT RUNG ASSEMBLY (x2)
LEFT RUNG ASSEMBLY (x2)
