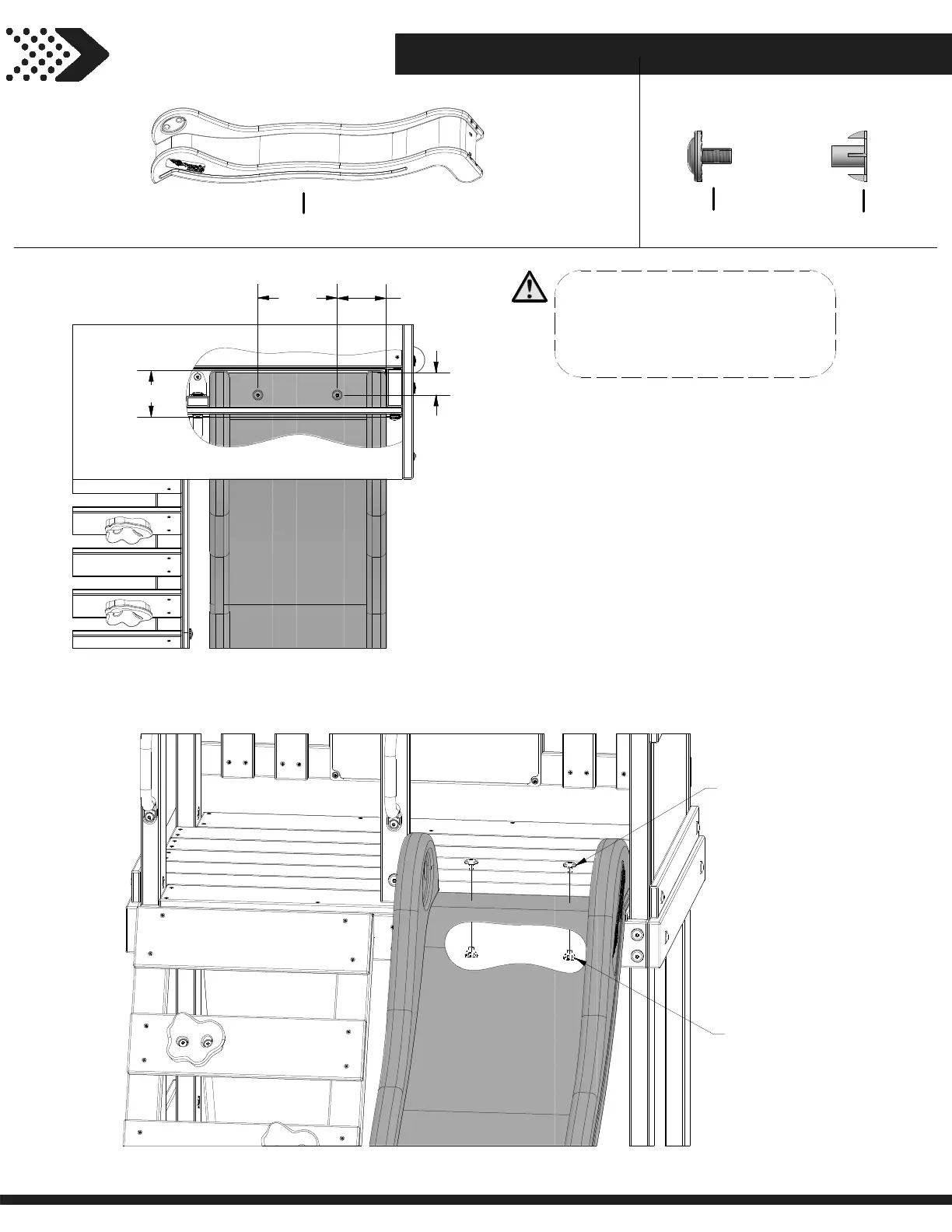

FORT ASSEMBLY
Ǣǻrƻˡˢ
NOTE:
CENTER SLIDE IN OPENING.
USING DIMENSIONS SHOWN AS
A TEMPLATE, DRILL (2) 3/8" HOLES
THROUGH SLIDE & DECK FOR
HARDWARE.
SLIDE
ASSEMBLY
(1)
9208018
7 1/8
4 3/8
4 1/8
2
˟˦ˣ ʹɮˡʺ
ǻ˚ŗȕǻ˚ˤˀˠ˥˃
ˠˠˤ ʹɮˡʺ
Dŷĵǻ˚ˠˀˡ˃
BOLT WH
5/16x1/2
(2)
H100115
T-NUT
5/16
(2)
H100074
