Backyard Discovery GRAYSON PEAK - Page 36

FORT ASSEMBLY

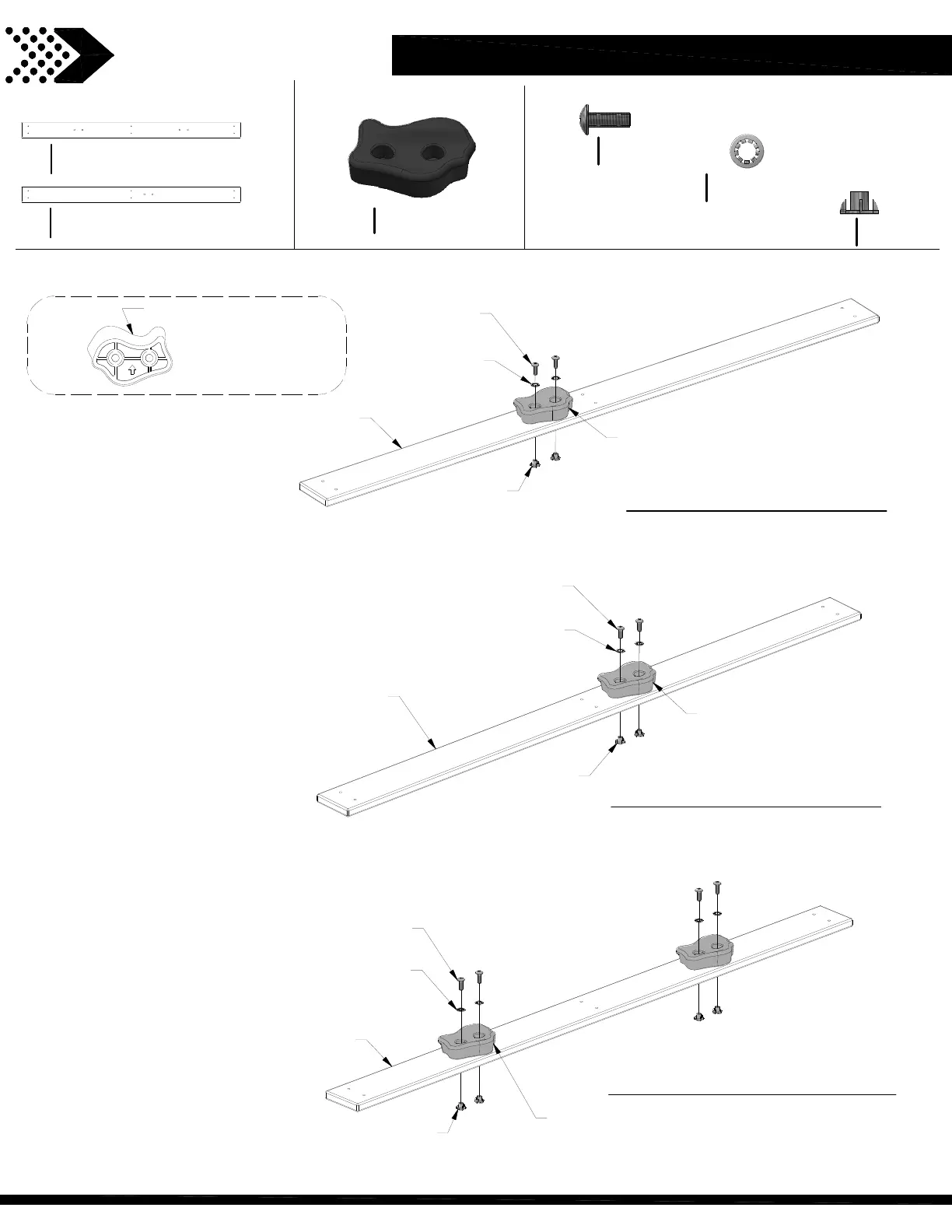

STEP 12
M3 (x1)
ROCK WALL BOARD
M3 (x1)
ROCK WALL BOARD
M2 (x1)
ROCK WALL BOARD
037 (x1)
GREEN HC ROCK #2
037 (x1)
GREEN HC ROCK #2
037 (x2)
GREEN HC ROCK #2
063 (x2)
BOLT - 3/4"
108 (x2)
WASHER - 8x15
072 (x2)
T-NUT - 1/4"
063 (x2)
BOLT - 3/4"
108 (x2)
WASHER - 8x15
072 (x2)
T-NUT - 1/4"
063 (x4)
BOLT - 3/4"
108 (x4)
WASHER - 8x15
072 (x4)
T-NUT - 1/4"
LEFT ROCK - SUB ASSEMBLY (x1)
LEFT SIDE OF 'M3'.
RIGHT ROCK - SUB ASSEMBLY (x2)
RIGHT SIDE OF 'M3'.
DOUBLE ROCK - SUB ASSEMBLY (x3)
ROCK WALL BOARD - W4L13759
5/8"x3 3/8"x48 7/8" (16x86x1243)
M2
(x3)
ROCK WALL BOARD - W4L13760
5/8"x3 3/8"x48 7/8" (16x86x1243)
M3
(x3)
GREEN HC ROCK #2
(x9)
A6P00037
BOLT PTH
1/4x3/4
(x18)
H100063
T-NUT
1/4
(x18)
H100072
WASHER LOCK INT
8x15
(x18)
H100108
TIP:
INSTALL T-NUTS IN WOOD FIRST
FINGER GRIPS UPWARD
36
