PAGE 24

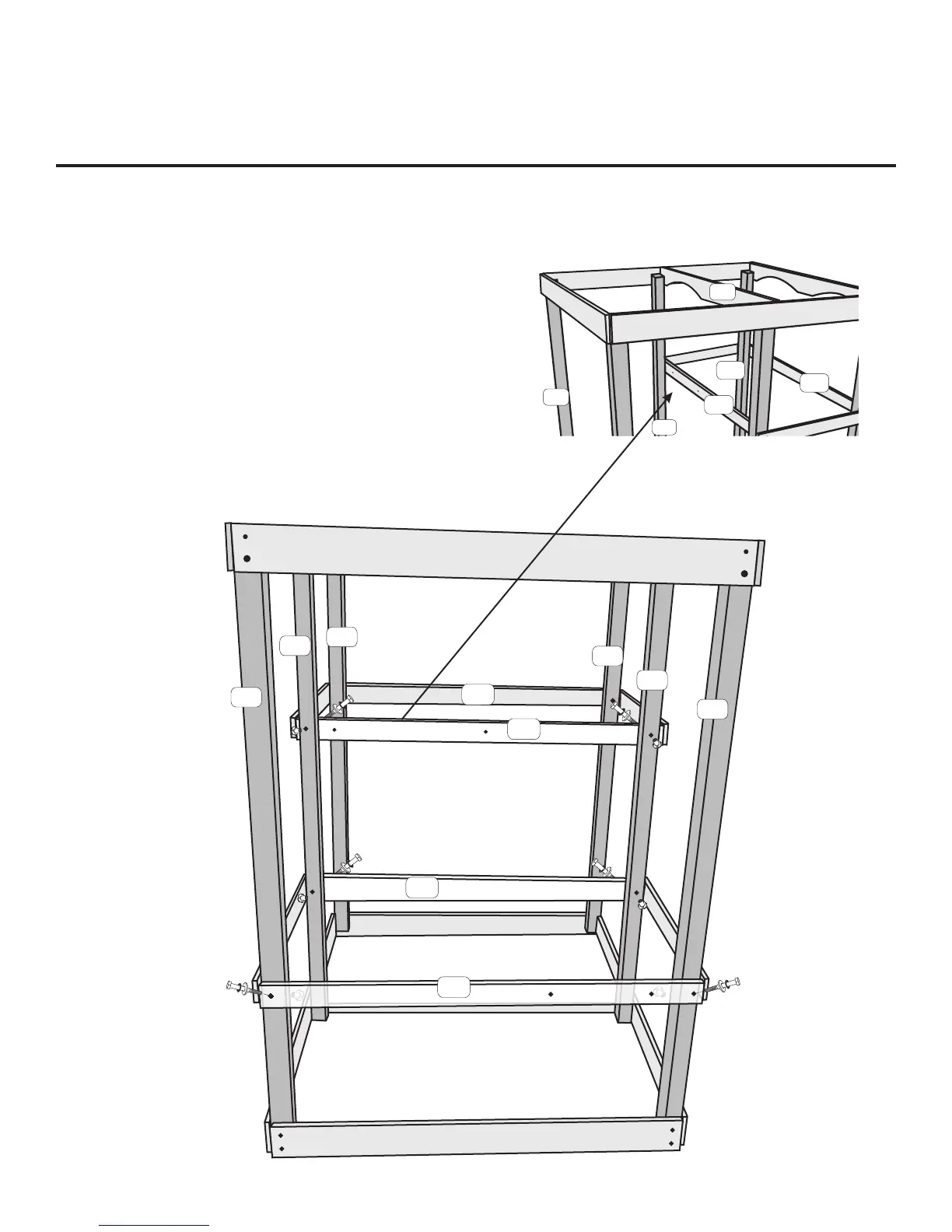

STEP 4
Attach H5 Floor Rail to B2 Middle Tower Legs between B2
and B1 Tower Legs. Also note position of holes in H5 so they
are on the side of the archway in G5 Rail above. Fasten using
5/16”x 4” Hex Bolts, 5/16” Lock Washers,
and 5/16” Spike T-Nuts.
Attach H5 Floor Rail to B3 Back Tower Legs so the holes are to
the Left Side Back with 5/16”x 4” Hex Bolts, 5/16” Lock
Washers, 5/16” Flat Washers and 5/16” Spike
T-Nuts.
Attach H6 Floor Rail to B2 Middle Tower Legs between B2
and B1 Tower Legs with 5/16”x 4” Hex Bolts, 5/16” Lock
Washers, and 5/16” Spike T-Nuts.
Fender Washers
Fender Washers
B1
B2
B3
B1
B2
B3
H5
H5
H4
H6
Right Left
B3
B2
B1
H4
H5
G5
ITEMS NEEDED
(2) H5 Floor Rail
(1) H6 Floor Rail
HARDWARE NEEDED
(6) 5/16” x 4” Hex Bolt
(6) 5/16” Spike Tee Nut
(6) Fender Washer
(6) 5/16” Lock Washer
