PAGE 32

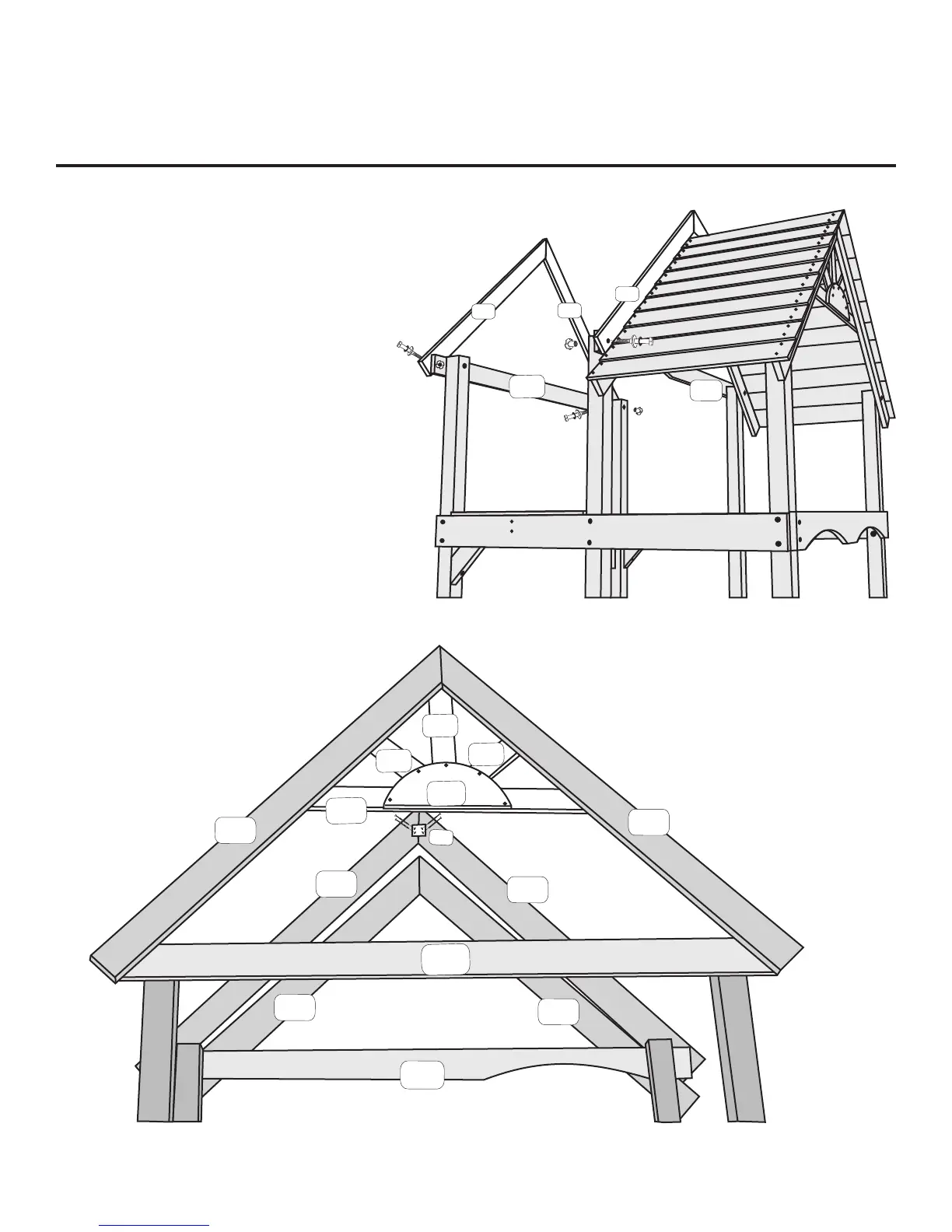

STEP 12
Attach H8 Club House Rafters to H1 and H2 Wall
Rails with 5/16”x 2” Hex Bolts, 5/16” Lock
Washers, Fender Washers into 5/16” Spike T-Nuts
inserted in earlier step.
Attach a N10 Gable Board to peak of H8 Rafters
using 1-1/4” Wood Screws.
Now attach N8, N3 and two (2) N9 Gable Boards
and K1 Gable Moon to H8 Rafters on back side of
structure using 1-1/4” Wood Screws as before on
Step #10.
H8
H8
H8
N9
N3
K1
N9
N8
H1
H2
H8
H8
H8
H8
H10
H10
H1
H2
N10
ITEMS NEEDED
(4) H8 Club House Rafters
(1) N10 Gable Board
(1) N8 Gable Board
(1) N3 Gable Board
(2) N9 Gable Board
(1) K1 Gable Moon
HARDWARE NEEDED
(4) 5/16” x 2” Hex Bolt
(4) 5/16” Spike Tee Nut
(4) Fender Washer
(4) 5/16”Lock Washer
(19) 1 ¼” Wood Screws
