PAGE 33

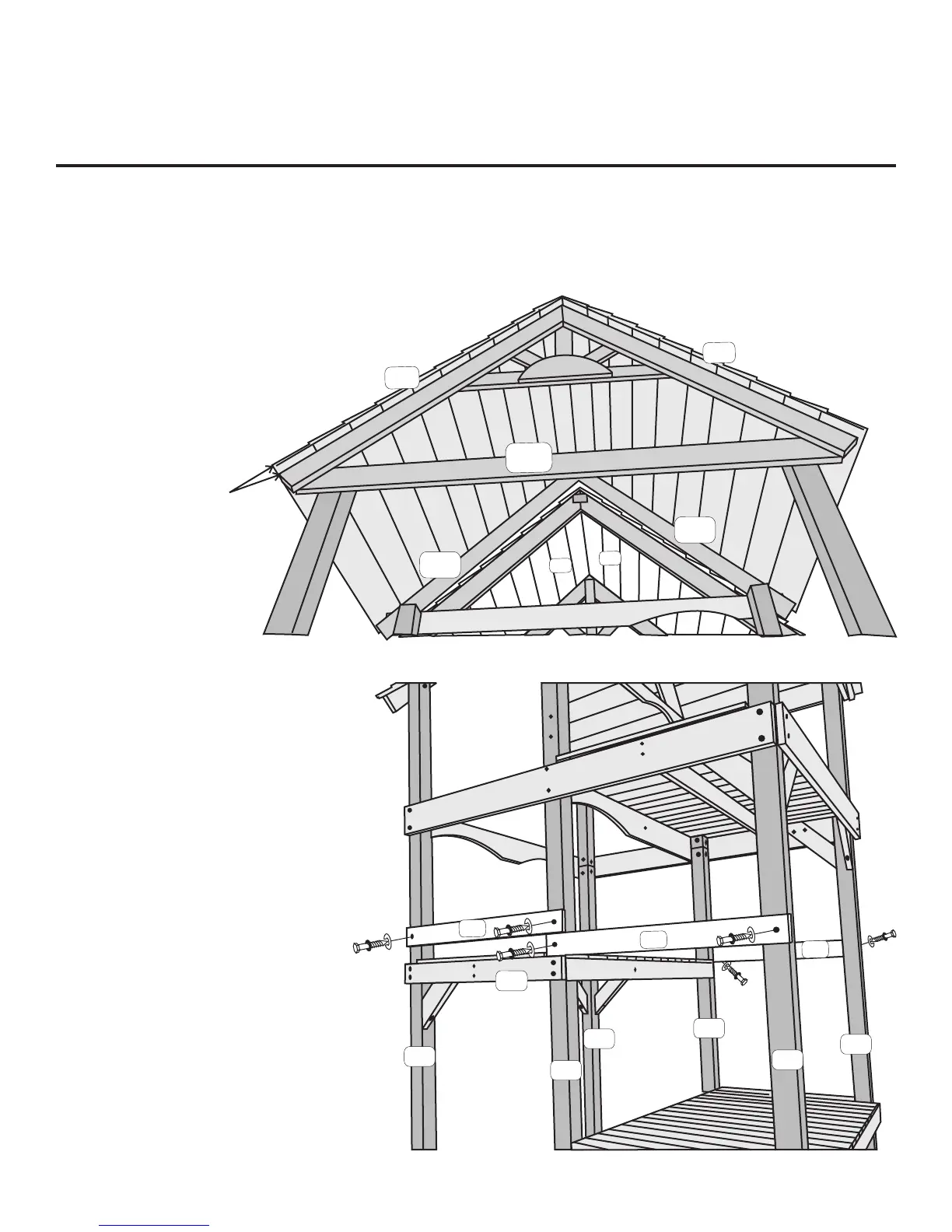

STEP 13
Attach a R1 Roof Board to peak of H8 Rafters with a 1-1/2”
overhang on each end with 1-1/2” Wood Screws. Then, attach a
R1 Roof Board on opposite side flush with top of R1 attached
previously. Finish Roof attaching nine (9) more R1 Roof Boards
to each side.
STEP 14
Attach M5 Wall Rails to Left and Right side of
structure by setting on Top of H11 Floor Rail
and leveling across B2 and B3 Tower Legs
and Fasten using 5/16”x 2” Lag Screws,
5/16” Lock Washers and Washers.
( Pilot drill with 3/16”drill bit )
Now attach two (2) more M5 Wall Rails on
Left and Right side by setting on top of M5
Wall Rails attached previously and level
across B2 and B1 Tower Legs using
5/16”x 2” Lag Screws, Washers, and
Washers.
Fender
Lock
Fender
R2R
R2L
R1
R1
1-1/2”
H2
H8
H8
M5
M5
M5
B1
B1
B2
B2
B3
B3
H1
1
Other M5
not shown.
ITEMS NEEDED
(20) R1 Roof Boards
(4) M5 Wall Rails
HARDWARE NEEDED
(8) 5/16” x 2” Lag Screws
(8) Fender Washer
(8) 5/16” Lock Washer
(80) 1 ½” Wood Screw
To Next Page
