Backyard Discovery Highlander 6010 - Page 36

PAGE 34
M7
M2
B3
B2
B3
BOARD
FLAT
WASHER
BOLT
LOCK
WASHER
BOARD
BARREL
NUT
5/16"
5/16"
M2
M1
3”
B2
B2
H5
M5 M5
BOARD
FLAT
WASHER
BOLT
LOCK
WASHER
BOARD
BARREL
NUT
5/16"
5/16"
Diagram 1
Diagram 2
Diagram 3

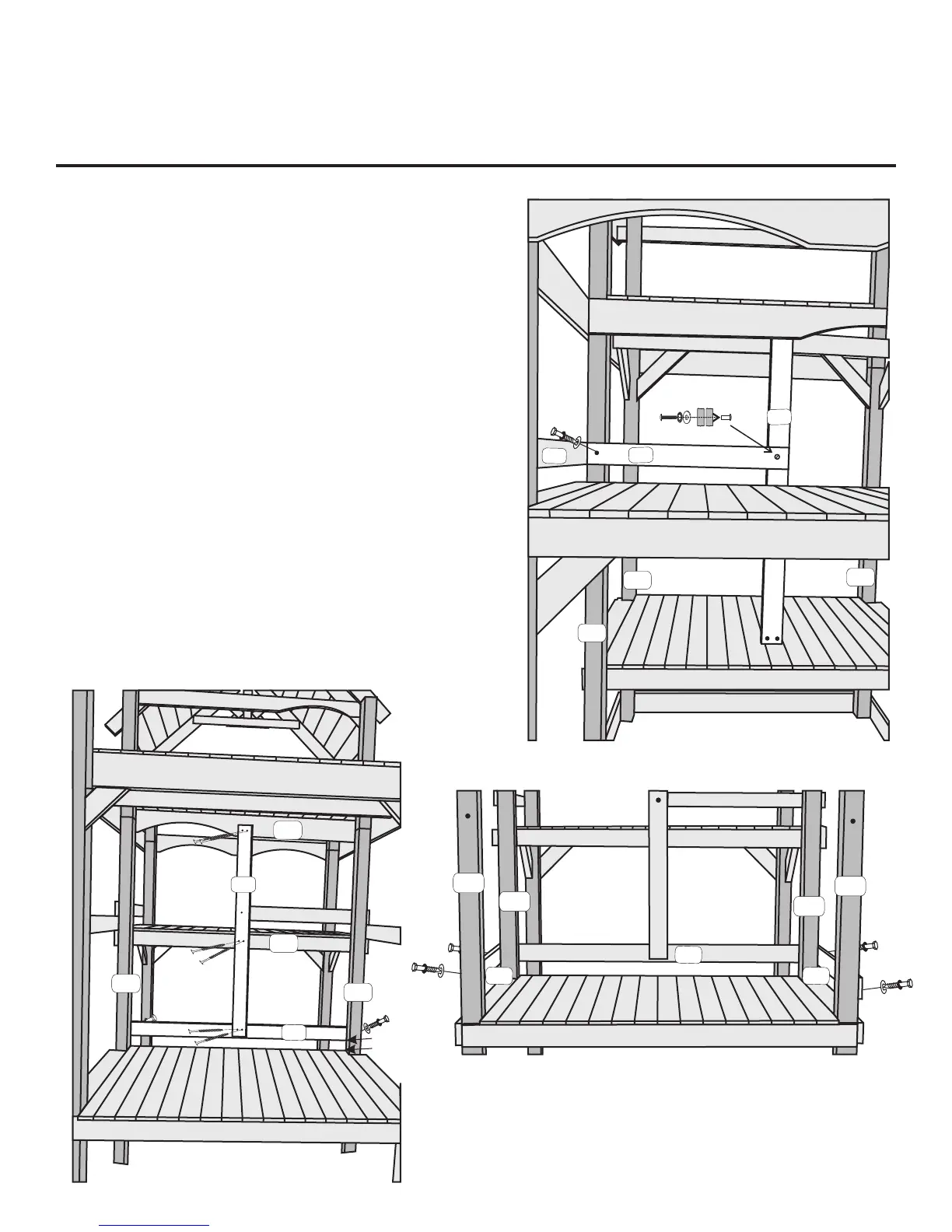

STEP 15
Pilot Drill using 3/16” Drill Bit and attach M7 Wall Rail to B2
Middle Tower Leg flush with M5 (left side) with
5/16”x 2” Lag Screw, 5/16” Lock Washer, and
Washer.
Attach M2 Wall Board to M7 with ¼”x 1” Phillips Truss
Head Bolt with 5/16” Lock Washer, Washer and ¼”
Barrel Nut.
Measure up 3” from top of floor and mark B2 Tower Legs and
attach M1 Wall Rail to B2 Tower Legs with
5/16”x 2” Lag Screws, 5/16” Lock Washers and
Washers. ( Pilot drill with 3/16” drill bit)
Now, plumb M2 Wall Board and secure to M1 and G5 with 1-
1/4” Wood Screws and to H5 Floor Rail with
1-1/4” Wood Screws.
Flush a M5 Wall Rail with M1 Wall Rail on both left and right
side of structure and secure to B2 and B3 Tower Legs with
5/16”x 2” Lag Screws, 5/16” Lock Washers and
Washers.
( Pilot drill with 3/16” drill bit )
Fender
Fender
Fender
Fender
Diagram 1
Diagram 2
Diagram 3
M5
G5
B2
B2
B3
B3
M1
ITEMS NEEDED
(1) M7 Wall Rail
(1) M2 Wall Board
(1) M1 Wall Rail
(2) M5 Wall Rail
HARDWARE NEEDED
(7) 5/16” x 2” Lag Screw
(8) Fender Washer
(8) 5/16” Lock Washer
(1) ¼” x 1” Phillips Truss Head Bolt
(1) ¼” Phillips Barrel Nut
(6) 1 ¼” Wood Screws
