PAGE 35

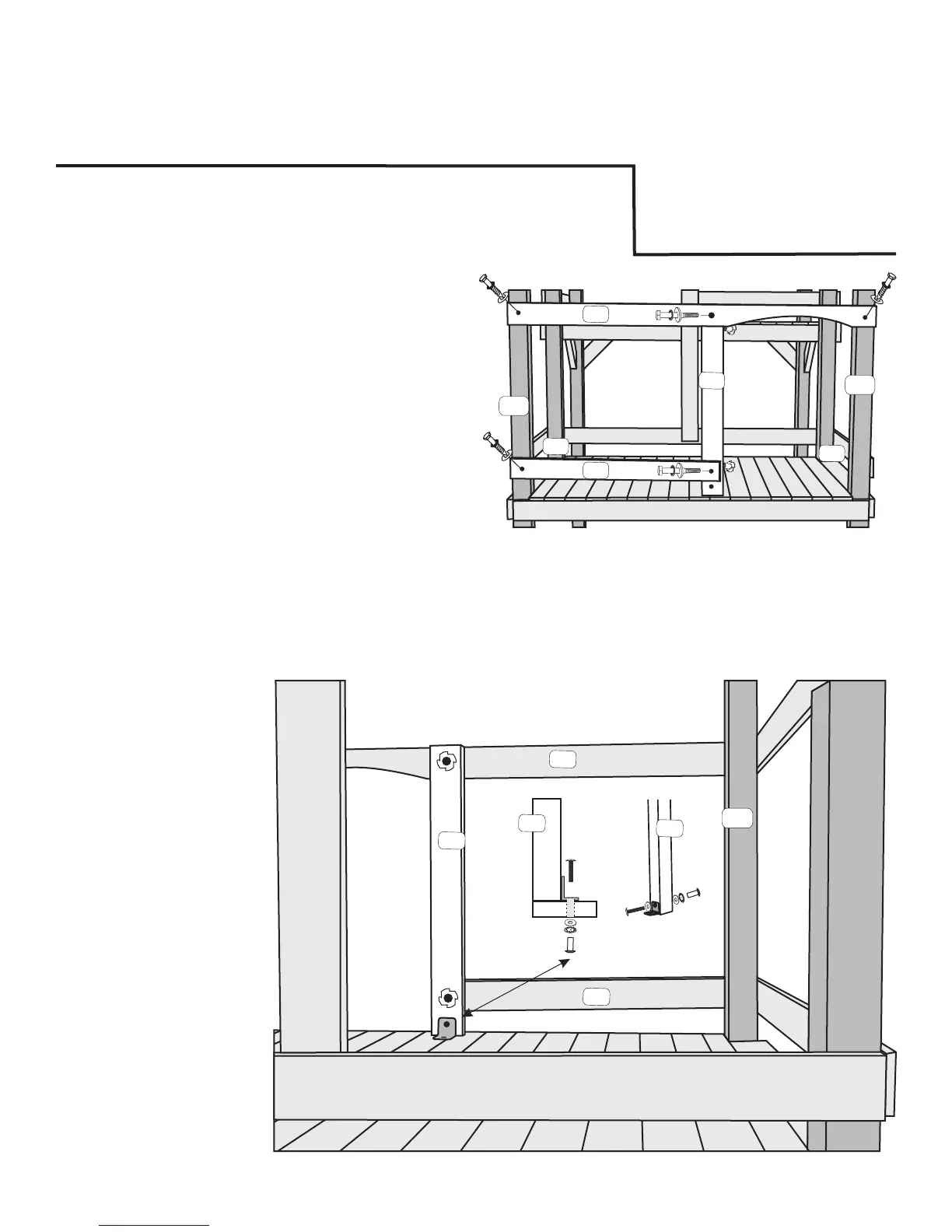

STEP 16
Flush H3 Wall Rail with M5 Wall Rails and attach to B3 Back
Tower Legs with 5/16”x 2-3/8” Lag Screws, 5/16” Lock
Washers and Washers. ( Pilot drill with 3/16” drill bit
note position of arch)
Attach H13 Wall Rail to H3 Wall Rail with 5/16”x 2” Hex
Bolt, 5/16” Lock Washers and Washers and 5/16”
Spike T Nut.
Attach M4 Wall Rail to H13 Wall Rail with 5/16”x 1-3/4 Hex
Bolt, 5/16” Lock Washer, Washer and 5/16” Spike T-
Nut and to B3 Back Tower Leg with 5/16”x 2” Lag Screw,
5/16” Lock Washer and Washer.
Position Y30-40G L Bracket to H13 and use hole in bracket to
mark floor. Drill thru floor board with 3/8” drill bit and finish
securing H13 Wall Rail with Y30-40G using ¼”x 1” Phillips
Truss Head Bolt, 5/16” Lock Washer, Washer and ¼”
Barrel Nut and to Floor with ¾” Truss Head Bolt, 5/16” Lock
Washer, Washer and 1/4” Barrel Nut.
Fender
Fender
Fender
Fender
Fender
Fender
H3
M4
H13
M5
M5
B3
B3
LOCK
WASHER
BARREL
NUT
BOLT
FLOOR
FENDER
WASHER
B3
H13
H13
H13
M4
H3
ITEMS NEEDED
(1) H3 Wall Rail
(1) H13 Wall Rail
(1) M4 Wall Rail
HARDWARE NEEDED
(1) Y30-40G L Bracket
(1) ¼” x ¾” Phillips Truss Head Bolt
(1) ¼” x 1” Phillips Truss Head Bolt
(2) ¼” Phillips Barrel Nut
(2) 5/16” x 2 3/8” Lag Screw
(7) Fender Washer
(7) 5/16” Lock Washer
(1) 5/16” x 2” Hex Bolt
(1) 5/16” x 2” Lag Screw
(1) 5/16” x 1 ¾” Hex Bolt
