Backyard Discovery Highlander 6010 - Page 39

PAGE 37

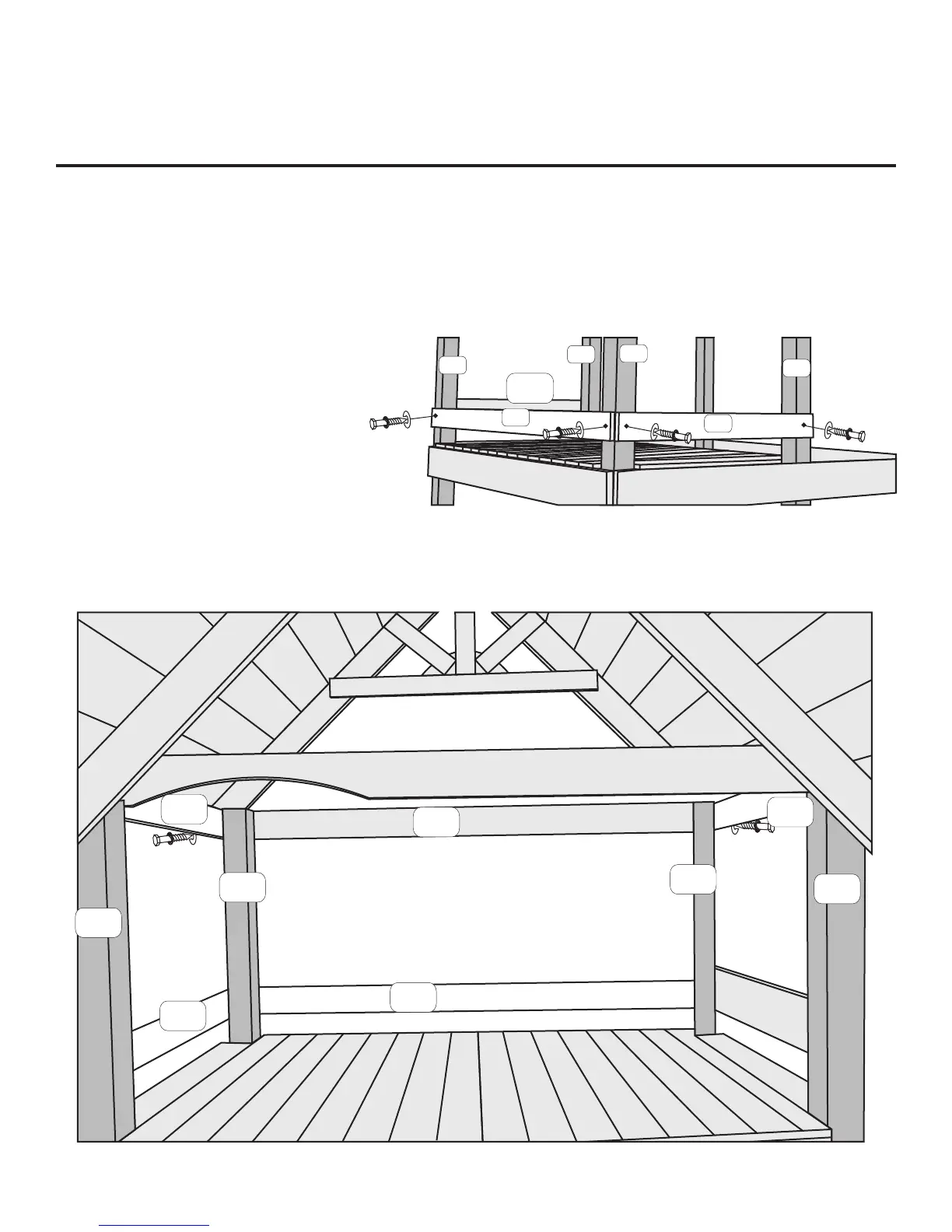

STEP 18
(Pilot drill with 3/16” drill bit when
using Lag Screws)
Attach M1 Wall Rail to B4 and B5 Club
House Legs with 5/16”x 2” Lag Screws,
5/16” Lock Washers and Washers
flush with bottom of G8.
Now attach M5 Wall Rail to B5 Clubhouse
Legs on left side of Structure using
5/16”x 2” Lag Screws, 5/16” Lock
Washers and Washers.
Now, attach a M5 Wall Rail Flush with Top
of Clubhouse Legs on both the left and
right side of structure with 5/16”x 2” Lag
Screws, 5/16” Lock Washers and
Washers.
Fender
Fender
Fender
H2
M1
M5
B4
B5
B5
B4
M5
M5
B4
B5
B4
B5
Top Floor
M1
M5
G8
ITEMS NEEDED
(1) M1 Wall Rail
(3) M5 Wall Rail
HARDWARE NEEDED
(8) 5/16” x 2” Lag Screw
(8) Fender Washer
(8) 5/16” Lock Washer
