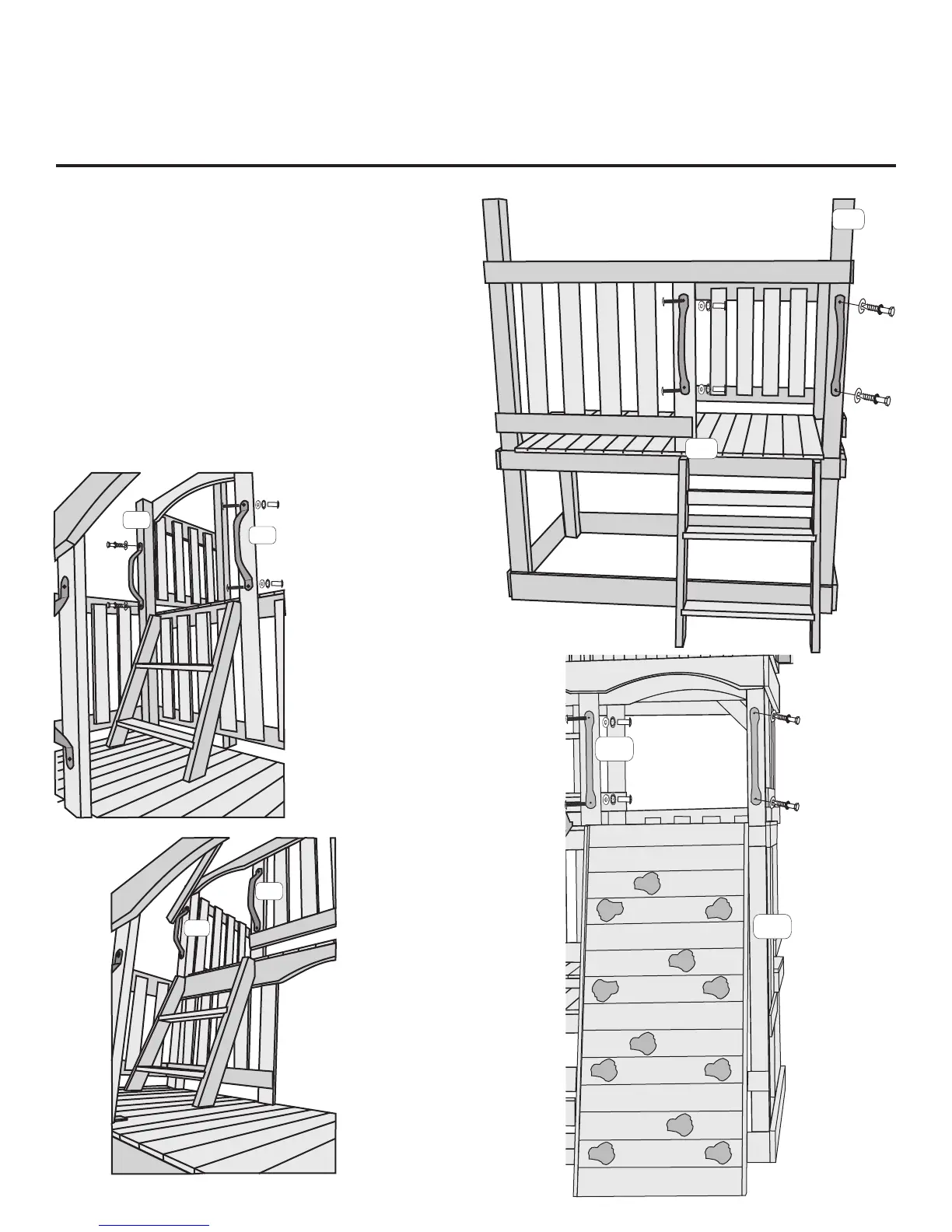

STEP 32
Attach Y10-16.5G Metal Grips to H16 Front Wall
Rail (Figure 1) using ¼”x ¾” Phillips Truss Head
Bolts, 5/16” Lock Washers, Fender Washers and
¼” Barrel Nuts. Position another Y10-16.5G
Grip on B1 Front Tower Leg and attach using
5/16”x 1-1/2” Lag Screws, 5/16” Lock Washers
and Fender Washers. Now attach Y10-16.5 Grips
to H13 Back Wall Rail (Figure 2) and B3 Back
Tower Leg and H14 Top Wall Rail and B5
Clubhouse leg with same Hardware used on
Grips installed on front of Tower.
PAGE 51
B1
B3
H13
H16
M2
Figure 1
Figure 2
B5
ITEMS NEEDED
(8) Y10-16.5G
HARDWARE NEEDED
(8) 5/16” x 1 ½” Lag Screw
(8) ¼” Phillips Barrel Nut
(8) ¼” x ¾” Phillips Truss Head Bolt
(16) Fender Washer
(16) 5/16” Lock Washer
H14
B2
To Next Page
